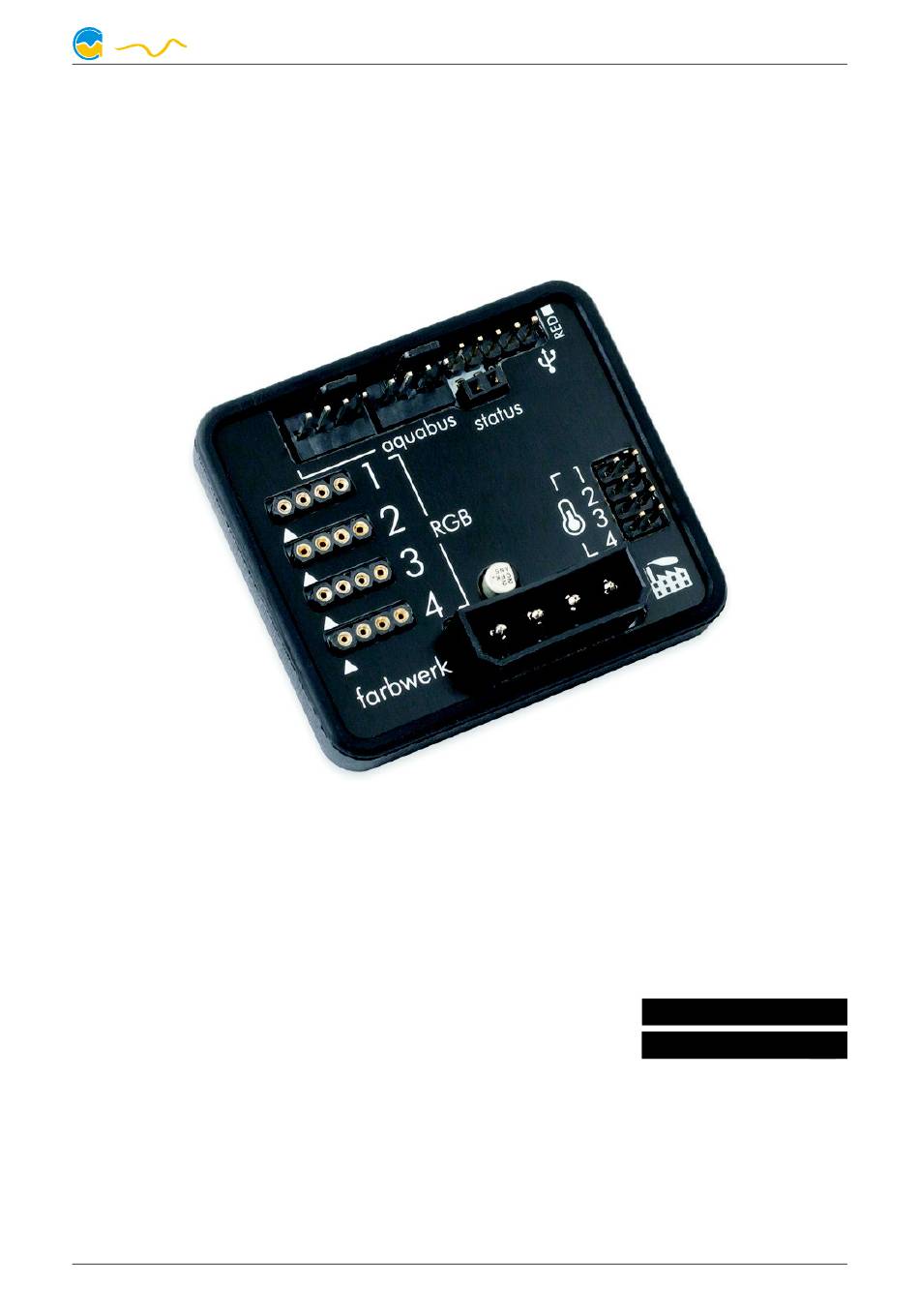

FARBWERK
ENGLISH: PAGE 1
DEUTSCH: SEITE 25
- 1 -
Advertisement
Table of Contents
Related Manuals for Aqua Computer farbwerk
Summary of Contents for Aqua Computer farbwerk
- Page 1 DEUTSCH: SEITE 25 Current as of April 2020 All information contained in this manual is subject to change without prior notice. All rights reserved. © 2014-2020 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 2: Table Of Contents
9.1. Sensor mode................13 9.2. Offset..................13 9.3. Software sensors.................13 10. RGB controller configuration.............15 10.1. Output mode................15 10.2. LED type..................15 10.3. Color settings................15 10.4. Temperature controlled mode............15 - 2 - Aqua Computer GmbH & Co. KG © 2014-2020 Gelliehäuser Str. 1, 37130 Gleichen... - Page 3 16.3. Using the Android demo app.............23 17. Technical details and care instructions........23 17.1. Technical details...............23 17.2. Care instructions...............23 17.3. Waste disposal.................24 17.4. Contact Aqua Computer............24 © 2014-2020 Aqua Computer GmbH & Co. KG - 3 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 4: Preface
The farbwerk controller can be installed inside the PC case using the supplied screws and nuts. In order to access the mounting holes, bend the rubber insulation away from the top cover of the farbwerk controller and remove the top cover. Re- install the top cover afterwards. -

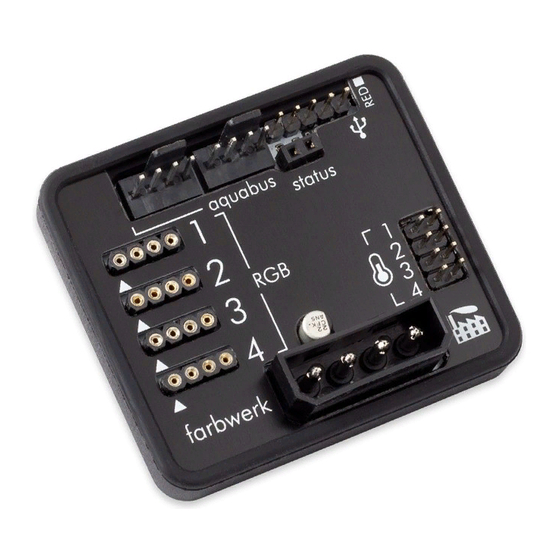

Page 5: Electrical Connections
The corresponding connector on the motherboard is usually a 9 pin connector with two independent USB ports. Both rows of 4/5 pins can be used to connect an © 2014-2020 Aqua Computer GmbH & Co. KG - 5 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 6: Aquabus 1/2
Connector for communication with other Aqua Computer devices. Use a compati- ble aquabus cable (not included in delivery, article no. 53122/53162) to connect the farbwerk controller board to a suitable connector of a compatible device, for example an aquaero. USB and aquabus interface can be used at the same time. -
Page 7: Aquasuite Software
List elements may be minimized or maximized for easier access by clicking the title bar. The title bars may contain various symbols that will be explained in the follow- ing chapter. © 2014-2020 Aqua Computer GmbH & Co. KG - 7 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 8: Symbols In The Headlines
Creating new overview pages and activating edit mode In order to create a new overview page, click the plus symbol in the headline “Overview pages”. - 8 - Aqua Computer GmbH & Co. KG © 2014-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 9: Adding New Elements
Gauge: Displays the value as a analog gauge. ● All display styles offer extensive configuration options, additionally statistical data such as minimum, maximum and average can be displayed. © 2014-2020 Aqua Computer GmbH & Co. KG - 9 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 10: Log Data Chart
If a device with identical serial number is found on the computer, no changes are made. - 10 - Aqua Computer GmbH & Co. KG © 2014-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 11: Data Quick View And Data Log (Aquasuite)
This includes data from connected USB devices as well as hardware data supplied by the Aqua Computer background service. Displayed data may be filtered using the text box next to the magnifier icon, a chart shows the develop- ment over a maximum of ten minutes. -
Page 12: Manual Data Export
“Log settings” of this manual. Select the time period to be exported - 12 - Aqua Computer GmbH & Co. KG © 2014-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 13: Automatic Data Export
Software sensors Four available software temperature sensors can be used to transfer temperature sensor readings to the farbwerk controller from the computer by USB connection or from an aquaero 5/6 by aquabus connection. For each software sensor, a scale factor and an offset may be configured for ma- nipulation of the displayed sensor value. - Page 14 Transmission of sensor data via USB interface During installation of the aquasuite, the background service “Aqua Computer Ser- vice” is also installed. This service supplies various data from PC components and imported data from aquasuite web, additionally sensor data provided by third par- ty software can be accessed.
-
Page 15: Rgb Controller Configuration
Select “Outputs” from the device list below the “aquaero” entry. From the “aquabus: farbwerk x, output y” section, select the appropriate farbwerk to receive sensor data. Select the “Transmit sensor data to farbwerk” mode and the data source to be transmitted. The assignment to the four software sensors of the farbw- erk is predetermined. -
Page 16: Fading Effect
Profiles Profiles Profiles Select “Profiles” from the device list below the “farbwerk” entry. The profile management can be used to to save four configurations as profiles and activate them manually or automatically. Profile manage- ment is a software feature of the aquasuite and requires a USB connection to the farbwerk. -
Page 17: Automatic Profile Selection
Before connecting farbwerk devices to an aquaero 5/6 controller, each farbwerk device has to be configured to an individual aquabus address. You may skip this step if only one farbwerk device is connected. Addresses 20 and 21 are available for farbwerk devices. -
Page 18: Playground (Aquasuite)
Buttons in the upper window area can be used to switch between global profiles. Alternatively, the profile icon in the title bar of the aquasuite window or a profile icon in the system tray may be used. - 18 - Aqua Computer GmbH & Co. KG © 2014-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 19: Hotkeys
Click the entry “aquasuite web” to publish data on the internet or import data from the internet. The server for this service is operated by Aqua Computer and provid- ed for use with the aquasuite, without warranty for error free operation or perma- nent availability. -
Page 20: Data Access
Data import Data import To import a data set from the Aqua Computer server, the “access key” of the data set is required. The access key can be found in the aquasuite on the computer providing the data in the “Data access” section. -
Page 21: Units
Service administration Service administration The background service configures special USB settings for all connected Aqua Computer devices, provides hardware data, software sensors, pro- file management and aquasuite web and should therefore always be ac- tive. The hardware monitoring features of the background service can be disabled for specific categories if errors occur. -
Page 22: Bluetooth Demo App For Android
“Register key” button, the update service period is permanently assigned to the selected device and stored on the Aqua Computer update server. The key will not have to be re-entered after re-installation of the software or transfer of the de- vice to another computer, but transferring the update service period to another de- vice is not possible. -
Page 23: Bluetooth Pairing
See chapter 12.1. for reference. Tap the farbwerk device you want to pair to your mobile phone and enter the pair- ing key for the farbwerk device. Factory default key is “1234”, see chapter 12.4. -
Page 24: Waste Disposal
24/7. To get in direct contact with our customer support team, we offer several options: Email: support@aqua-computer.de Postal address: Aqua Computer GmbH & Co. KG Gelliehäuser Str. 1 37130 Gleichen Germany Tel: +49 (0) 5508 9749290 (9-16 h CET, German and English language) - 24 - Aqua Computer GmbH &...
