5. 5. 5. 5. Electrical connections

Electrical connections Electrical connections Electrical connections

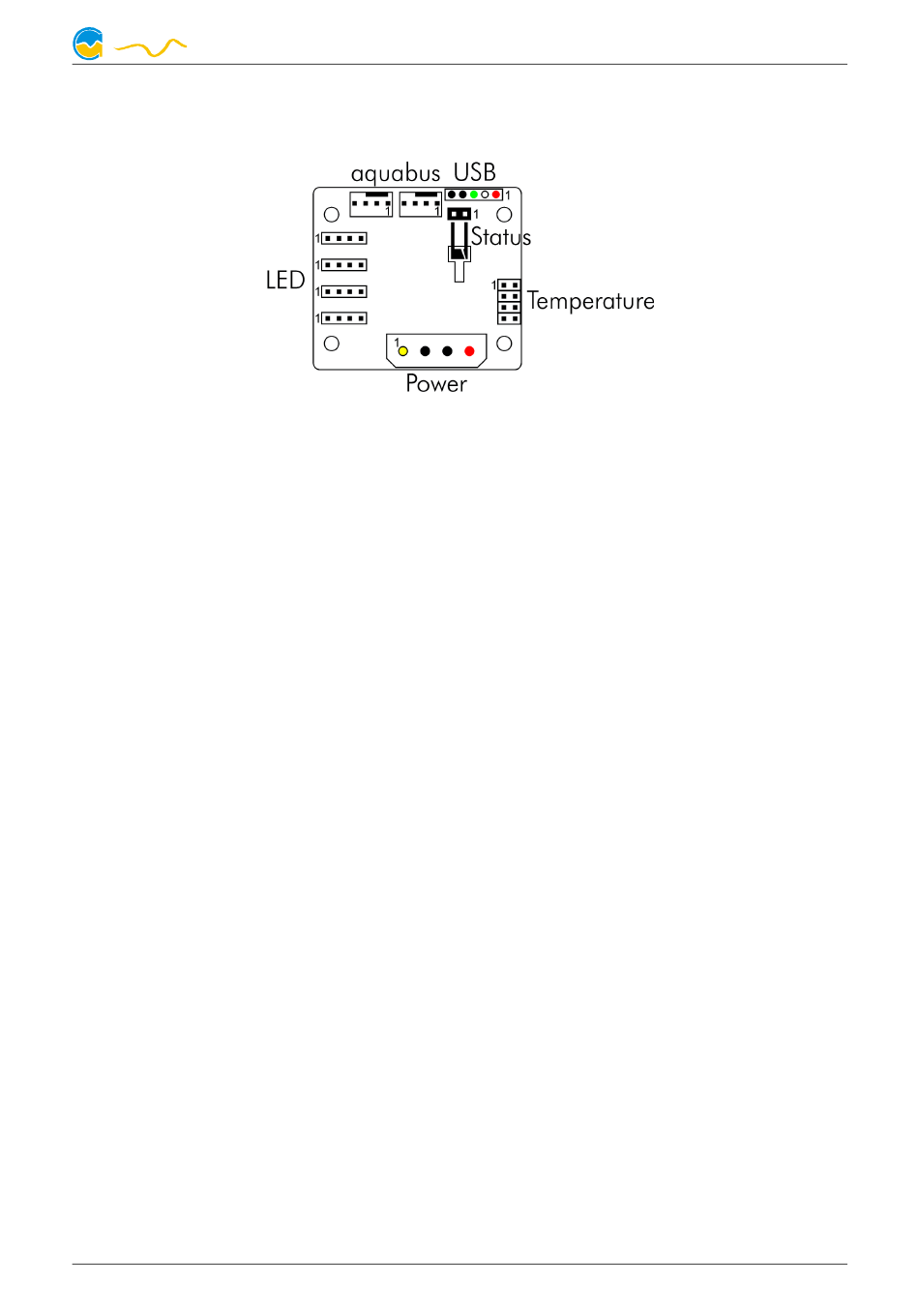

5.1. Connector overview

5.1. Connector overview
5.1. 5.1. Connector overview Connector overview
ATTENTION: Completely turn off your power supply or disconnect the mains pow-
er cord from the wall outlet before connecting or disconnecting any cables to/from
the device!

5.2. Power supply

5.2. 5.2. 5.2. Power supply Power supply Power supply
Connect a power plug of your PC's power supply unit to this connector. Do not
use excessive force but double check the polarity of the plug if you are having
trouble to connect.
Pin assignment: Pin 1: +12 V
Pin 2: GND
Pin 3: GND
Pin 4: +5 V
5.3.

5.3. LED output 1-4

LED output 1-4
5.3. 5.3. LED output 1-4 LED output 1-4
Connect up to four RGB LED strips to these outputs. Maximum current rating for
each separate color is 2.5 A at 12 V (corresponding to 30 Watts) and a total max-
imum combined current of 8 A at 12 V for all twelve color channels (correspond-
ing to 96 Watts total).
The LED outputs are not short-circuit proof!
Pin assignment: Pin 1: +12 V
Pin 2: GND blue (or green)
Pin 3: GND red
Pin 3: GND green (or blue)
5.4.

5.4. USB

USB
5.4. 5.4. USB USB
This connector is used for USB communication to the PC and for power supply.
Connect to an internal USB header of your motherboard. Take special care to
make sure the pin alignment matches your motherboard!
The corresponding connector on the motherboard is usually a 9 pin connector
with two independent USB ports. Both rows of 4/5 pins can be used to connect an
