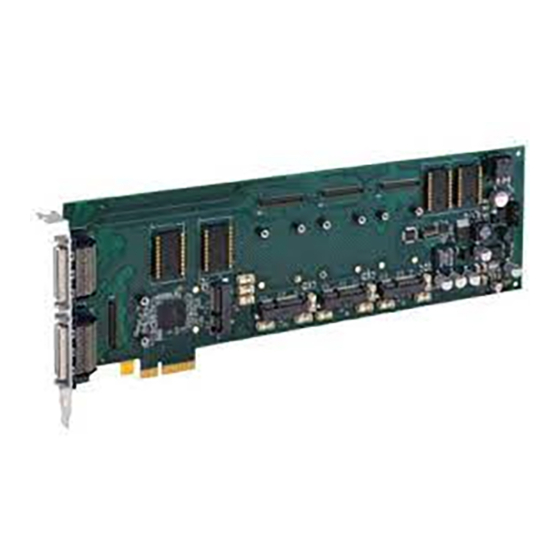

Acromag AcroPack AP445 Series User Manual

32-channel isolated digital output module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the Acromag / Xembedded / Xycom AP408 at our website:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AcroPack AP445 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acromag AcroPack AP445 Series

Summary of Contents for Acromag AcroPack AP445 Series

  • Page 1 (217) 352-9330 | Click HERE Find the Acromag / Xembedded / Xycom AP408 at our website:...
  • Page 2 32-Channel Isolated Digital Output Module USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 295-0310 Fax: (248) 624-9234 Copyright 2016, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501052E...

  • Page 3: Table Of Contents

    2.5 Noise and Earth Grounding Considerations ..............14 2.6 Logic Interface Connector ................... 14 Table 2.2: Logic Interface Connections ..................14 3.0 PROGRAMMING INFORMATION ................16 CONFIGURATION REGISTERS ........................16 Acromag, Inc. Tel: 248-295-0310 - 1 - - 1 - http://www.acromag.com www.acromag.com...
  • Page 4 6.3.1 Operating Temperature ......................24 6.3.2. Relative Humidity ........................24 6.3.3 Isolation ............................25 6.3.4 Vibration and Shock Standards ....................25 6.3.5 EMC Directives ..........................25 6.4 Reliability Prediction ....................26 Table 6.1 AP445E-LF ..........................26 Acromag, Inc. Tel: 248-295-0310 - 2 - - 2 - http://www.acromag.com www.acromag.com...
  • Page 5 Figure 1 AP445 Block Diagram ......................31 Figure 2 AP445 Digital Out to AP440 Digital In ..................31 Figure 3 AP445 to AP440 Loopback Connections ..................32 CERTIFICATE OF VOLATILITY ..................33 REVISION HISTORY ......................34 Acromag, Inc. Tel: 248-295-0310 - 3 - - 3 - http://www.acromag.com www.acromag.com...

  • Page 6: General Information

    The information contained in this manual is subject to change without notice, and Acromag, Inc. (Acromag) does not guarantee its accuracy. Acromag makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 7: Ordering Information

    Please contact factory for a custom configuration.  Power Up & System Reset Fail-Safe – For safety, the outputs are turned OFF upon power-up and a system reset. Thus, the SSR’s will Acromag, Inc. Tel: 248-295-0310 - 5 - - 5 - http://www.acromag.com www.acromag.com...

  • Page 8: Key Features Pcie Interface

    Express Endpoint. 1.4 Signal Interface Products This AcroPack Module will mate directly to all Acromag AP carriers. Once connected, the module is accessed via a 50 pin front panel connector. The cables and termination panels are also available. For optimum performance with the AP445 isolated output module, use of the shortest possible length of shielded I/O cable is recommended.

  • Page 9: Software Support

    AcroPack modules, VPX I/O board products, and PCIe I/O Cards. The software is implemented as a library of “C” functions which link with existing user code to make possible simple control of all Acromag AcroPack modules. 1.6 References The following resources regarding AcroPack modules are available for download on Acromag’s website or by contacting your sales representative.

  • Page 10: Preparation For Use

    It is important that the user employ satisfactory overall system design. It is understood and agreed by the Buyer and Acromag that this is the Buyer's responsibility.

  • Page 11: Installation Considerations

    Refer to the specifications section for loading and power requirements. Be sure that the system power supplies are able to accommodate the power IMPORTANT: Adequate air requirements of the system boards, plus the installed Acromag board, circulation must be provided to within the voltage tolerances specified.
  • Page 12 Reserved/isolation BSUP Field Output 13 Reserved/isolation Reserved/isolation Field Output 14 Field Output 15 Reserved/isolation Reserved/isolation Field Output 16 BCOM Reserved/isolation Reserved/isolation Field Output 17 Field Output 18 Reserved/isolation Acromag, Inc. Tel: 248-295-0310 - 10 - - 10 - http://www.acromag.com www.acromag.com...
  • Page 13 Field Output 27 Field Output 28 Reserved/isolation Reserved/isolation DSUP Field Output 29 Reserved/isolation Reserved/isolation Field Output 30 Field Output 31 Reserved/isolation Reserved/isolation Field Output 32 DCOM Reserved/isolation Reserved/isolation Acromag, Inc. Tel: 248-295-0310 - 11 - - 11 - http://www.acromag.com www.acromag.com...
  • Page 14 Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Reserved/isolation Note 1: VPX4500-CC-LF is an example of a carrier that uses the ribbon cable connector see image of carrier. Acromag, Inc. Tel: 248-295-0310 - 12 - - 12 - http://www.acromag.com www.acromag.com...
  • Page 15 AcroPack logic circuitry. Field I/O pinouts are arranged to be compatible with similar AcroPack models. This model is directly loopback compatible with the Acromag Model AP440 Isolated Input Module. Likewise, pin assignments are identical to those of Acromag Model AP408.

  • Page 16: Noise And Earth Grounding Considerations

    Name Pin # Name +3.3V +12V -12V N.C. (+1.5V) Present N.C. (LED_WPAN#) N.C. (LED_WLAN#) +3.3V N.C. (LED_WWAN#) +3.3V N.C. (USB_D+) N.C. (USB_D-) PETp0 PETn0 SMB_DATA SMB_CLK N.C. (+1.5V) Acromag, Inc. Tel: 248-295-0310 - 14 - - 14 - http://www.acromag.com www.acromag.com...
  • Page 17 Note 3: All +3.3Vaux power pins are changed to +3.3V power. Note 4: The Present signal is tied to circuit common on the AP module. Acromag, Inc. Tel: 248-295-0310 - 15 - - 15 - http://www.acromag.com...

  • Page 18: Programming Information

    Address Registers and the Interrupt Register which must be read to determine the base address assigned to the board and the interrupt request that goes active on a board interrupt request. Interrupts are not supported on the AP445 module. Acromag, Inc. Tel: 248-295-0310 - 16 - - 16 - http://www.acromag.com...

  • Page 19: Memory Map

    NOT USED return “0” for all address 0x0000 0044 reads that are not used or 0x0000 0048 32:0 XADC Status Control Register reserved. 0x0000 004C 32:0 XADC Address Register Acromag, Inc. Tel: 248-295-0310 - 17 - - 17 - http://www.acromag.com www.acromag.com...

  • Page 20: Software Reset Register (Write Only) - (Bar0 + 0X0000 0000)

    Port D: Output Channels 31 to 24 Write a zero to each channel’s position to turn the corresponding SSR OFF. Write a one to each channel’s position to turn the corresponding SSR ON. Acromag, Inc. Tel: 248-295-0310 - 18 - - 18 - http://www.acromag.com...

  • Page 21: Xadc Status/Control Register (Read/Write) - (Bar0 + 48H)

    For critical control applications, it is recommended that outputs be directly fed back to an input point and the input point be monitored (loopback I/O). Acromag Model AP440 32-channel isolated input modules can be used to implement loopback output monitoring with this module (see Figure 3 in Appendix A).

  • Page 22: Firmware Revision Register (Read Only) - (Bar0 + 0X0000 0200)

    MCS firmware file is readable from this location. For example, if the firmware is at revision A, then this register will read 0x41 in the least significant byte or B= 0x42, C=0x43, etc. Acromag, Inc. Tel: 248-295-0310 - 20 - - 20 - http://www.acromag.com...

  • Page 23: Theory Of Operation

    However, for complete confidence in output control, loopback should be performed. This may be accomplished using the AP440 isolated digital input module. (Refer to Figure Acromag, Inc. Tel: 248-295-0310 - 21 - - 21 - http://www.acromag.com...
  • Page 24 (reset register) or system software reset. This is done for safety reasons to ensure reliable control of the output state under all conditions. Acromag, Inc. Tel: 248-295-0310 - 22 - - 22 - http://www.acromag.com...

  • Page 25: Service And Repair

    SMT repair and service tools are used. For these and other reasons, it is strongly recommended that a non-functioning board be returned to Acromag for repair. Acromag has automated diagnostic and test equipment that thoroughly checks the performance of suspect boards.

  • Page 26: Specifications

    Note 1: An air cooled application with an AcroPack module will require a minimum airflow of 200LFM. 6.3.2. Relative Humidity The range of acceptable relative humidity is 5% to 95% non-condensing. Acromag, Inc. Tel: 248-295-0310 - 24 - - 24 - http://www.acromag.com...

  • Page 27: Isolation

    Conducted RF Immunity (CRFI), per IEC 61000-4-6.  Emissions per EN 61000-6-4: Enclosure Port, per CISPR 16. Low Voltage AC Mains Port, per CISPR 16. Note: This is a Class A product Acromag, Inc. Tel: 248-295-0310 - 25 - - 25 - http://www.acromag.com www.acromag.com...

  • Page 28: Reliability Prediction

    Conforms to PCI Express Base Specification, Revision 2.1 Line Speed Gen1 (2.5Gbps) available through PCIe connector Lane Operation 1-Lane 4K Memory Space Required One Base Address Register (BAR) Acromag, Inc. Tel: 248-295-0310 - 26 - - 26 - http://www.acromag.com www.acromag.com...
  • Page 29 Simple write operations are just as fast as DMA read operations. Write data is presented to the AcroPack in one transaction. Measured 4- byte back to back write accesses taking place every 100ns. Acromag, Inc. Tel: 248-295-0310 - 27 - - 27 - http://www.acromag.com...

  • Page 30: Ap-Cc-01 Heatsink Kit Installation

    AP-CC-01 Heatsink Kit Installation Hardware Bottom view Top view AP-CC-01 Heat Sink Kit This example will show how to install the AP-CC-01 Heatsink kit with an APCe7020 carrier. Acromag, Inc. Tel: 248-295-0310 - 28 - - 28 - http://www.acromag.com www.acromag.com...
  • Page 31 USER’S MANUAL SERIES AP445 ACROPACK 1. Install two standoffs and secure with two screws. 2. Install the AcroPack module. 3. Install the Heatsink and secure with 4 screws. Acromag, Inc. Tel: 248-295-0310 - 29 - - 29 - http://www.acromag.com www.acromag.com...
  • Page 32 USER’S MANUAL SERIES AP445 ACROPACK 4. AP-CC-01 Installation is complete. Note: Make sure the thermal pad is making contact with the FPGA IC. Acromag, Inc. Tel: 248-295-0310 - 30 - - 30 - http://www.acromag.com www.acromag.com...
  • Page 33 AP440 INPUTS AND AP445 OUTPUTS ARE BIPOLAR AND MAY BE CONNECTED IN ANY DIRECTION WITH RESPECT TO PORT COMMON. INPUT: 4-18V AP445 OUTPUT FIGURE 2: AP445 DIGITAL OUT TO AP440 DIGITAL IN Acromag, Inc. Tel: 248-295-0310 - 31 - - 31 - http://www.acromag.com www.acromag.com...
  • Page 34 COMMON. SEPARATE PORT COMMONS FACILITATE PORT TO PORT ISOLATION. THE AP445 ALSO INCLUDES SEPARATE PORT SUPPLY PINS FOR CONNECTING TO THE ON-BOARD PULLUPS. FIGURE 3: AP445 TO AP440 LOOPBACK CONNECTIONS Acromag, Inc. Tel: 248-295-0310 - 32 - - 32 - http://www.acromag.com...

  • Page 35: Certificate Of Volatility

    Flash device been disabled by writing the lock bits with logic 1. Acromag Representative Name: Title: Email: Office Phone: Office Fax: Russ Nieves Sales and solutions@acromag.com 248-295-0310 248-624-9234 Marketing Acromag, Inc. Tel: 248-295-0310 - 33 - - 33 - http://www.acromag.com www.acromag.com...

  • Page 36: Revision History

    Added APCe7040E-LF carrier picture, updated Where To Get Help Section, added more info on TTL compatibility 11 JAN 2018 Rev E LMP/MJO Added Table 6.6 PCIe Bus Data Rates. Acromag, Inc. Tel: 248-295-0310 - 34 - - 34 - http://www.acromag.com www.acromag.com...

This manual is also suitable for:

Acropack ap445e-lf
