DM-TX-4KZ-100-C-1G

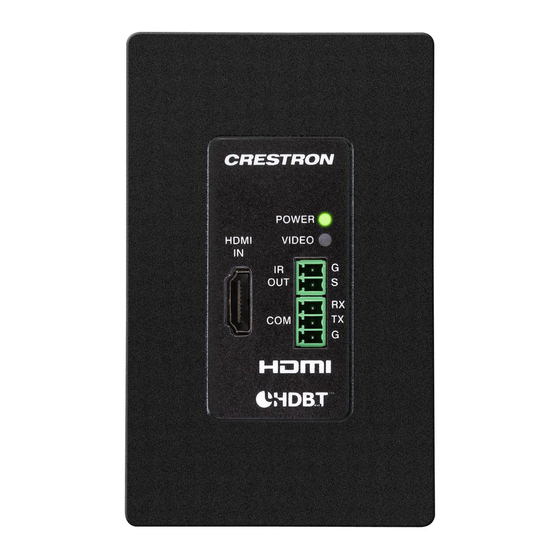

DigitalMedia 8G+® 4K60 4:4:4 HDR Wall Plate Transmitter
The Crestron®
DM-TX-4KZ-100-C-1G
transmitter that supports 4K60 4:4:4 and HDR (High Dynamic Range)
video. The transmitter provides a cost-effective solution for a single AV
source as part of a complete Crestron DigitalMedia™ system.
In the Box
1
DM-TX-4KZ-100-C-1G DigitalMedia 8G+® Wall Plate
Transmitter
Additional Items
1
Bracket, Surface Mount (2016054)
1
Connector, 2-Pin (2003574)
1
Connector, 3-Pin (2003575)
2
Screw, 6-32 x 3/4 in., Truss Head, Combo (2009211)
2
Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218)
Install the Transmitter
Mount the transmitter into an electrical box, onto a flat surface, or onto a
rack rail. Connect the rear of the transmitter before mounting it into an
electrical box. If the transmitter is to be mounted onto a flat surface or
rack rail, connect the rear of the transmitter after the device is mounted.
is a DigitalMedia 8G+® wall plate
Connecting the Rear of the Transmitter
NOTE:
The DM OUT port is a PoDM (Power over DM) powered device
(PD) port and is also compatible with HDBaseT® PoE:
In order for the DM OUT port to receive PoDM, the port must be
l
connected to a DigitalMedia switcher or other DigitalMedia
equipment that has a PoDM power sourcing equipment (PSE) port.
In order for the DM OUT port to receive HDBaseT PoE, the port
l
must be connected to equipment that has an HDBaseT PoE PSE
port.
Wiring that connects to a PoDM or HDBaseT PoE port is designed for
intrabuilding use only.
PoDM, HDBaseT PoE, or the optional
(sold separately) can be used to power the transmitter.

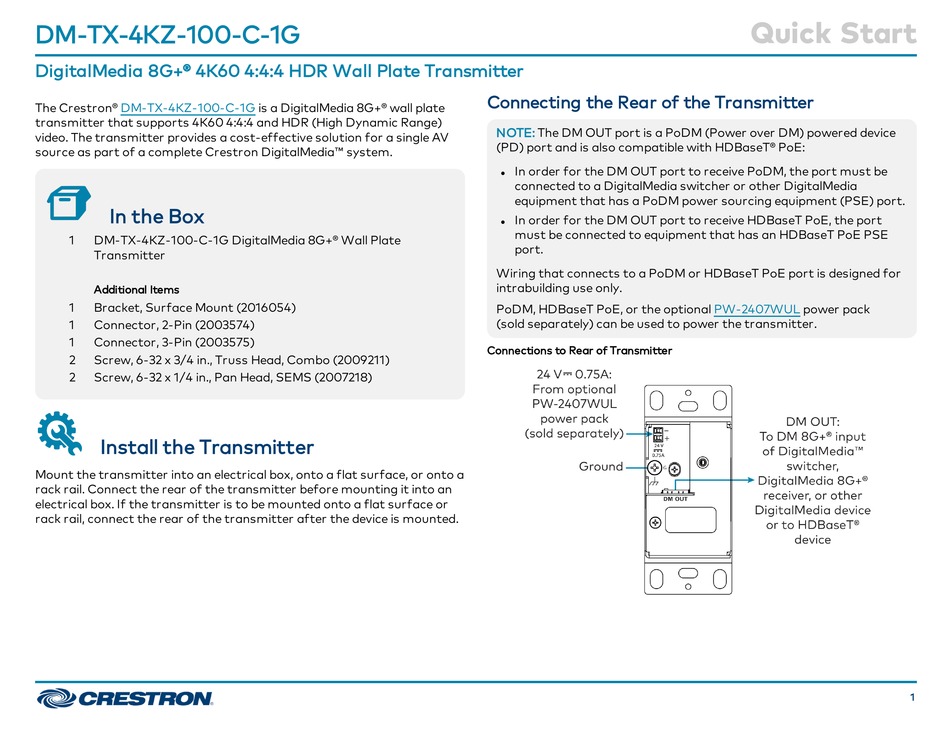

Connections to Rear of Transmitter
Quick Start
PW-2407WUL
power pack
1
