- Page 1 DM-TX-4KZ-202-C and DM-TX-4KZ-302-C DigitalMedia 8G+® 4K60 4:4:4 HDR Transmitters Supplemental Guide Crestron Electronics, Inc.
- Page 2 United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Contents Introduction Physical Description Side View, Left Side View, Right Configuration EDID Configuration HDBaseT Configuration USB HID control configuration HDCP 2.2 Compliance Troubleshooting Appendix: Pin Assignments Supplemental Guide — Doc. 8325B Contents • i... - Page 4 ii • Contents Supplemental Guide — Doc. 8325B...
-
Page 5: Introduction
Introduction The Crestron® DM-TX-4KZ-202-C and DM-TX-4KZ-302-C are DigitalMedia 8G+® transmitters and switchers that support 4K60 4:4:4 and HDR (HDR10) video signals. The DM-TX-4KZ-202-C provides a built-in 2 x 1 auto-switcher with two HDMI® inputs. The DM-TX-4KZ-302-C provides a built-in 3 x 1 auto-switcher with two HDMI inputs and one DisplayPort™... -
Page 6: Physical Description

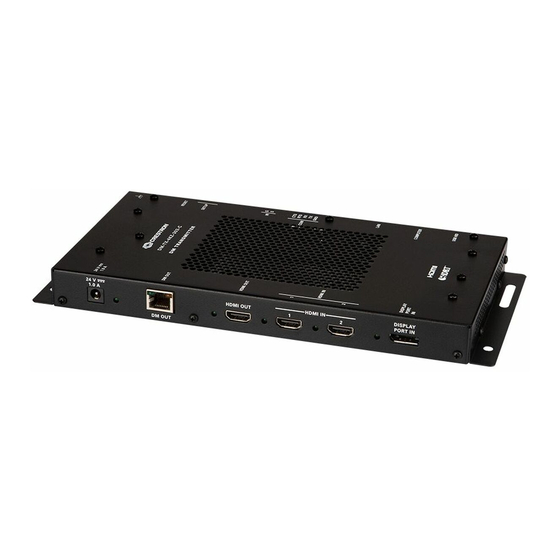

Physical Description The following sections provide information about the connectors, controls, and indicators that are available on the left and right sides of the DM-TX-4KZ-202-C and DM-TX-4KZ-302-C. Side View, Left The following illustration shows the left side of the DM-TX-4KZ-302-C. NOTE: The left side of the DM-TX-4KZ-202-C provides the same connectors and indicators as the DM-TX-4KZ-302-C with the exception of the DISPLAY PORT IN... - Page 7 PoDM+ PD (Powered Device) port (HDBaseT PoE+ compatible); Connects to the DM 8G+ input of a DM® switcher, receiver, or other DM device, or to an HDBaseT® device via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable; Green LED indicates DM link status;...
-
Page 8: Side View, Right
HDMI IN 1–2: HDMI Type A connectors, female; Ð HDMI digital video/audio inputs; (DVI and Dual-Mode DisplayPort compatible) NOTE: The HDMI IN ports require an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately. 4K60 4:4:4 performance and HDR support require the use of HDMI and DisplayPort cables and couplers with a minimum TMDS bandwidth of 18 Gbps. - Page 9 Side View, Right (DM-TX-4KZ-302-C) Ê Ground ( ): 6-32 screw, chassis ground lug RESET: Recessed push button for reboot of the device Ë SETUP: (Applicable only to a configuration in which a DigitalMedia switcher is not Ì used) Red LED indicates that the SETUP button is pressed and times out automatically; Recessed push button for Ethernet setup of the default static IP address of the device NOTE:...
- Page 10 USB HID: USB Type A female; USB 2.0 host port for connection to a mouse, keyboard, or other USB HID compliant device (USB signal extension and routing), or for connection to a Crestron TT-100 Series Crestron Connect It™ cable caddy (sold separately) 6 •...
-
Page 11: Configuration
EDID is as follows: NOTE: For detailed information, refer to the Crestron Toolbox™ software help file. 1. Connect to the DM-TX-4KZ-202-C or DM-TX-4KZ-302-C. 2. Open the Setup window of the HDMI input for the DM-TX-4KZ-202-C or the Setup window of the HDMI or DisplayPort input for the DM-TX-4KZ-302-C. - Page 12 EDID Configuration Dialog Box for HDMI Input (DM-TX-4K-302-C Dialog Box Shown) HDBaseT Configuration The DM-TX-4KZ-202-C or DM-TX-4KZ-302-C are HDBaseT certified, enabling direct connection to other HDBaseT certified equipment. Via the DM 8G+ output of the DM-TX-4KZ-202-C or DM-TX-4KZ-302-C, the transmitter can be connected directly to a third-party HDBaseT compliant device without requiring a DigitalMedia receiver.
- Page 13 HDBaseT Receiver Slot (Slot 9) When the third-party HDBaseT receiver device is added to slot 9, the HDBaseT Receiver symbol adds a COM port to the device and enables two-way serial communication. Addition of HDBaseT Receiver to Slot 9 and COM Port in Slot 1 USB HID control configuration A keyboard, mouse, or other USB HID compliant device can be connected locally to the USB HID port of the DM-TX-4KZ-202-C and DM-TX-4KZ-302-C.
-
Page 14: Hdcp 2.2 Compliance
HDCP 2.2 Compliance The DM-TX-4KZ-202-C and DM-TX-4KZ-302-C are compliant with HDCP 2.2. HDCP 2.2, commonly referred to as HDCP 2, is the next generation of HDCP (High-Definition Content Protection). Note the following about HDCP 2: Compared to HDCP 1, HDCP 2 brings a higher level of cryptographic protection to HDMI technology. -
Page 15: Troubleshooting
Troubleshooting The following table provides troubleshooting information. If further assistance is required, contact a Crestron customer service representative. DM-TX-4KZ-202-C or DM-TX-4KZ-302-C Troubleshooting Problem Possible Cause(s) Corrective Action Video is not The HDCP settings of one or more Ensure that the HDCP settings... - Page 16 NOTE: If, for any reason, the factory default settings of the DM-TX-4KZ-202-C or DM-TX-4KZ-302-C must be restored, do the following: From the Tools menu in the Crestron Toolbox software, select Text Console and enter the following command: restore y 12 •...
-
Page 17: Appendix: Pin Assignments
Appendix: Pin Assignments This section provides information about pin assignments and wiring for the following connectors: DM OUT DM OUT Pin Assignments and Wiring Pin Number Wire Color Orange/White Orange Green/White Blue Blue/White Green Brown/White Brown LAN Pin Assignments Pin Number Signal TX–... - Page 18 This page is intentionally left blank. Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 14...
- Page 19 Crestron Electronics, Inc. Supplemental Guide — Doc. 8325B 15 Volvo Drive, Rockleigh, NJ 07647 2051709 Tel: 888.CRESTRON 05/04/20 Fax: 201.767.7656 Specifications subject to www.crestron.com change without notice.
