Crestron Digitalmedia 8G+ Transmitter 401 Quick Start

Crestron Digitalmedia 8G+ Transmitter 401 Quick Start

Advertisement

Quick Links

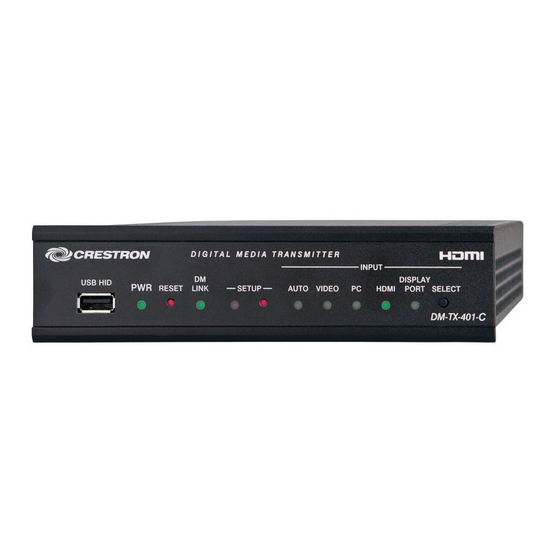

DM-TX-401-C
Digitalmedia 8G+® Transmitter 401
The Crestron®
DM-TX-401-C
provides a versatile interface for computers
and high-definition AV sources.
In the Box
1
DM-TX-401-C, DigitalMedia 8G+ Transmitter 401
Additional Items
1
Connector, 2-pin (2003574)
1
Connector, 5-pin (2003577)
Install the Transmitter
The DM-TX-401-C can be mounted into a rack, attached to the underside
of a table, or placed onto a flat surface. To mount the device into a rack,
use the ST-RMK Rack Mount Kit (sold separately). To attach the device to
the underside of a table, use the
(sold separately).
Quick Start
UTK-1U-HALF
Under-Table Mounting Kit
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Digitalmedia 8G+ Transmitter 401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Crestron Digitalmedia 8G+ Transmitter 401

  • Page 1 ST-RMK Rack Mount Kit (sold separately). To attach the device to In the Box the underside of a table, use the UTK-1U-HALF Under-Table Mounting Kit (sold separately). DM-TX-401-C, DigitalMedia 8G+ Transmitter 401 Additional Items Connector, 2-pin (2003574) Connector, 5-pin (2003577)
  • Page 2 Quick Start DM-TX-401-C Digitalmedia 8G+® Transmitter 401 Rear Panel Connections Connect the Transmitter Connect the transmitter as appropriate for the application. Front Panel Connection NOTE: The DM OUT port is a PoDM (Power of DM) or HDBaseT® PoE (Power over Ethernet) PD (Powered Device) port. To receive PoDM or HDBaseT PoE, the DM-TX-401-C requires a connection to a DM®...
  • Page 3 IP address 192.168.1.234 overwrites the current setting. To manually set a static IP address other than the default address, use the Crestron Toolbox™ application. Pressing the SELECT button in succession changes the input selection from automatic switching (the default setting) to the various available selections in the following order: DisplayPort audio and video: The DISPLAY PORT LED lights.
  • Page 4 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

This manual is also suitable for:

Dm-tx-401-c
