Crestron DigitalMedia 8G+ DM-TX-201-C Do Manual

DO
DM-TX-201-C

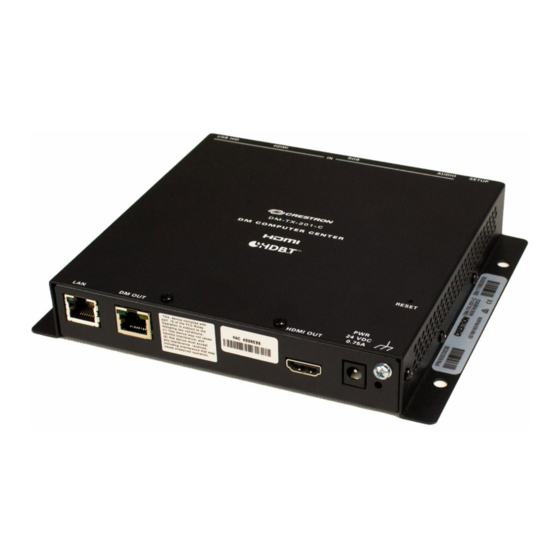

DigitalMedia 8G+ Transmitter 201
®
DO

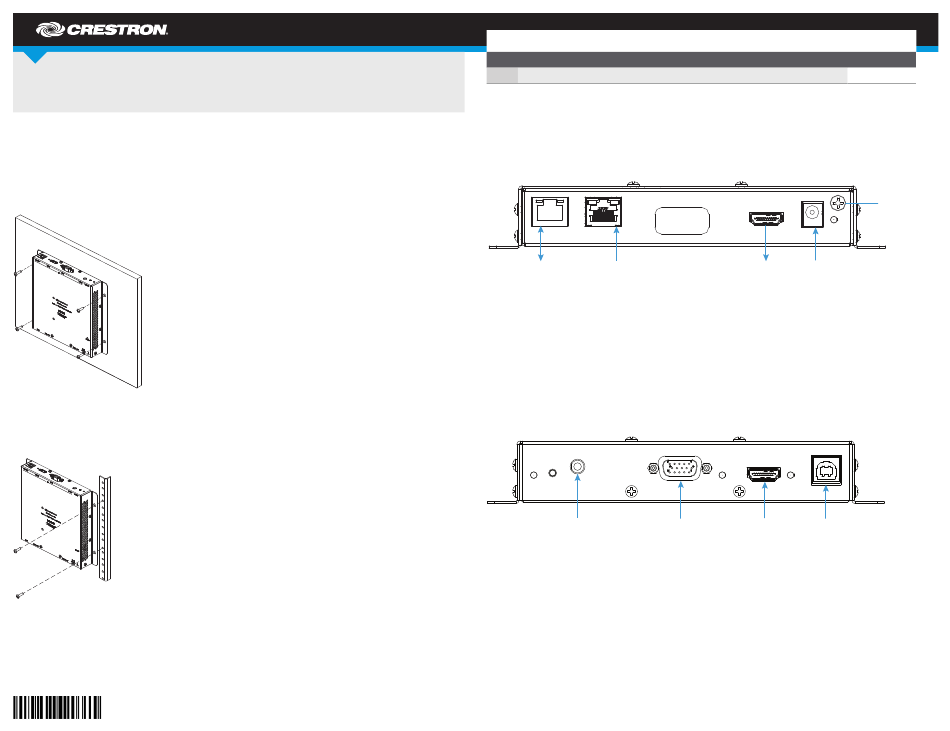

Mount the DM-TX-201-C

The Crestron ® DM-TX-201-C can be mounted onto a flat surface or onto a rack rail.

Mounting onto a Flat Surface

Using four mounting screws (not included), mount the device onto a flat surface such as a wall or a
ceiling.

Mounting onto a Rack Rail

Using two mounting screws (not included), mount the left or right mounting flange of the
DM-TX-201-C onto the front or rear rail of a rack.
GUIDE
DO

Check the Box

QTY PRODUCT
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
DO

Connect the Device

Connect the device as required for the application.

Front Panel Connections

LAN: DM OUT:
10BASE-T/ To DM switcher,
®
100BASE-TX receiver, or other
Ethernet to/from DM device or to
local network device HDBaseT device
®
NOTE: The DM OUT port is a PoDM (Power over DM) and HDBaseT
PD (Powered Device) port. To receive PoDM or HDBaseT PoE, the DM-TX-201-C requires a
connection to a DM ® switcher or other equipment that has a PoDM or HDBaseT PoE PSE (Power
Sourcing Equipment) port. Any wiring that is connected to a PoDM or HDBaseT PoE PSE port is for
intrabuilding use only and should not be connected to a line that runs outside of the building in which
the PSE is located.

Rear Panel Connections

AUDIO IN:
Unbalanced
stereo line level component
input video input
HDMI OUT: PWR
To HDMI 24 VDC
®
0.75A:
display
From included
power pack
PoE (Power over Ethernet)
®
RGB IN: HDMI IN:
USB HID:
RGB or From From USB HID
HDMI
compliant host
audio/video
or from TT-100
source
series device
PART NUM.
2045865
Ground
