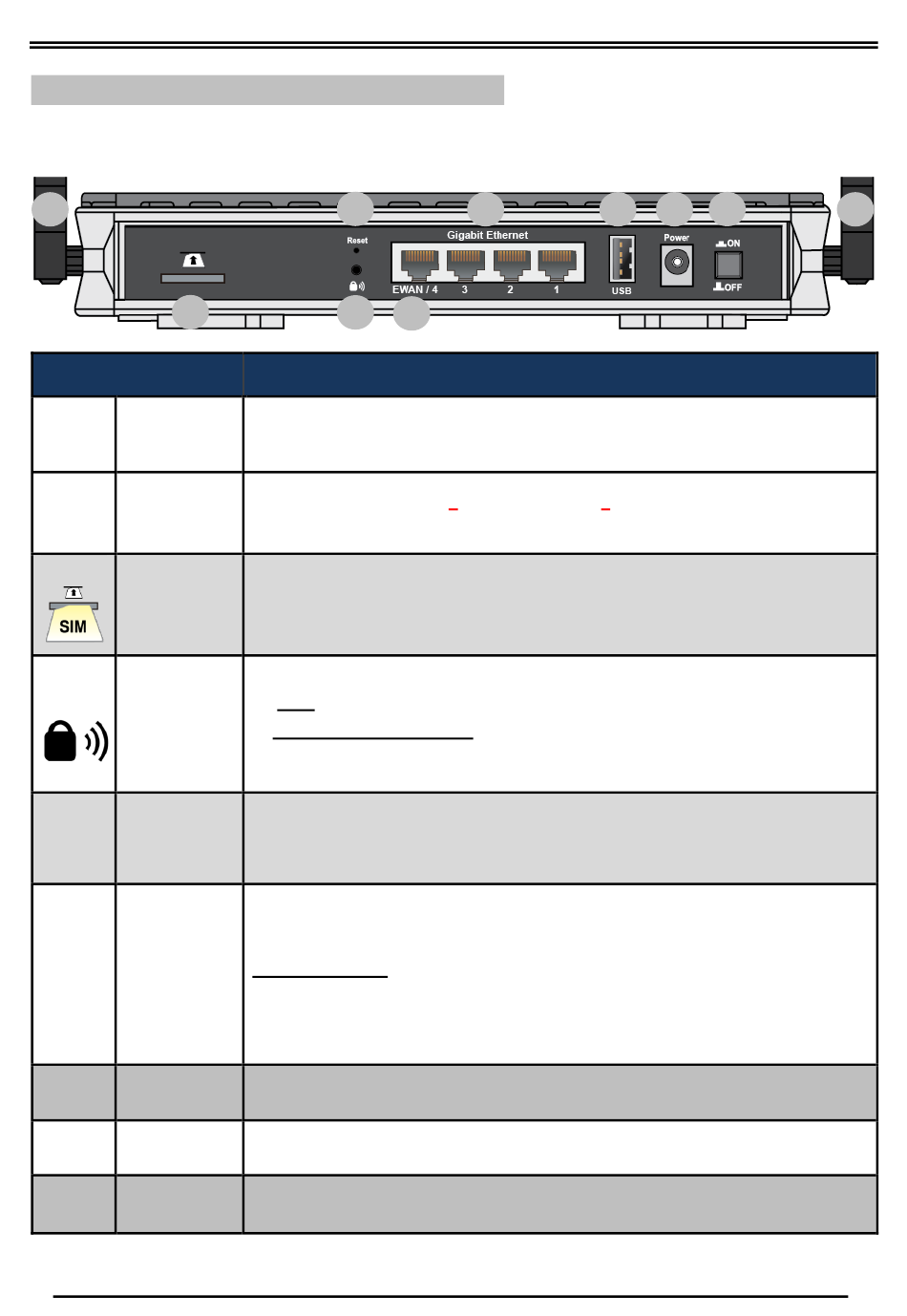

Rear Panel – Ports / Connectors
1
2
PORT
Wi-Fi
1
Antenna
Connectors
LTE Antenna
1
Connectors
2
SIM Card Slot
3
WPS &
Wireless
On/Off
4
Reset
Gigabit
5
LAN Ethernet
(1 - 4)
6
USB
DC Power
7
Jack
Power
8
ON/OFF
3
BEC 6500AEL 4G/LTE Enterprise Multi-Service Router
4
3
*
Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides
(6500AEL R18 / R21 uses 4 LTE antennas and 2 Wi-Fi antennas)
Screw the supplied mobile LTE antennas onto the antenna connectors on both sides
Insert the mini SIM card (2FF) with the gold contact facing down
Push the mini SIM card (2FF) inwards to eject it
By controlling the pressing time, users can achieve two different effects:
*
(1) WPS
: Press &hold the button for less than 6 seconds to trigger WPS function.
(2) Wireless ON/OFF button: Press & hold the button for more than 6 seconds to
enable or disable the wireless.
* Refer to the WPS section in the User Manual for more details.
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
* Ethernet WAN/4
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable, for broadband
connectivity
Note: LAN 4 automatically becomes an ethernet WAN port when the ETH WAN internet
interface is being selected in the GUI
Mainly for storage and file sharing
Connect the supplied Power Adapter to this jack
Power ON/OFF switch
