VersaChassis Mini 4 Wheel Drive Assembly Instructions
Step 3: Install Additional Screws

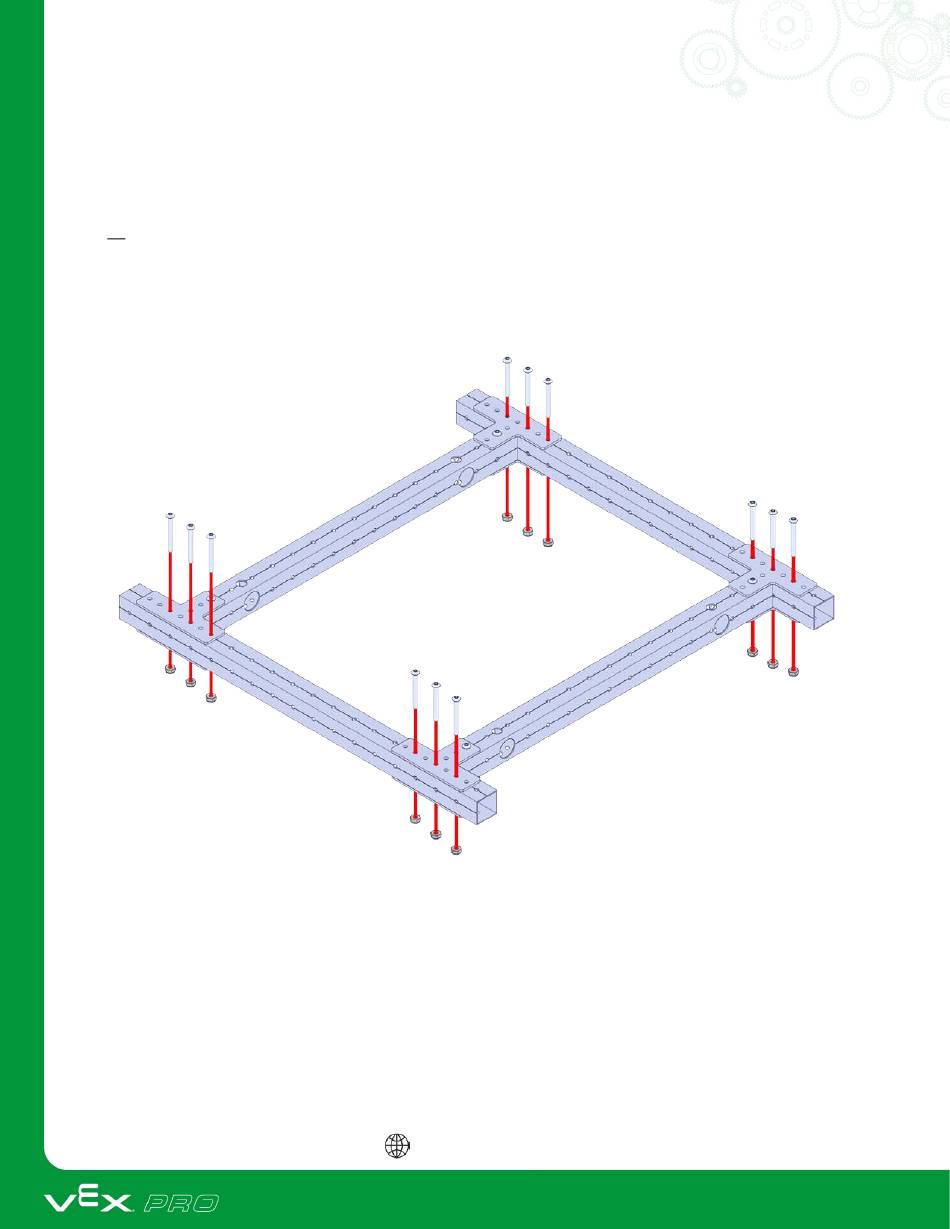

Each VersaChassis Gusset will match up with 3 holes on the 17.5" VersaFrame Member.
Install an #8-32 x 1.500" Star Drive Screw and #8-32 Nyloc Nut through each of these holes.
Once all 12 of the #8-32 x 1.5" Star Drive Screw and #8-32 Nyloc Nuts have been installed
and are finger tight, use the T15 Star Drive Screwdriver and an 11/32" open wrench to
tighten all the screws, including the 4 that are holding the VersaChassis Gusset to the 15.5"
VersaFrame Member.
