VersaChassis Mini 4 Wheel Drive Assembly Instructions
Step 2: Slide the 17.5" Long VersaFrame Member Between the
VersaChassis Gussets

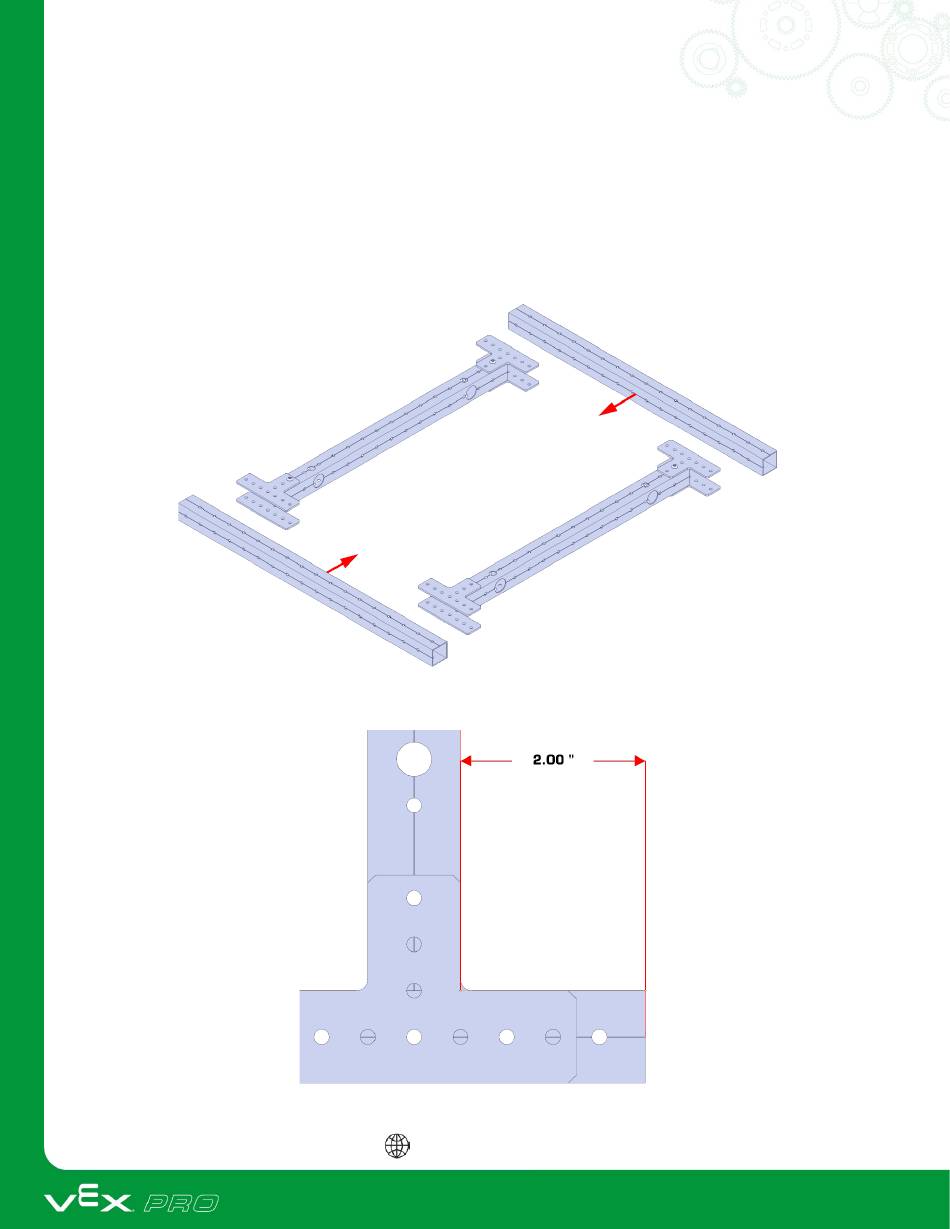

Slide the 17.5" Long VersaFrame Member between the VersaChassis Gussets attached to
the 15.5" Long VersaFrame Members. The ends of the 17.5" VersaFrame Members should
be 2" from the outer face of the 15.5" VersaFrame Member.
vexpro.com
Copyright 2018, VEX Robotics Inc.
14
2018-06-15
