FlexxPump 250/400 (24V); time-controlled
User Manual
revision: 1

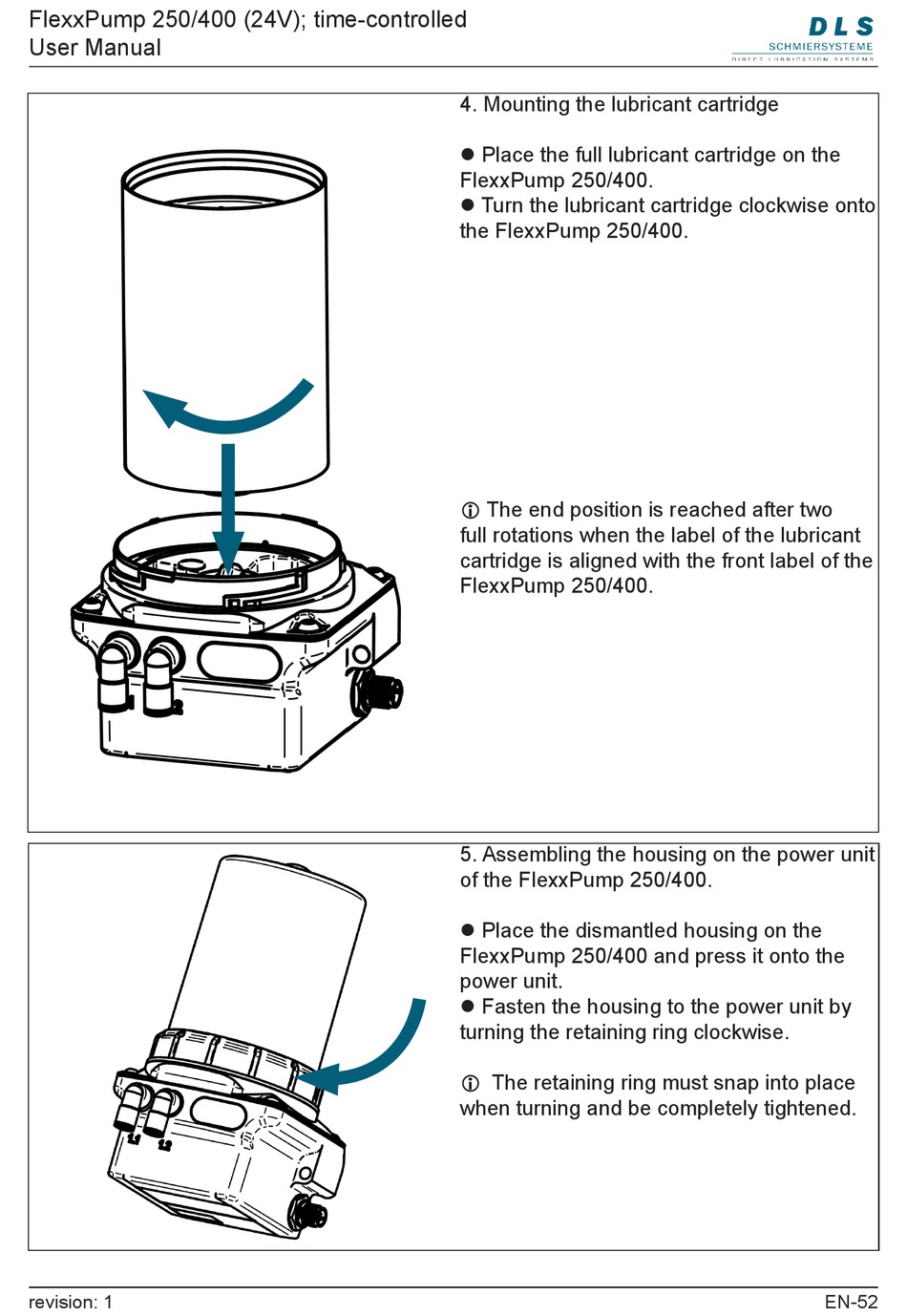

4. Mounting the lubricant cartridge
 Place the full lubricant cartridge on the
FlexxPump 250/400.
 Turn the lubricant cartridge clockwise onto
the FlexxPump 250/400.
 The end position is reached after two
full rotations when the label of the lubricant
cartridge is aligned with the front label of the
FlexxPump 250/400.
5. Assembling the housing on the power unit
of the FlexxPump 250/400.
 Place the dismantled housing on the
FlexxPump 250/400 and press it onto the
power unit.
 Fasten the housing to the power unit by
turning the retaining ring clockwise.
 The retaining ring must snap into place
when turning and be completely tightened.
EN- 52
