FlexxPump 250/400 (24V); time-controlled
User Manual
6.3.7

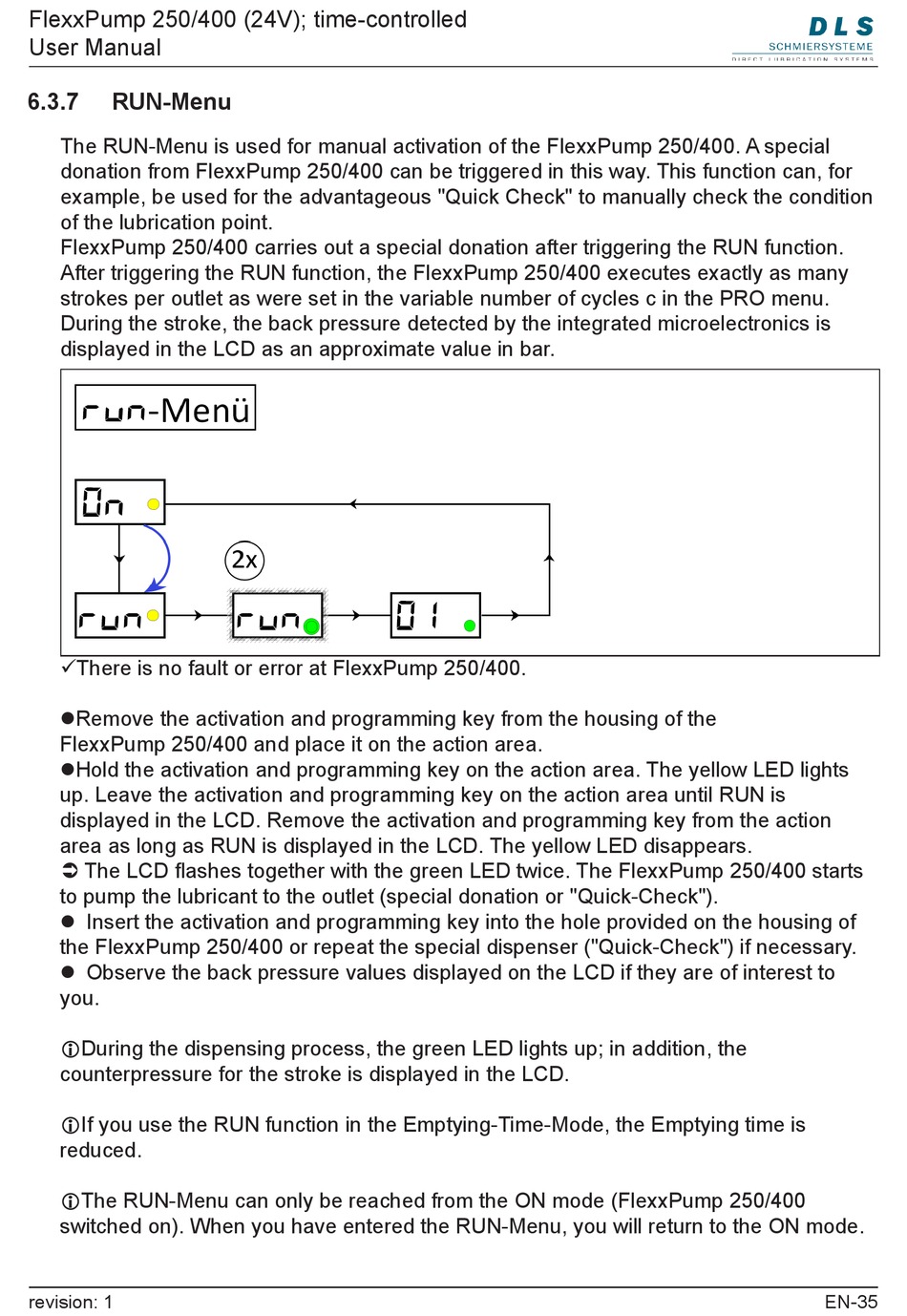

RUN-Menu

The RUN-Menu is used for manual activation of the FlexxPump 250/400. A special
donation from FlexxPump 250/400 can be triggered in this way. This function can, for
example, be used for the advantageous "Quick Check" to manually check the condition
of the lubrication point.
FlexxPump 250/400 carries out a special donation after triggering the RUN function.
After triggering the RUN function, the FlexxPump 250/400 executes exactly as many
strokes per outlet as were set in the variable number of cycles c in the PRO menu.
During the stroke, the back pressure detected by the integrated microelectronics is
displayed in the LCD as an approximate value in bar.
There is no fault or error at FlexxPump 250/400.
Remove the activation and programming key from the housing of the
FlexxPump 250/400 and place it on the action area.
Hold the activation and programming key on the action area. The yellow LED lights
up. Leave the activation and programming key on the action area until RUN is
displayed in the LCD. Remove the activation and programming key from the action
area as long as RUN is displayed in the LCD. The yellow LED disappears.
Ü The LCD flashes together with the green LED twice. The FlexxPump 250/400 starts
to pump the lubricant to the outlet (special donation or "Quick-Check").
 Insert the activation and programming key into the hole provided on the housing of
the FlexxPump 250/400 or repeat the special dispenser ("Quick-Check") if necessary.
 Observe the back pressure values displayed on the LCD if they are of interest to
you.
During the dispensing process, the green LED lights up; in addition, the
counterpressure for the stroke is displayed in the LCD.
If you use the RUN function in the Emptying-Time-Mode, the Emptying time is
reduced.
The RUN-Menu can only be reached from the ON mode (FlexxPump 250/400
switched on). When you have entered the RUN-Menu, you will return to the ON mode.
revision: 1 EN- 35
