11. Final Assembly of the Model Airplane

Before starting with the assembly of the model, you should ensure an appropriate surface.
In order to attain excellent airplane performances, your model is manufactured with a light plastic foam. The disadvan-
tage of this material is, however, a sensitive surface. Small inattentions during the assembly of the model lead very
quickly to ugly dents and holes in the surface.

a) Assembly of the wings

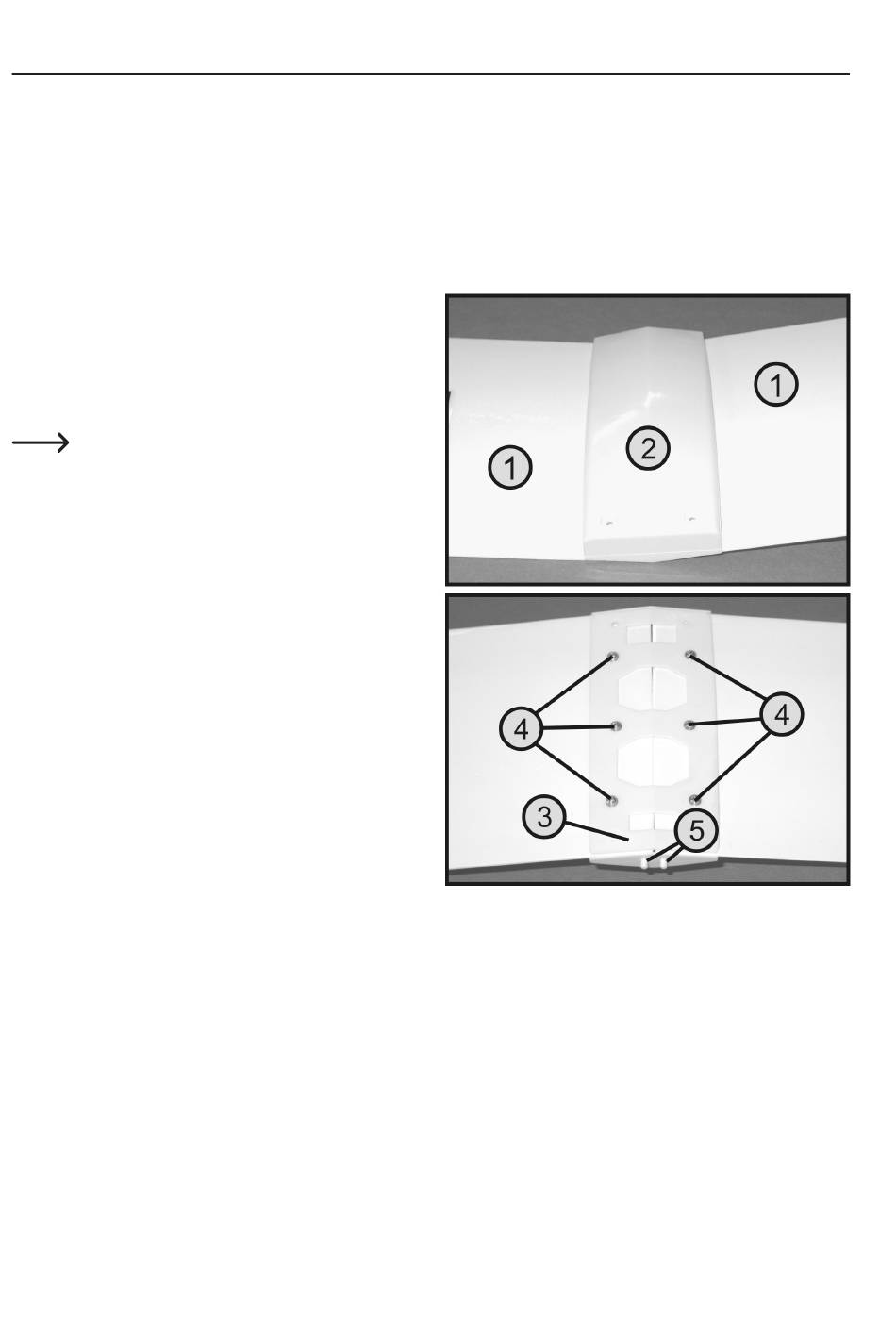

• Put both wing halves flush together (1) and then attach
the top wing connection element (2).
• Then turn the wings around so that the top side faces
downwards and then attach the bottom wing connection
element (3) according to the illustration.
Make sure that the borings fort he attachment
screws are flush with each other.
• Now screw the bottom wing connection element togeth-
er with the top element using the enclosed 2.2 x 8 mm
attachment screws (4).
Figure 6
45
