Room for type designation and manufacturing number:
Equipment type:
Manufacturing number:
Our supply program:
Haas+Sohn
Ofentechnik GmbH
Urstein Nord 67
A-5412 Puch
eMail: office@haassohn.com
http://www.haassohn.com
Installation and operating instructions
Oil stoves
Fireplaces
Pellet stoves
Tiled and slow-burning stoves for wood and coal
Slow-burning and auxiliary stoves for wood, coal and oil
Fireplace inserts for wood
Electric fireplaces
Accessories for stove and fireplace
Accessories for central oil supply
Air humidifiers
Sales in Germany
Haas+Sohn Ofentechnik GmbH
Zur Dornheck 8
D-35764 Sinn
eMail: info@haassohn.com
Oil stove DIN EN 1

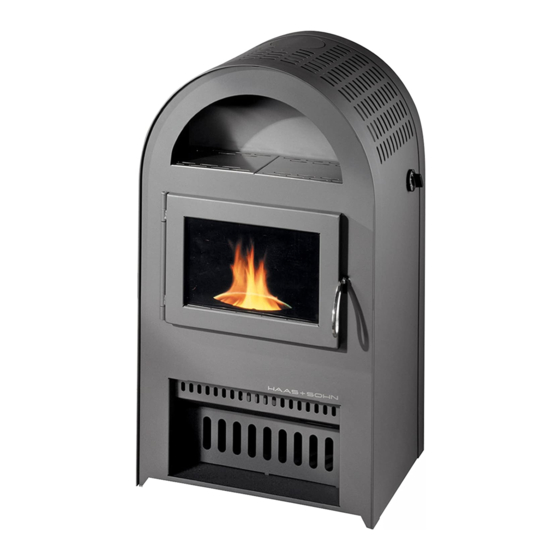

Viking 468.50, Ibiza 469.50
Art. No.: 100 859 A
V03 F06
Advertisement
Table of Contents
Related Manuals for HAAS + SOHN Ibiza 469.50
Summary of Contents for HAAS + SOHN Ibiza 469.50
- Page 1 Art. No.: 100 859 A V03 F06 Oil stove DIN EN 1 Installation and operating instructions Viking 468.50, Ibiza 469.50 Room for type designation and manufacturing number: Equipment type: Manufacturing number: Our supply program: Oil stoves Fireplaces Pellet stoves Tiled and slow-burning stoves for wood and coal...
-
Page 2: Table Of Contents
Table of contents Congratulations and many thanks! You are the owner of a HAAS+SOHN oil stove – a quality product. Please read these operating instructions carefully. They serve to inform Description you on how to use this stove. This will increase the General information, safety utilisation value of the appliance and increase its service life. -
Page 3: General Information, Safety Instructions
The necessary minimum amount of air must be able to flow to the oil stove Models unobstructed even during the operation of exhaust Ibiza 469.50 3,60 290 systems (bathroom exhaust fans, kitchen extractors etc.) Viking 468.50 3,60 290 in your home or in any other connected rooms. - Page 4 Figure 2: Oil stove Ibiza 469.50 Designation Art. No. Viking Art. No. Viking Art. No. Ibiza 468.50 anth. 468.50 blue 469.50 Cover plate 182546 Flue pipe spigot 199025 199025 199025 Draft baffle 181535 181535 181535 Combustion chamber Burner (burner pot) Upper and lower burner ring 129210+129211 129210+129211...
-
Page 5: Oil Stove Installation
Connection to central Connection to Article oil supply living room tank Oil stove installation 1 straight ferrule screw connection 8x8 102151 Building authority regulations: 1 flexible fuel oil hose: When installing the oil stove it is always imperative to 50cm 104212 follow the fire protection regulations as directed by the 75 cm... - Page 6 1. Slide in the tank frame; for filling the oil tank from the left or right the frame can be mounted either from the Figure 6: Ibiza 469.50 front or from the rear. (see Figure 3). Installing the snap-on clip in...
-
Page 7: Conversion Instructions Of The Model "Viking 468.50" To Vertical Flue Pipe Connection
Figure 9: Installing the oil tank (see Chapter 12.2.). Figure 11: Ibiza 469.50, Installation of oil guide 2. Position the tank so that the filler neck with filter is plate located on the outside. 1 Oil guide plate 3. Mount tank screen panel to the rear wall (see figures... -
Page 8: Connecting To The Chimney
9. Connecting to the chimney HAAS+SOHN oil stoves can be connected to any normal-draught chimney, either directly (see Figure 14) or with a so-called “Starting section” (see Figure 15). However we do not advise connection to an external wall chimney. A commercially available steel sheet flue pipe should be used for connection to the chimney. -
Page 9: Oil Stove Operation
11.1. Suitable fuels Only extra light fuel oil (ELFO) according to DIN 51603 (or the standard applicable in your country) is suitable and allowed for firing in your oil stove. This is pointed out both on the appliance plate and on the screw cap of your oil tank (“use only special stove fuel oil”). -
Page 10: Igniting And Normal Operation
This will enable the oil to flow from the oil tank or from the central oil supply to the oil controller. Figure 18: Burner with burner rings 1 - 6 Combustion air hole rows Oil inlet Bead Lower burner ring Support pin Upper burner ring Figure 20: Oil controller... -
Page 11: Shutting Down The Oil Stove
On model “Viking 468.50” it is only required to lift the paraffin-saturated wick or liquid oil stove igniter. inspection panel (see Figure 1) below the fire chamber When the flame burns all round, set the output door a few millimetres before unhooking (possible controller to a medium position. -
Page 12: Cleaning The Oil-Carrying Parts
connections are tightened carefully without excessive force to avoid damaging the threads resulting in leaks. 3. With water in the tank, keep the tank shut-off valve open with opened filter cover until pure fuel oil runs out. In rare cases it may happen that the dosing bar in the oil controller becomes dirty, obstructing or... -
Page 13: Maintenance Of Primary Air Limiter
identified in that the ignition coil fails to glow with cold 12.3. Maintaining the primary air limiter stove and ignition switched on. This can be verified through the opened fire chamber door. The primary air limiter (PAL) is inserted at the back or 1. - Page 14 Problem Reason Solution See Chapter 11.5. “Operation between the Effect of weather between the seasons. seasons”. Primary air limiter (PAL) is dirty, blocking the Clean primary air limiter (PAL)(see Chapter pendulum flap. 12.3.). Primary air limiter (PAL) is incorrectly installed, Correctly install primary air limiter (PAL) (see blocking the pendulum flap.
-
Page 15: Warranty
If persons not authorised by us to do so interfere with or make changes to the appliance the HAAS + SOHN accept liability for this appliance for two warranty entitlement will become void. years within the scope of the warranty guidelines,... -
Page 16: Complaints
stove in Figure 24. If no remark concerning model and manufacturing numbers is provided on page 1 of these instructions, please enter them there. In this way you 14.3. Complaints will always have immediate access to all important Please lodge any complaints exclusively with your data.
