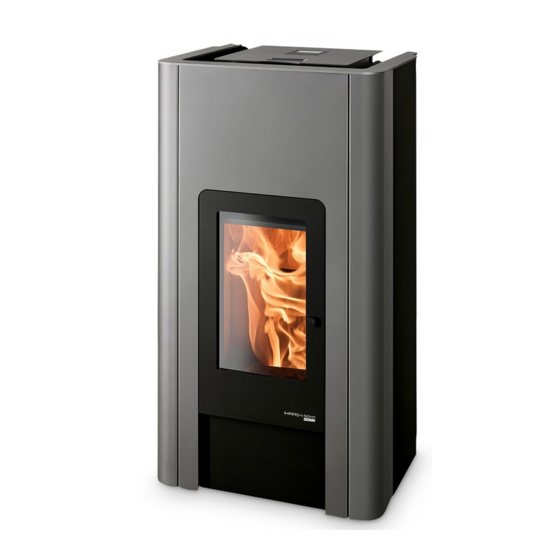

- Page 1 Equipment sheet HSP 6 Pallazza III 520.08 RLU–PGI HSP 6 Pallazza III 520.08 RLU–PGI Equipment sheet Pellet stove 0552008001403a...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
Contents 1. Technical data..........................1 2. Dimensions........................... 2 3. Cleaning work ..........................3 3.1. Cleaning the surface ......................... 3 3.2. Cleaning the glass panel ......................3 3.3. Clean combustion chamber “function instruction” Error F040..........3 3.4. Cleaning the combustion pot - weekly ..................3 4. -
Page 5: Technical Data
1. Technical data Pallazza III 520.08 RLU–PGI Heat output range: 2,4 – 8,3 kW Nominal heat output: 8,0 kW Height: 1002 mm Width: 557 mm Depth: 493 mm Weight: 115 kg Diameter of flue elbow: 80 mm Flue gas temperature: 206 °C Testing transport pressure at nominal output: 11 Pa... -
Page 6: Dimensions
2. Dimensions... -
Page 7: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. 3.1. - Page 8 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 9: Maintenance Work
4. Maintenance work WARNING Before starting any cleaning work, the stove must be cool down! The mains plug must be pulled out of the power supply socket (always in advance)! The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality pellets have a low ash content of about 0.2-0.3%. - Page 10 Figure 1: Removing the flue baffle...
- Page 11 Figure 2: Removing the side wall CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions. It is essential to replace defective seals.
-
Page 12: Cleaning The Pellet Container - Annual Maintenance
4.2. Cleaning the pellet container - annual maintenance • Heat the pellet stove until the storage tank is completely empty. • Then the protective grille (1) in the pellet tank may be removed. • Then clean the tank and the intake of the screw conveyor housing with a vacuum cleaner. •... -
Page 13: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list Pallazza III 520.08 RLU–PGI (without trim parts) - Page 14 Description Pos. Piece No. PR Replacement parts list Pallazza III 520.08 RLU–PGI (without trim parts) Complete combustion chamber door/black 1 piece 0551908015300 1 piece Burner cast 0551908005706 Protection grate 1 piece 0551908006709 Combustion chamber cladding left 1 piece 0551908005040 Combustion chamber cladding back 1 piece 0551908005041 Combustion chamber cladding right...
-
Page 15: Detail A1
Screw conveyor 1 piece 0571207005030 Lower screw conveyor bearing 1 piece 0571207005026 1 piece Collet 0089000340005 4 piece Screw UN5950 M5x10 1 piece Air hose 0551908015315 5.2. Detail A1 Description Pos. Piece No. PR Detail A1 Screwing door - Set 1 piece A1.1. -
Page 16: Replacement Parts List Pallazza Iii 520.08 Rlu
Door glass (383x224x4) 1 piece 0551908005305 Seal door 11 mm (1306 mm) 1 piece 0040300110006 5.3. Replacement parts list Pallazza III 520.08 RLU–PGI Description Pos. Piece No. PR Replacement parts list Pallazza III 520.08 RLU–PGI Side wall rear right antracite 1 piece 0551908015510 Side wall middle right black... -
Page 17: Circuit Diagram
6. Circuit diagram Circuit diagram IO 33.3... - Page 18 Description Circuit diagram: No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught Flue gas temperature sensor 35/36 Flame temperature sensor 37/38 Room temperature sensor 39/40 Bottom flame temperature sensor 41/42 43/44 Door contact switch Flue gas fan rotation speed 48-50 Fuse T 3,15 A ignition, induced draught fan, screw...
