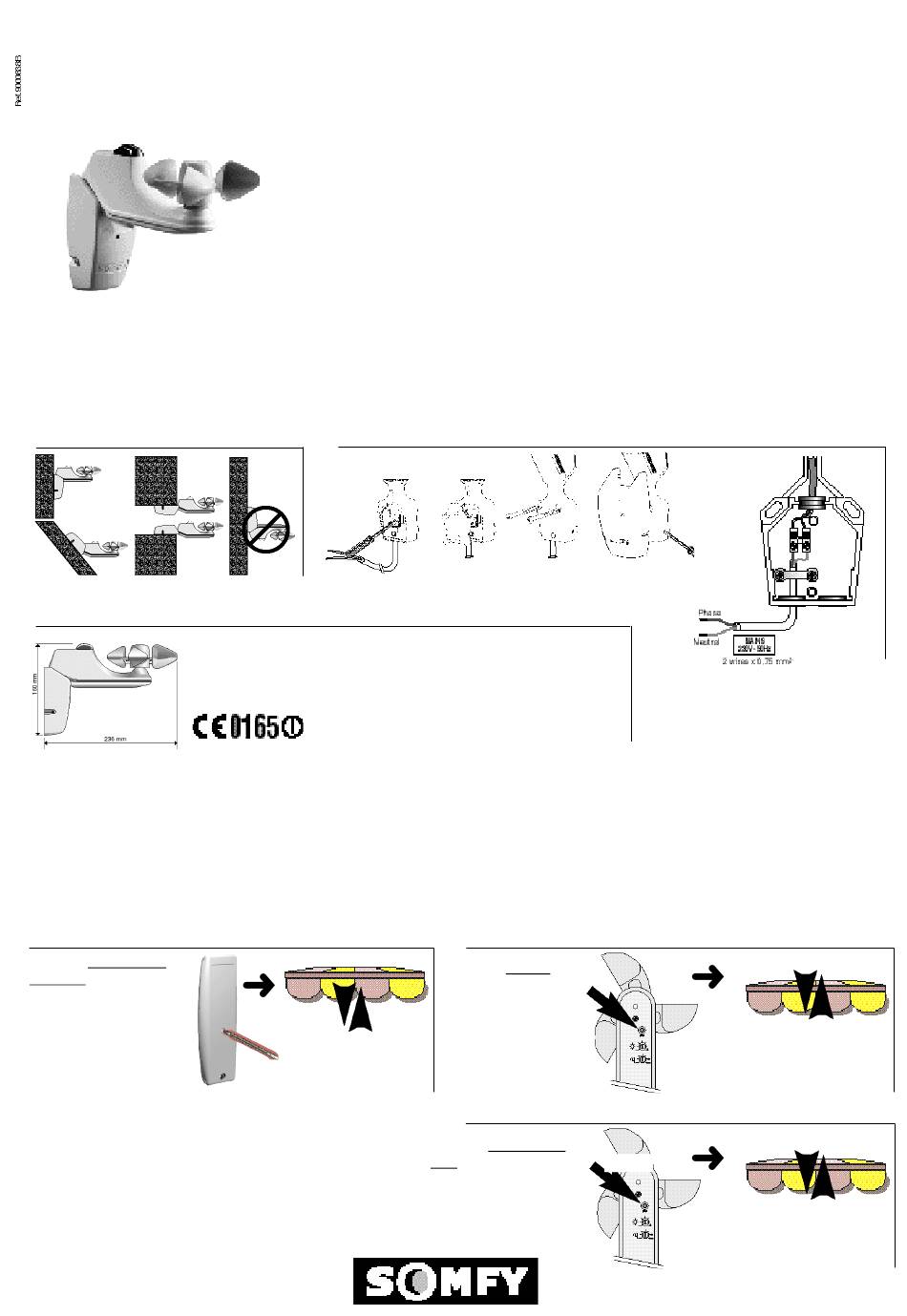

INSTALLATION
1
Installation:
Mounting
Characteristics
2
Programming:
The motor must be in learning mode to record a SOLIRIS sensor RTS.
Up to three SOLIRIS sensors RTS can be memorized in one motor and one SOLIRIS sensor RTS can be memorized
in several motors.
Enter the "learning" mode
Press for more than 2
s e c o n d s on the pro-
gramming button of an
RTS control which is
already memorized in the
m o t o r.
(please refer to the installation
guide of the relevant motor).
inteo

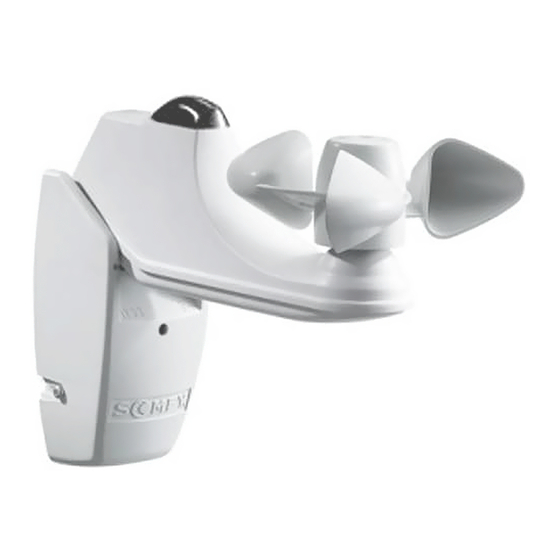

The SOLIRIS sensor RTS is a radio sensor for awnings with an automatic
control according to the daylight intensity and protection against wind dama-
ge.
The wind and sun thresholds can be set directly on the SOLIRIS sensor
RTS.
The SOLIRIS sensor RTS must be used with the OREA RTS and ALTUS
RTS motors.
Cabling
Connect the cable
to the terminal.
Mains supply : 220-240 V~ 50/60 Hz
Protection index : IP34
(cable bushing not drilled. Only guaranted if professionally
installed).
Operating temperature : -20°C to +50°C
Class II product once installed
Hereby, SOMFY, declares that this equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web address www.somfy.com
Heading CE
The awning moves
m o m e n t a r i l y
>2 sec.
( D O W N / U P ) .
the motor is in "learning"
m o d e .
SOLIRIS sensor RTS
Fix the sensor
Place and screw
Put the
to the wall.
on the front box.
cover on
Record or delete a sensor
Press briefly o n
the "prog" button
of the SOLIRIS
sensor RTS.
Erase all the sensors and record a new one
Press for more than 7
s e c . on the "prog" button
of the new SOLIRIS sen-
sor RTS.
g u i d e
The awning moves momentarily
( D O W N / U P ) .
If it is a new sensor : it will be recorded in the
m o t o r.
If the sensor was already recorded : it will be era -
s e d .
>7 sec.
The awning moves momentarily
( D O W N / U P ) .
the memory of the receiver is cleared (all the
previous sensors are erased) and the new
sensor is recorded.
