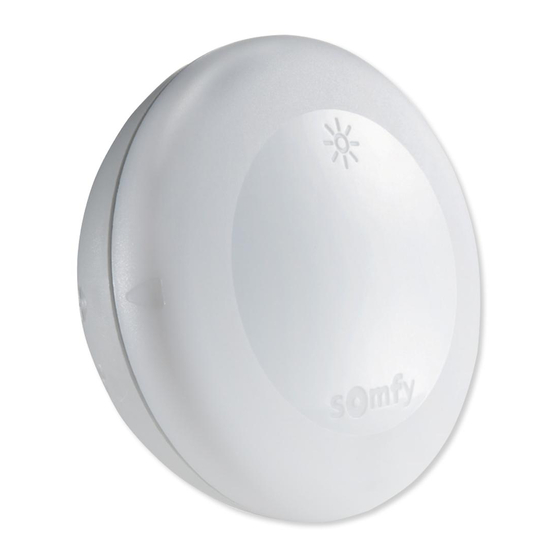

Sunis Outdoor WireFree™ RTS Sun Sensor
Part Number:
9020412
The Sunis Outdoor WireFree™ RTS Sun Sensor provides control of your RTS motorized
awnings, pergolas, exterior screens and rolling shutters based on current sun light levels.
The precise sun level can easily be selected with 8 possible levels of light sensitivity.
Note: The sun function can be enabled/disabled via a Somfy Soliris RTS transmitter.
A transmitter must be provided with each installation to enable/disable the sun function.
Introduction
Alignment
Arrows
Sensor Cover
Red LED
Level 1-4
Battery
Tray
A.
B.
C.
Continued On Next Page
- Sun
+ Sun
Level
Level
Green LED
Level 5-8
Inside Cover
Included:
A.
Sunis RTS sensor with built
in mounting base
B.
2 AA alkaline batteries
C.
2 mounting screws
Button (PROG)
Green Battery
LED
Red Battery
LED
Advertisement
Table of Contents
Related Manuals for SOMFY Sunis WireFree
Summary of Contents for SOMFY Sunis WireFree
- Page 1 The precise sun level can easily be selected with 8 possible levels of light sensitivity. Note: The sun function can be enabled/disabled via a Somfy Soliris RTS transmitter. A transmitter must be provided with each installation to enable/disable the sun function.
- Page 2 Battery Installation 1. Rotate the top cover clockwise to align the arrows on the base and sensor cover. Then open the sensor by lifting the sensor top from the mounting base. (Fig. 1) 2. Install the batteries paying attention to the polarity shown on the base. (Fig. 2) Fig.
- Page 3 Programming Pairing a Sunis Outdoor WireFree™ RTS Sun Sensor to the Shading Solution Back of RTS Transmitter 1. Press the programming button on the RTS transmitter for 3+ sec until the window covering moves. 2. Press the Programming button on the Sunis. (Fig. 6) Programming The green Prog LED will light and the window covering will move.
- Page 4 WARNING: Changes or modifications not...
