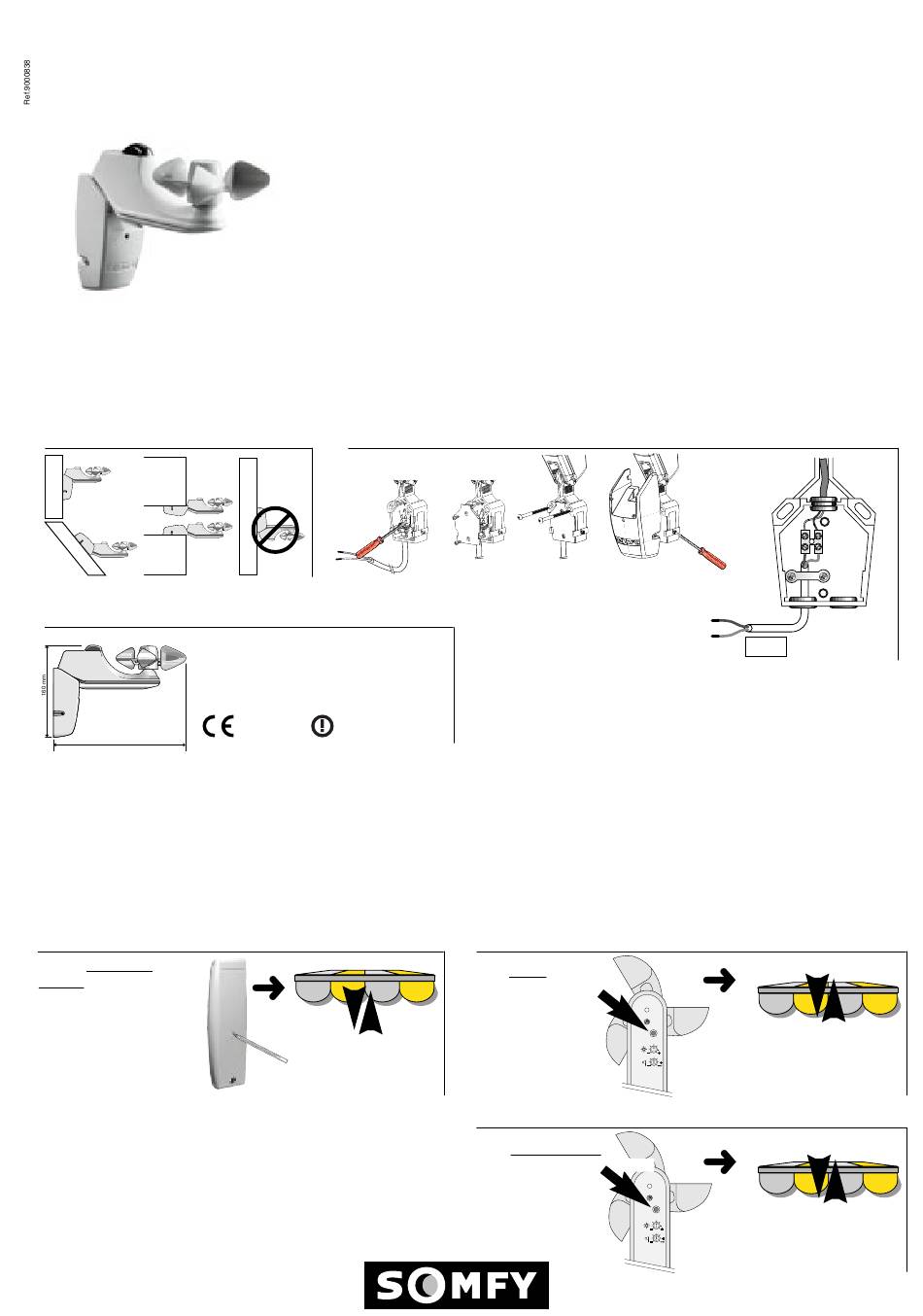

INSTALLATION
1
Installation:
Mounting
Characteristics
236 mm
2
Programming:
The motor must be in learning mode to record a SOLIRIS sensor RTS.
Up to three SOLIRIS sensors RTS can be memorized in one motor and one SOLIRIS sensor RTS can be memorized in several motors.
Enter the "learning" mode
Press for more than 2
seconds on the programming
button of an RTS control
which is already memorized
in the motor.
(please refer to the installation guide of
the relevant motor).
inteo

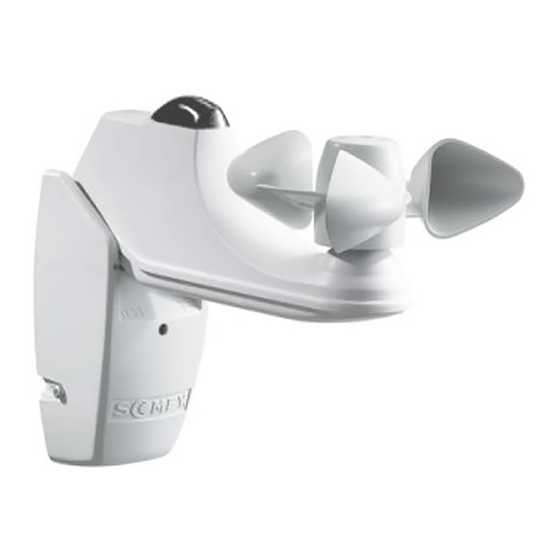

The SOLIRIS sensor RTS is a radio sensor for awnings with an automatic
control according to the daylight intensity and protection against wind damage.
The wind and sun thresholds can be set directly on the SOLIRIS sensor RTS.
The SOLIRIS sensor RTS must be used with the OREA RTS and ALTUS RTS
motors.
Cabling
Connect the cable
to the terminal.
Mains supply : 220-240 V~ 50/60 Hz
Protection index : IP34
Operating temperature : -20°C to +50°C
Class II product once installed
0165
(Find in annex the CE declaration of conformity)
The awning moves
momentarily (DOWN/UP).
>2 sec.
the motor is in "learning" mode.
SOLIRIS sensor RTS
Fix the sensor
Place and screw on
Put the
to the wall.
the front box.
cover on
Record or delete a sensor
Press briefly on the
"prog" button of the
SOLIRIS sensor RTS.
Erase all the sensors and record a new one
Press for more than 7 sec.
>7 sec.
on the "prog" button of the
new SOLIRIS sensor RTS.
®
guide
Phase
Neutral
MAINS
230V - 50Hz
2
2 wires x 0,75 mm
prog
The awning moves momentarily (DOWN/UP).
If it is a new sensor : it will be recorded in the motor.
If the sensor was already recorded : it will be erased.
prog
The awning moves momentarily (DOWN/UP).
the memory of the receiver is cleared (all the previous
sensors are erased) and the new sensor is recorded.
