Sodex Sport S40332 Assembly Instructions

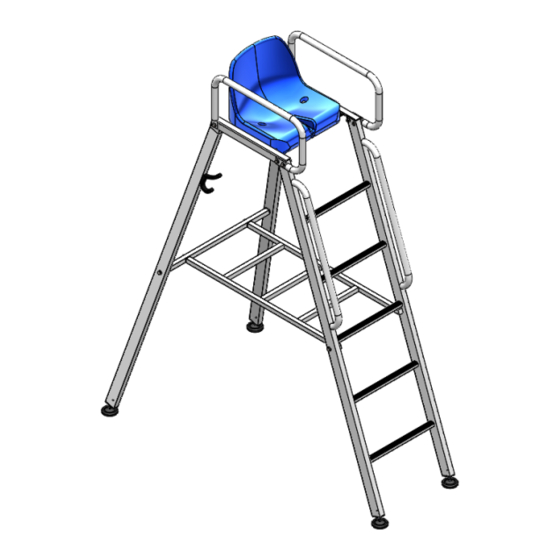

Lifeguard chair for swimming pool

Table of Contents

Download this manual

DESCRIPTION

Aluminium Structure

Powder coated

CONFORM

The assembly time for lifeguard chair is estimated at 50 minutes with 1 people.

The equipement has to be regularly maintained by the owner. It is adviced to:

- Check every week that all the screws are correctly tightened.

- Fix paint defects if the module has been damaged, using the adapted paint, specified by the

manufacturer.

- Replace all damaged or missing parts with a spare part recommended by the manufacturer.

One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has

to be done within the legal period of the reception of the material. The warranty will not apply to:

All degradation during the transport.

All degradation due to use differing from which was intended.

All degradation due to poor maintenance.

Any defect claimed after the end of the legal period.

Any damaged due to a faulty installation and assembly of the module.

Assembly INSTRUCTIONS

LIFEGUARD CHAIR FOR

PRODUCT REF

SWIMMING POOL

S40332

UNIT

Table of Contents

Do you have a question about the S40332 and is the answer not in the manual?

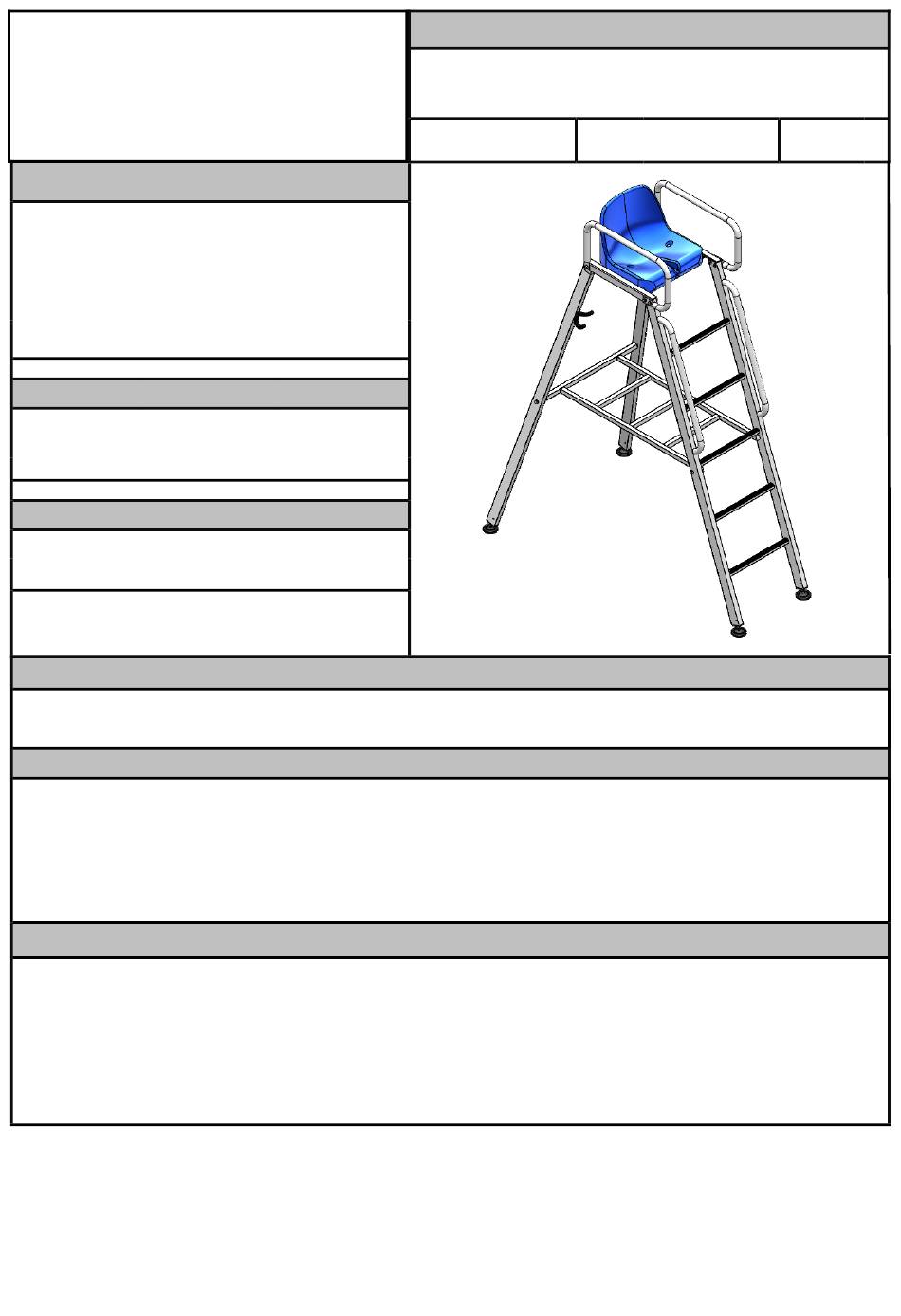

Page 1 ASSEMBLY INSTRUCTIONS LIFEGUARD CHAIR FOR SWIMMING POOL S40332 UNIT PRODUCT REF DESCRIPTION Aluminium Structure Powder coated CONFORM ASSEMBLY TIME The assembly time for lifeguard chair is estimated at 50 minutes with 1 people. MAINTENANCE The equipement has to be regularly maintained by the owner. It is adviced to: - Check every week that all the screws are correctly tightened.
Page 2 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Wrench 17mm INCLUDED ITEMS 1- ASSEMBLY OF THE FEET TO THE HORIZONTAL FRAME AND TO THE SEAT SUPPORT Part-thread SS screw M10x55 + SS Washers 10 + SS locknut M10 Part-thread SS screws M10x50 + SS Washers 10 PVC swivel feet M10 + Rubber protection NECESSARY...
Page 3 ASSEMBLY 2– ASSEMBLY OF THE LADDER Part-thread SS screws M10x55 + SS Washers 10 + SS locknuts M10 Part-thread SS screws M10x50 + SS Washers 10 PVC swivel feet M10 + Rubber protection NECESSARY ITEMS...
Page 4 ASSEMBLY 3– SEAT FIXATION SS Screws M10x50 + SS Washers 10 + SS Lock nuts M10 NECESSARY ITEMS...
Page 5 PACKING LIST LIFEGUARD CHAIR FOR SWIMMING POOL PRODUCT REF S40332 Index B UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing method N° (kg) (mm) S40332-01 Ladder S40332-02 Rear feet Plastic bubbles + S40332-03 Seat support 2020x560x210 cardboard 5 layers...
