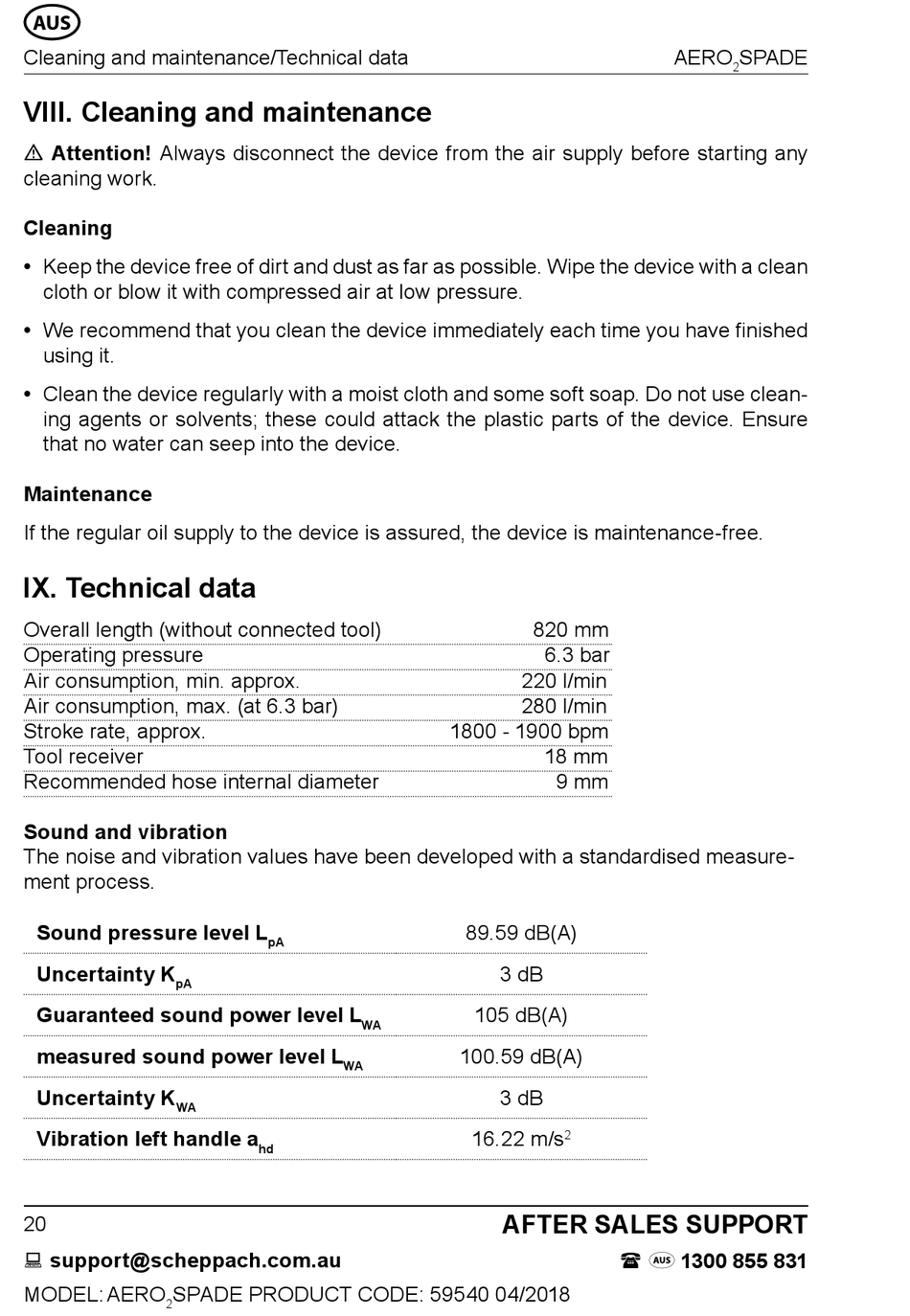

Cleaning and maintenance/Technical data
VIII. Cleaning and maintenance
m Attention! Always disconnect the device from the air supply before starting any
cleaning work.
Cleaning
• Keep the device free of dirt and dust as far as possible. Wipe the device with a clean
cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished
using it.
• Clean the device regularly with a moist cloth and some soft soap. Do not use clean-
ing agents or solvents; these could attack the plastic parts of the device. Ensure
that no water can seep into the device.
Maintenance
If the regular oil supply to the device is assured, the device is maintenance-free.
IX. Technical data
Overall length (without connected tool)
Operating pressure
Air consumption, min. approx.
Air consumption, max. (at 6.3 bar)
Stroke rate, approx.
Tool receiver
Recommended hose internal diameter
Sound and vibration
The noise and vibration values have been developed with a standardised measure-
ment process.
Sound pressure level L
Uncertainty K
pA
Guaranteed sound power level L
measured sound power level L
Uncertainty K
WA
Vibration left handle a
20
 support@scheppach.com.au
MODEL: AERO SPADE PRODUCT CODE: 59540 04/2018
2
pA
WA
WA
hd
820 mm
6.3 bar
220 l/min
280 l/min
1800 - 1900 bpm
18 mm
9 mm
89.59 dB(A)
3 dB
105 dB(A)
100.59 dB(A)
3 dB
16.22 m/s
2
