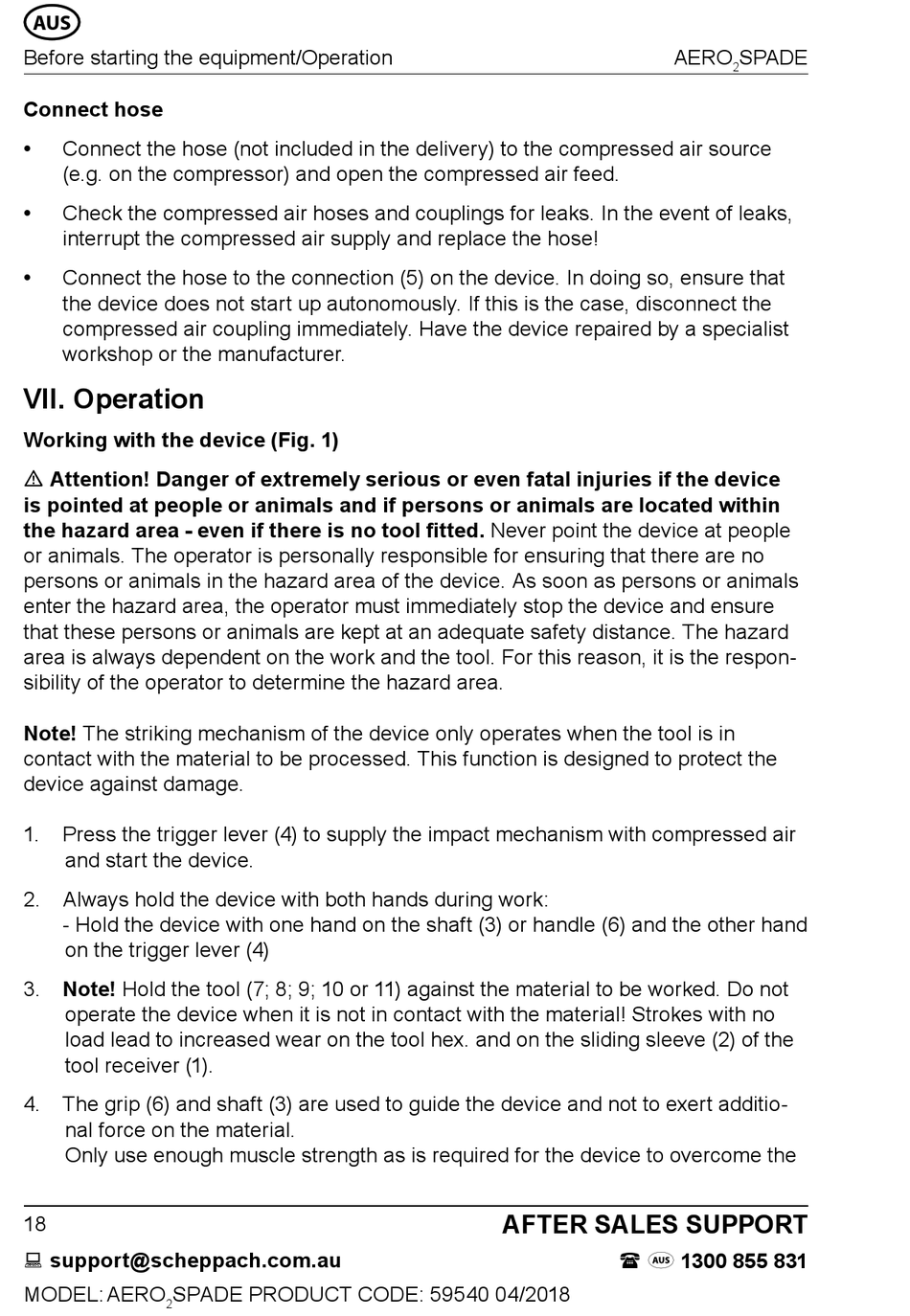

Operation - Scheppach Workzone Titanium+ AERO 2 SPADE Original Instructions Manual

AUS
Before starting the equipment/Operation
Connect hose
• Connect the hose (not included in the delivery) to the compressed air source
(e.g. on the compressor) and open the compressed air feed.
• Check the compressed air hoses and couplings for leaks. In the event of leaks,
interrupt the compressed air supply and replace the hose!
• Connect the hose to the connection (5) on the device. In doing so, ensure that
the device does not start up autonomously. If this is the case, disconnect the
compressed air coupling immediately. Have the device repaired by a specialist
workshop or the manufacturer.
VII. Operation
Working with the device (Fig. 1)
m Attention! Danger of extremely serious or even fatal injuries if the device
is pointed at people or animals and if persons or animals are located within
the hazard area - even if there is no tool fitted. Never point the device at people
or animals. The operator is personally responsible for ensuring that there are no
persons or animals in the hazard area of the device. As soon as persons or animals
enter the hazard area, the operator must immediately stop the device and ensure
that these persons or animals are kept at an adequate safety distance. The hazard
area is always dependent on the work and the tool. For this reason, it is the respon-
sibility of the operator to determine the hazard area.
Note! The striking mechanism of the device only operates when the tool is in
contact with the material to be processed. This function is designed to protect the
device against damage.
1. Press the trigger lever (4) to supply the impact mechanism with compressed air
and start the device.
2. Always hold the device with both hands during work:
- Hold the device with one hand on the shaft (3) or handle (6) and the other hand
on the trigger lever (4)
3. Note! Hold the tool (7; 8; 9; 10 or 11) against the material to be worked. Do not
operate the device when it is not in contact with the material! Strokes with no
load lead to increased wear on the tool hex. and on the sliding sleeve (2) of the
tool receiver (1).
4. The grip (6) and shaft (3) are used to guide the device and not to exert additio-
nal force on the material.
Only use enough muscle strength as is required for the device to overcome the
18
