CF-EA External Antenna

The CF-EA is installed as diverter when there is no transmission possible through a large building,
heavy construction or metal barrier, e.g. if the Danfoss Link™ HC is located in a metal cabinet/box.
• Remove the plastic cover from the antenna connection on the Danfoss Link™ HC (fig. 15).
• Connect the CF-EA (fig. 16).
• Place the CF-EA on the other side of the transmission barrier away from the Danfoss Link™ HC.

5. Configuration

5.1 Adding Danfoss Link™ HC to the system
Note! Adding Danfoss Link™ HC to a system is made from the Danfoss Link™ CC.
For further information, see separate instruction.
Important!
• The Danfoss Link™ HC must be added to the network as a service device. For further instructions on
network inclusion, see more information in the Danfoss Link™ CC Installation Guide.
• Add any dedicated repeater units (CF-RU) BEFORE adding the Danfoss Link™ HC to the wireless network.
Service Options
1
Rooms and Devices
Note! During installation, the distance between the Danfoss Link™ CC and the Danfoss Link™ HC must
not exceed 1.5m.
5.2 Configuring Danfoss Link™ HC
Note! Configuring Danfoss Link™ HC is made from the Danfoss Link™ CC.
For further information, see separate instruction.
Service Options
1
Rooms and Devices
8 2019.09

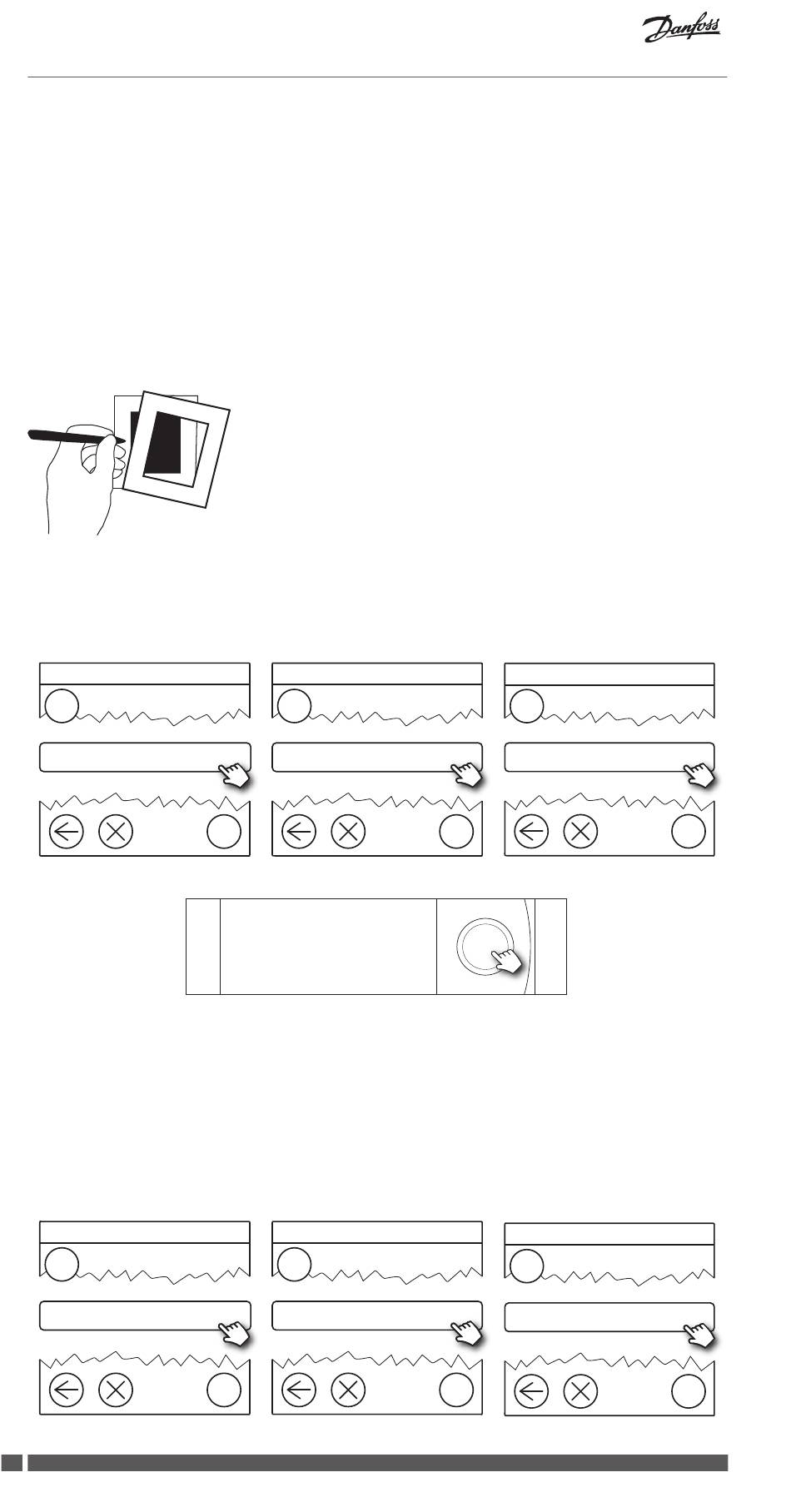

• Remove the front cover of the Danfoss Link™ CC by gently pulling
it off, pull near the edges of the cover.
• Press the SETUP pin for 3 seconds to enter the service area.
Rooms and Devices
2
Add Service Device
?
Click here for adding the Danfoss Link
Rooms and Devices
2
Manage Devices
?
VIFZL55X
Add Service Device
3
Begin Registration
?
™
HC
Manage Devices
3
Configure Device
?
