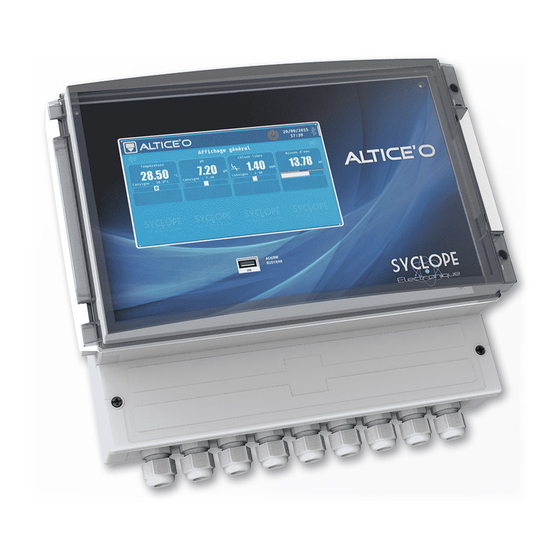

- Page 1 SYCLOPE ALTICE’O ® Controller for public swimming pools (Part 3) Communication instructions Référence : ALT0000 Rev : 1...
- Page 2 64 230 SAUVAGNON - France – Tel : (33) 05 59 33 70 36 Fax : (33) 05 59 33 70 37 Email : syclope@syclope.fr Internet : http://www.syclope.fr © 2017 by SYCLOPE Electronique S.A.S. Subject to modification Programming communication instructions...
-
Page 3: Table Of Contents
Local mode with supervisor SYSCOM V3 as a client connected to a server SYSCOM V3. Erreur ! Signet non défini. Distant connection via telephone line with remote SYSCOM V3 supervisor......6 Connection between SYCLOPE EVASION ® controller and OPTILIGHT ®... -
Page 4: Use Of The Document
The information provided in this document must be strictly observed. SYCLOPE Electronique S.A.S. declines all responsibility in cases where failure to comply with the instructions of this documents is observed. - Page 5 IP65 two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation www.syclope.fr Made in France Label of the manufacturer Particular risks. Read the manual...
-
Page 6: Synoptic Of Communication
MODBUS SLAVE SYCLOPE OTHER MODBUS MODBUS SLAVE SLAVE Connection of one or more SYCLOPE ALTICE’O controllers via the RS485 BUS. ® To connect your SYCLOPE ALTICE’O controller to your computer, we offer a USB / RS485 ® interface module. Reference... - Page 7 No. 1 (MASTER) is connected to the Internet via GPRS / IP / WIFI on mysyclope.com and acts as a gateway to communicate with other systems connected to the RS485 BUS In order to connect your SYCLOPE ALTICE’O ® to the Internet we offer several connection KIT.
- Page 8 "mysyclope.com" website. Depending on the type of modem and the connection to the Internet, the data are transmitted to the "mysyclope.com" site and thus allow real-time management of the operation of the SYCLOPE ALTICE’O ®...
-
Page 9: Wirings
Branchement des modems Page 9/28 IV. Wirings 1) Wiring of the internal RS485 port and the PC converter RS485/USB White : BB’ + RS485 Blue : AA’ - RS485 Black : Ground –LCL All units on the bus must be chained together. Alticé’o side PC side ... -
Page 10: Connection Of The Internat Gsm Modem
Branchement des modems Page 10/28 3) Connection of the internal GSM Modem GMS Socket MODEM SIM card Antenna wire GSM antenna The PIN code of the SIM card must be deactivated. 4) Connection of the externat GSM Modem SIM card Aadaptation plate GSM Module 4 : Tx (Brown) - Page 11 Branchement des modems Page 11/28 5) WIFI modem connections WIFI Socket MODEM Antenna cable WIFI antenna 6) Ethernet Modem (IP) Connections ETHERNET Socket MODEM Network Link Cable Color code EIA 568B 9: Ground Brown: 8 8: Brown Brown / White: 7 7: Brown / White Green: 6 6: Blue...
- Page 12 Stop Bit(s) WIFI NETWORK Address SLAVES The "local" communication corresponds to the RS485 / RS232 (internal) output of your SYCLOPE ALTICE’O ® controller. Here you can change the port communication settings to suit your needs Communcation port: Press left and right arrows to select the physical output of RS485 your controller on which the master is connected.
- Page 13 Port: This port is set by default and there is no need to change it except on request of the SYCLOPE Electronique support. To change it, press the input field to open the 18880 numeric keypad and enter the port you will have received.
- Page 14 Setting ALTICE'O Page 14/28 Synchronizer the timer of the controller: When your system is connected, by checking this box, the date and time of your controller will be automatically set by the website as soon as necessary. COMMUNICATION –TCP/IP CONNECTION COMMUNICATION SETTING LOCAL - MODBUS DHCP Active...
- Page 15 Setting ALTICE'O Page 15/28 COMMUNICATION – WIFI NETWORK COMMUNICATION SETTING SSID LOCAL - MODBUS Speed Channel BLUETOOTH AUTO MYSYCLOPE Country code Mode Code ETSI Infra. TCP/IP CONNECTION Security Disabled WIFI NETWORK Security key ESCLAVES SSID: Name of the wifi network to which you want to connect. To change it, press SSID the input field to open the alphanumeric keypad and enter the name of your network.
- Page 16 SYCLOPE Electronics controllers if they are connected to the RS485 output. You must then enter the addresses and the type of device connected on the bus so that your controller will interrogate them to transmit the data on the website.
- Page 17 Page 17/28 VI. AltiCom programming software 1) Introduction The AltiCom software allows the programming and maintenance of SYCLOPE ALTICE’O ® devices, locally via the RS485 bus, remotely via telephone line and / or via the mysyclope.com website. The software is free in its local communication version and subject to license in the remote version.
- Page 18 Programming the ALTICE'O using ALTICOM Page 18/28 2) Settings Click on the settings button Local Port (Connection via RS485 BUS): - Select the Port Com used on your computer - Select speed (Same as the device connected to the BUS) - Select the parity (Same as the device connected to the BUS) Via internet (Internet connection to a machine connected to mysyclope.com): - Enter your login details on the website.
- Page 19 To voluntarily erase the calibration of a probe, you must select the corresponding reset check box. Please refer to the standard programming instructions for the functional parameterization of the SYCLOPE ALTICE’O ® Programming communication instructions...
- Page 20 Programming the ALTICE'O using ALTICOM Page 20/28 5) Programming the Communication a) Local communication in ModBus RTU This part makes it possible to modify the port, the speed, the parity as well as the number (ModBus address) of the controller. These configurations correspond to the "CONFIGURATION - MODBUS "...
- Page 21 Programming the ALTICE'O using ALTICOM Page 21/28 b) Communication with website in GPRS mode Enter the APN of your SIMS card The Access Point Name (APN) depends on your chip card provider. Do not forget to ask for it to be able to set up your connection.
- Page 22 Controllers linking It is possible to connect another device of the SYCLOPE product range to the website by using one of the connection modes above, and on the same site connect up to five other devices using the linking function.
- Page 23 Page 23/28 VII. Access to the website www.mysyclope.com 1) Activating your subscription You must provide some informations to your dealer or to "SYCLOPE Electronique" technical service to activate your connection. Record the serial number of the device to be connected.
- Page 24 Programming and maintenance with SYSCOM V3 Page 24/28 Click on the "Systems" tab on the left side panel. Browse the sites and/or connected devices. The data sent by the device are now recorded on the website. Programming communication instructions...
- Page 25 MODBUS communication registers Page 25/28 VIII. MODBUS communication registers 1) Convention and reading aid for modbus table Register: The information in the table corresponds for example to register 4001: 4xxx "Read Holding register" reading mode 03 function of modbus. 0001 Sets the ModBus register number and not the registry address. To set whether your system requires entering the address or the registry, try entering the value 0 as the polling address If your system permits it you should use the notation address = Register below - 40001 =>...
- Page 26 MODBUS communication registers Page 26/28 Name Register Format Size R/W Description Hour & Minute 40001 unsigned integer Hour 8bits MSB – Minute 8bits LSB 40002 unsigned integer Day of the week Date 40003 unsigned integer Date Month 40004 unsigned integer Month Year 40005...
- Page 27 MODBUS communication registers Page 27/28 Input current of E2 40045 unsigned integer Current value *20 / 734 =value in mA Input current of E3 40046 unsigned integer Current value *20 / 734 =value in mA Input current of E4 40047 unsigned integer Current value *20 / 734 =value in mA Input current of E5...
- Page 28 Z.I. Aéropole pyrénées Rue du Bruscos 64 230 SAUVAGNON - France – Tel : +33 (0) 559 337 036 Fax : +33 (0) 559 337 037 Email : contact@syclope.fr Internet : http://www.syclope.fr © 2017 by SYCLOPE Electronique S.A.S. Programming communication instructions...
