Summary of Contents for SYCLOPE ODISEA

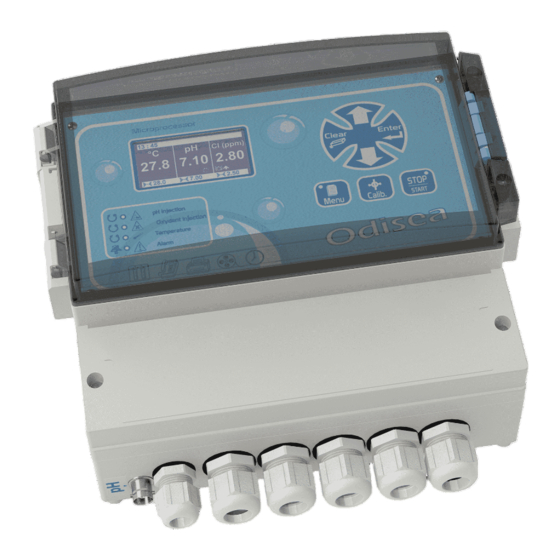

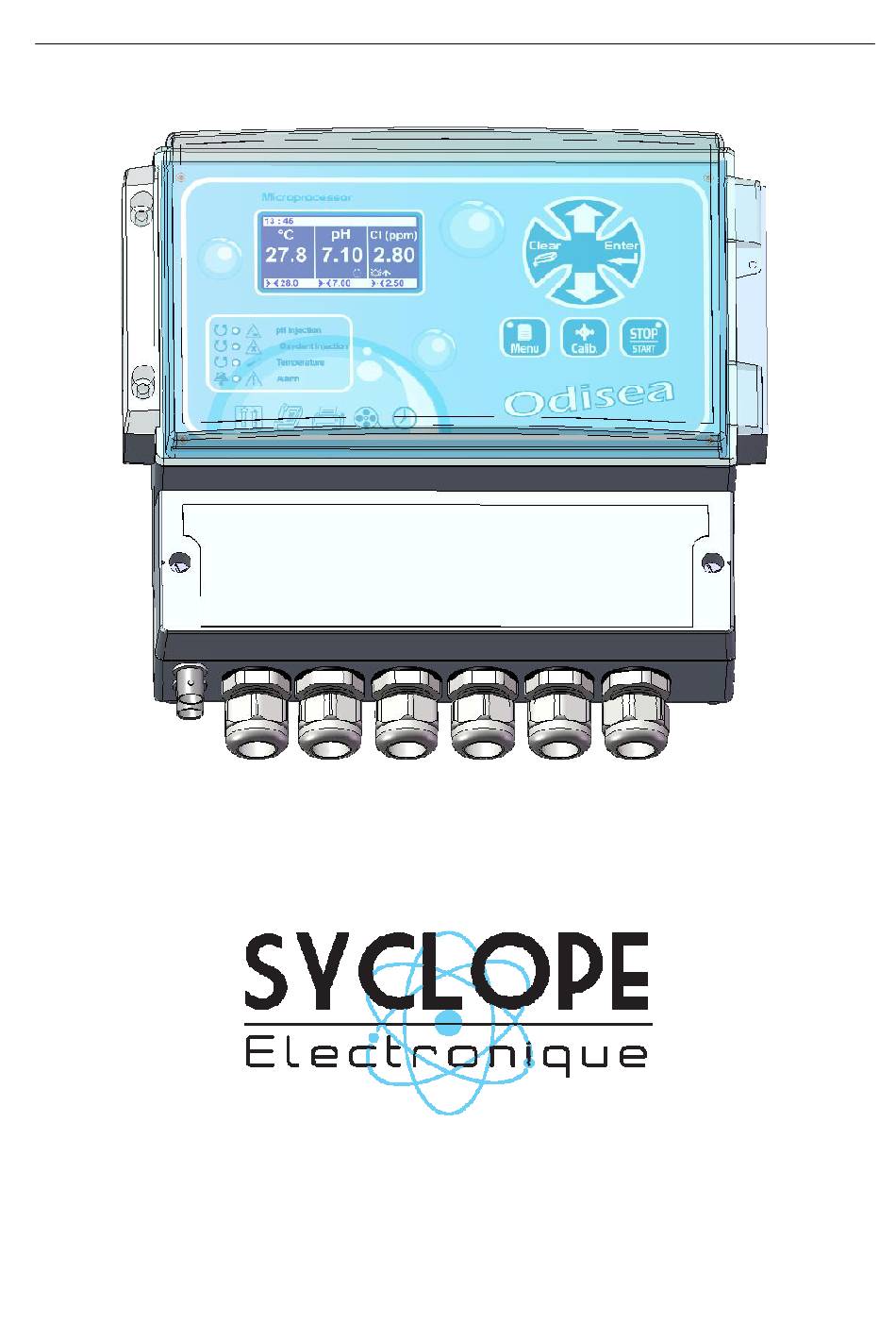

- Page 1 ® SYCLOPE ODISEA Controller for public swimming pools (Part 2) Programming instructions Reference : ODI0001 and ODI0002 Rev : 2...
- Page 2 64 230 SAUVAGNON - France – Tel : (33) 05 59 33 70 36 Fax : (33) 05 59 33 70 37 Email : syclope@syclope.fr Internet : http://www.syclope.fr © 2010 by SYCLOPE Electronique S.A.S. Subject to modifications ® Programming instructions SYCLOPE ODISEA...
-
Page 3: Table Of Contents
Calibration of a measurement parameter ................18 Programming of the general timers..................20 Programming the scale of analogue outputs .................23 Programming the alarm thresholds ..................24 Specialist Menu.........................25 Factory code.........................25 Configurations ........................26 Initializations ........................29 Table of events and alarms histories ..................31 ® Programming instructions SYCLOPE ODISEA... -
Page 4: Use Of The Document
Please read this document in its entirety before starting to program your controller device, in order to ensure the safety of the swimmers, users and equipment. The information provided in this document must be strictly observed. SYCLOPE Electronique S.A.S. declines all responsibility in cases where there is a failure to comply with these instructions of this document. -
Page 5: Safety And Environmental Instructions
All other uses are considered to be not conforming and must therefore be forbidden. SYCLOPE Electronique S.A.S. will not be responsible in any case for any damages that result from bad uses. -
Page 6: Description Of The Human-Machine Interface
Enter button: confirms the settings or moves forward in the programming menus Up button: can be used to scroll through the menus and increase values Down button: can be used to scroll through the menus and reduce values ® Programming instructions SYCLOPE ODISEA... -
Page 7: Internal Connections
Relay protection fuse (glass 5x20 2A time-lag fuse) Connection terminal blocks (see diagram at the bottom of the page) Modem connector Location for modem socket (optional) Printer connector Connector for ribbon cable to the top card 3) Connection terminal boards ® Programming instructions SYCLOPE ODISEA... -
Page 8: Structure And Index Of The Programming Menus
II. Structure and index of the programming menus 1) Menu structure ® The programming of the SYCLOPE ODISEA is broken down into three menu levels. It is possible to generate access codes for each level. From the simple user level to the specialist level, the device provides access to increasingly technical settings for the operation of the machine and for the safety of the process and people. -
Page 9: User Menu
Technician level Langue/Language/… Langue/Language/… Set the time Set the time Displays Displays Histories Histories …….…..User Menu.. …..… …….…..User Menu..… ..… Langue/Language/… Technician level Francais Langue/Language/… English Set the time Deutsch Displays Espanol Histories Italiano Portuguese ® Programming instructions SYCLOPE ODISEA... -
Page 10: Time Adjustment
Choice of displays Technician level Langue/Language/… Chlorine Set the time pH/Chlorine Displays Flowmeter Histories 14 :44 ODISEA °C Cl (ppm) 27.5 7.20 2.70 -> . <- 28.0 -> . <- 7.40 -> . <- 1.50 ® Programming instructions SYCLOPE ODISEA... -
Page 11: Histories
23/02/09 4:20 pm no.: 05 Chlorine threshold alarms Press “Up” and “Down” to scroll through the records. See the table at the final page for the meaning of the alarm n°: XX ® Programming instructions SYCLOPE ODISEA... - Page 12 …….…..Histories Menu..…..… Printer output The events data are deleted. Reset events Reset data Reset alarms Nothing is done. Yes : Enter No : Esc ► Do the same to delete the other types of records. ® Programming instructions SYCLOPE ODISEA...
-
Page 13: Maintenance Of The Device
Activation… Factory reset Inactivation… Modem Maintenance management Device number a) LEDs …….…..User Menu..… ..… …….… ..User Menu..… ..… Technician level Technician level Langue/Language/… Language Set the time Set the time Displays Displays Histories Histories Maintenance ® Programming instructions SYCLOPE ODISEA... - Page 14 Set the time Displays Displays Histories Histories Maintenance …….…..System tests..…..… …….…..System tests..…..… LEDs Analogue outputs Relays Analogue outputs Output IA1…: 00.0 mA Printer Output IA2…: 00.0 mA Set values to simulate the analogue outputs ® Programming instructions SYCLOPE ODISEA...
- Page 15 Set the time Set the time Displays Displays Histories Histories Maintenance …….…..System tests..…..… …….…..System tests..…..… LEDs Printer output Relays Analogue outputs Printing in process Printer ► Check that "Printer test" has printed correctly. ® Programming instructions SYCLOPE ODISEA...
-
Page 16: Technician Menu
Modification of the code Allows the existing code to be changed. …….…..User Menu..… ..… …….…..Technician Menu..…..… Technician level Specialist level Langue/Language/… Technician code Set the time System date Displays Setting(s) Histories Calibrations General timers Analogue outputs ® Programming instructions SYCLOPE ODISEA... -
Page 17: Adjustment Of The System Date
Displays Setting(s) Histories Calibrations General timers Analogue outputs …….…..Technician Menu..…..… …….…..Technician Menu..…..… Specialist level System date Technician code System date Year : 09 Month: 02 Setting(s) Calibrations Date: 10 Day: 3 General timers Analogue outputs ® Programming instructions SYCLOPE ODISEA... -
Page 18: Programming A Setting Point
Technician code Set the time System date Displays Setting(s) Histories Calibrations General timers Analogue outputs …….…..Technician Menu..…..… …….…..Technician Menu..…..… Specialist level General settings Technician code Temperature System date Setting(s) Rédox Calibrations Chlorine General timers Analogue outputs ® Programming instructions SYCLOPE ODISEA... - Page 19 To delete the recorded calibration …….…..Technician Menu..…..… …….…..Technician Menu..…..… pH calibration pH calibration pH=7.00 pH=7.00 Gain Gain Factory values Factory values Calib. in process… This process allows you to return to the factory value, which is exempt from calibration. ® Programming instructions SYCLOPE ODISEA...
-
Page 20: Programming Of The General Timers
Timers Winter …….….. Technician Menu..… ..… Cycles of the seasons Summer Adjust the summer/winter cursors to define the start of J F M A M J J A S O N D the seasons. Winter ® Programming instructions SYCLOPE ODISEA... - Page 21 ► Activate the "Reset timers" line to delete all the recorded timers. To control the filter motor, the user must program an available relay of the motor in order to activate the motor (see Chapter VII Paragraph 2: Prog. relays). ® Programming instructions SYCLOPE ODISEA...
- Page 22 Flow meter Flow meter No. of pulses : 050 Set the number of pulses from the flow meter contact (to be connected to the meter input WM) from which the central unit will inject the flocculant. ® Programming instructions SYCLOPE ODISEA...
-
Page 23: Programming The Scale Of Analogue Outputs
Allows you to define the scales (bottom and top) of the analogue outputs. …….…..User Menu..… ..… ……..Technician Menu.. …..… Technician level Specialist level Langue/Language/… Technician code Set the time System date Displays Setting(s) Histories Calibrations General timers Analogue outputs ® Programming instructions SYCLOPE ODISEA... -
Page 24: Programming The Alarm Thresholds
System date Temperature Setting(s) Calibrations Chlorine General timers Analogue outputs Alarms …….…..Technician Menu..… ..… Alarm thresholds Min.….…(pH): 6.80 Adjust the alarm thresholds Max.……(pH): 7.90 ► Follow this same process to adjust the other alarm thresholds. ® Programming instructions SYCLOPE ODISEA... -
Page 25: Specialist Menu
Allows you the existing code to be changed. …….…..Specialist Menu.…..… …….…..Specialist Menu..…..… Factory Code Configurations New code : 0 . . . Initializations Version: 3.01 Enter your new code to access specialist level ® Programming instructions SYCLOPE ODISEA... -
Page 26: Configurations
Allows you to activate the flocculant management function. …….…..Specialist Menu.…..… …….…..Specialist Menu.…..… Configurations Floculant control Filter timers Activation… Flocculant Inactivation… Meter input Flow switch Adjustment operation Prog. relays Flocculant management is now active. ® Programming instructions SYCLOPE ODISEA... - Page 27 Programming controls Proportional band(s) Temperature Cycle time pH+/pH- adjustment Redox (ORP) Chlorine …….…..Spécialist Menu .…..… Régulation Temp. Adjust value proportional band Prop. Band (Xp) : 010 ► Follow this same process to adjust the other parameters. ® Programming instructions SYCLOPE ODISEA...
- Page 28 Prog. relays …….…..Specialist Menu.…..… …….…..Specialist Menu.…..… Relay 4 powered Relay 4 powered None General alarms Filter timers Temp. alarms Reverse pH adjustment pH alarms General alarms Redox alarms Temp. alarms Chlorine alarms pH alarms Flocculant ® Programming instructions SYCLOPE ODISEA...
-
Page 29: Initializations
Allows you to reset the machine, activate the modem, define the case number for communication and activate machine maintenance. …….…..Specialist Menu.…..… …….…..Specialist Menu. … ..… Factory Code Initializations Configurations Factory reset Initializations Modem Version: 3.01 Maintenance management Device number ® Programming instructions SYCLOPE ODISEA... - Page 30 Allows you to identify the device unit in order to establish communication. …….…..Specialist Menu. … ..… …….…..Specialist Menu.…..… Initializations Factory reset Identification Modem Maintenance management Number: 0 0 0 Device number Configure the device unit identifier number ® Programming instructions SYCLOPE ODISEA...
-
Page 31: Table Of Events And Alarms Histories
Measuring in error or sensor missing Alarm threshold Temperature Abroad thresholds set Alarm threshold pH Abroad thresholds set Alarm threshold Redox (ORP) Abroad thresholds set Alarm threshold Chlorine Abroad thresholds set Alarm threshold Bromine Abroad thresholds set ® Programming instructions SYCLOPE ODISEA... - Page 32 Table of events and alarms histories Page 32/33 ® Programming instructions SYCLOPE ODISEA...
- Page 33 Rue du Bruscos 64 230 SAUVAGNON - France – Tel : (33) 05 59 33 70 36 Fax : (33) 05 59 33 70 37 Email : syclope@syclope.fr Internet : http://www.syclope.fr © 2008 by SYCLOPE Electronique S.A.S. ® Programming instructions SYCLOPE ODISEA...
