Getting Started

80A03 TekConnect Probe Interface Module Instruction Manual
The 80A03 TekConnect Probe Interface Module is an adapter that allows you to
use TekConnect probes with 80E0X sampling modules and the following main
instruments (mainframes):
DSA8200 Digital Serial Analyzer
CSA8000, CSA8000B, and CSA8200 Communications Signal Analyzers
TDS8000, TDS8000B, and TDS8200 Digital Sampling Oscilloscopes
The interface is comprised of an enclosure that houses a compartment for one
80E0X electrical sampling module and two TekConnect probe inputs. The
interface connects to the mainframe through a permanently attached 1 meter
extender cable.

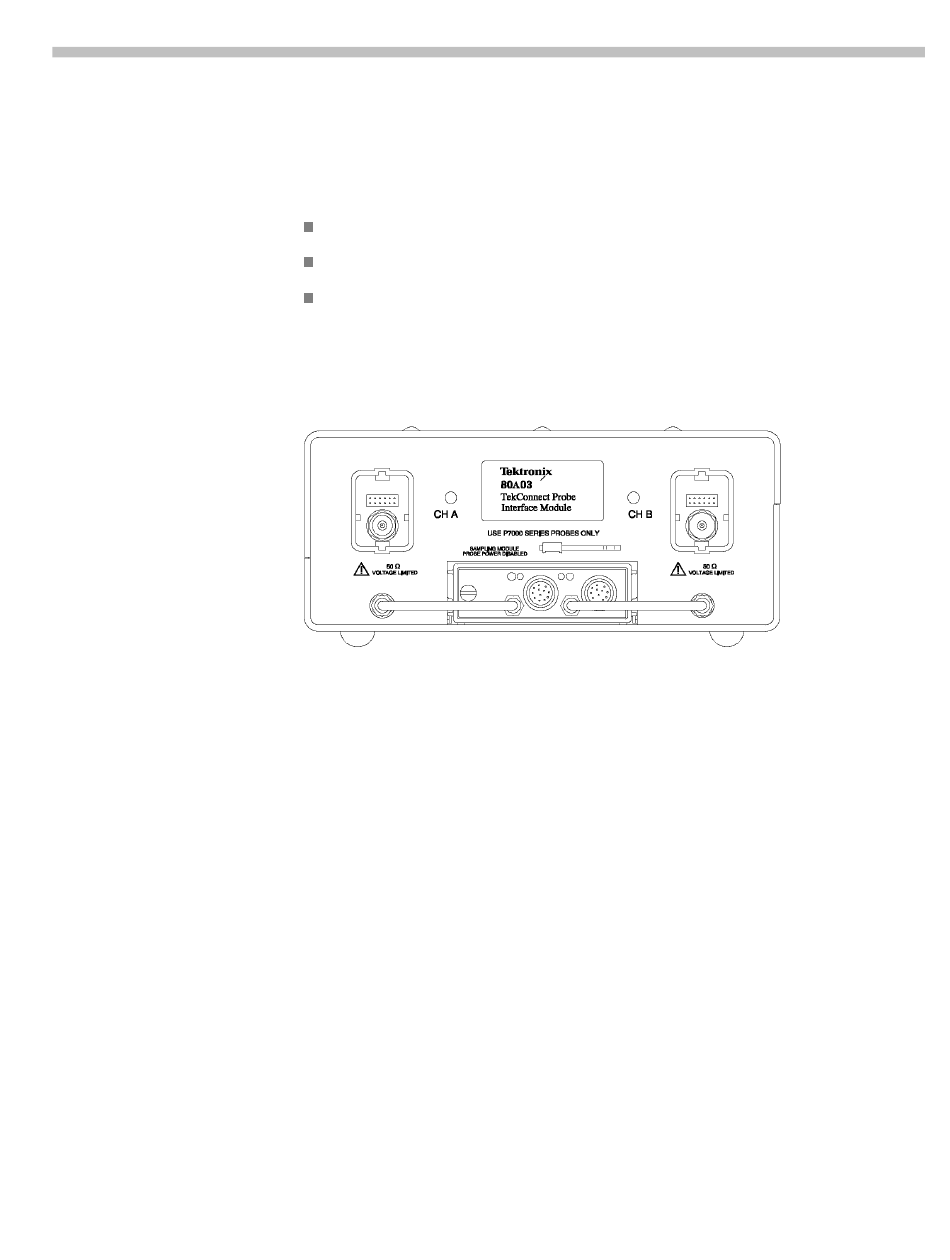

Figure 1: The 80A03 TekConnect Probe Interface Module

The 80A03 TekConnect Probe Interface Module can also be used as a
general-purpose sampling module extender cable. Simply disconnect the short
semi-rigid cables on the front panel of the interface and use the sampling module
inputs directly.
