Instruction Manual
80A03
TekConnect Probe Interface Module
071-1298-03
Revision A
This document applies to firmware version 2.3
and above.
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80A03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix 80A03

Summary of Contents for Tektronix 80A03

  • Page 1 Instruction Manual 80A03 TekConnect Probe Interface Module 071-1298-03 Revision A This document applies to firmware version 2.3 and above. Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so.
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material.
  • Page 3 Warranty 2 Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 5 ........80A03 TekConnect Probe Interface Module Instruction Manual...

  • Page 6: Table Of Contents

    Table of Contents List of Figures Figure 1: The 80A03 TekConnect Probe Interface Module ..Figure 2: TekConnect Probe Interface Module inputs and outputs ......... . .
  • Page 7 Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. 80A03 TekConnect Probe Interface Module Instruction Manual...
  • Page 8 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: CAUTION Refer to Manual 80A03 TekConnect Probe Interface Module Instruction Manual...
  • Page 9 Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. 80A03 TekConnect Probe Interface Module Instruction Manual...
  • Page 10 Service Safety Summary 80A03 TekConnect Probe Interface Module Instruction Manual...
  • Page 11 European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of Hazardous This product has been classified as Monitoring and Control equipment, and is Substances outside the scope of the 2002/95/EC RoHS Directive.
  • Page 12 Environmental Considerations viii 80A03 TekConnect Probe Interface Module Instruction Manual...

  • Page 13: Figure 1: The 80A03 Tekconnect Probe Interface Module

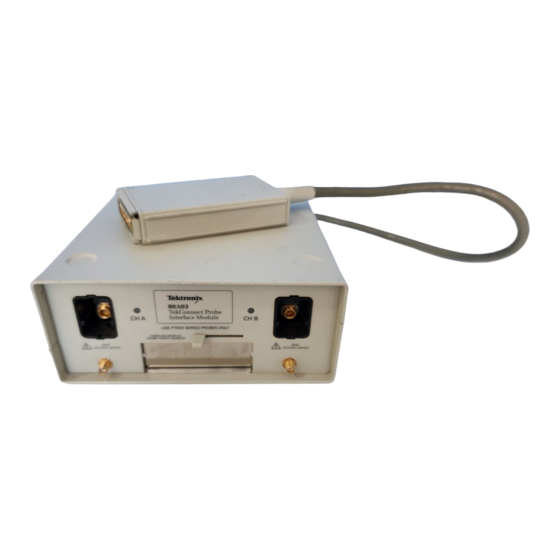

    Getting Started The 80A03 TekConnect Probe Interface Module is an adapter that allows you to use TekConnect probes with 80E0X sampling modules and the following main instruments (mainframes): H DSA8200 Digital Serial Analyzer H CSA8000, CSA8000B, and CSA8200 Communications Signal Analyzers...
  • Page 14 80E06 Single channel, 70 GHz Requires 2.4/1.85 mm to 2.92 mm SMA adapter (Tektronix part number 011- 0157- 00, standard with these sampling modules). Also requires custom cable not available from Tektronix: use a short high-quality SMA cable or fabricate your own semi-rigid cable.

  • Page 15: Table 1: 80A03 Features And Standard Accessories

    Getting Started The 80A03 disables the Probe Power interface on the front of the sampling modules. Do not use the 80A03 with probes that connect directly to the Probe Power, such as the P6209 and P6207. There is also no support for TekProbe Level 2 legacy probes that utilize the TCA-1MEG, TCA-BNC, and TCA75 adapters.

  • Page 16: Figure 2: Tekconnect Probe Interface Module Inputs And Outputs

    Getting Started Optional Accessories No optional accessories are available for the 80A03 TekConnect Probe Interface Module. Installing the TekConnect Probe Interface Module Figure 2 shows the TekConnect Probe Interface Module and locations of the sampling module and probe inputs. The extender cable on the rear of the interface connects to the mainframe front panel.

  • Page 17: Figure 3: Extender Cable Connection To The Mainframe

    Mainframe Hold-down screw Figure 3: Extender cable connection to the mainframe NOTE. Do not use any additional extender cables to connect the 80A03 TekConnect Probe Interface Module to the mainframe. 80A03 TekConnect Probe Interface Module Instruction Manual...

  • Page 18: Figure 4: Installing The Sampling Module Into The Tekconnect Probe Interface Module

    Figure 4: Installing the sampling module into the TekConnect Probe Interface Module NOTE. To remove the sampling module, first loosen the hold-down screw; then use the ejector lever on the interface module to eject the sampling module. 80A03 TekConnect Probe Interface Module Instruction Manual...

  • Page 19: Figure 5: Connecting The Sampling Module

    For information on proper installation and torquing techniques, refer to your module user manual. Figure 5: Connecting the sampling module CAUTION. The semi-rigid SMA connector cables used on the 80A03 TekConnect Probe Interface Module are not compatible with the input connections of 80E01and 80E06 sampling modules.

  • Page 20: Figure 6: Installing Tekconnect Probes

    Latch button Figure 6: Installing TekConnect probes NOTE. Use thumb screws to secure the probe on those models that have the option. 80A03 TekConnect Probe Interface Module Instruction Manual...
