Exsys EX-47999 Instructions

DB9-Female to TB5 RS422/485 Adapter

1. Introduction

Thank you for purchasing this DB9-Female to 5-pin Terminal Blocks
RS422/485 Adapter. It
signals from the DB9 (male) to 5-pin 3.5mm Terminal Blocks. It
provides a flexible and reliable conversion for a DB9 based
RS422/485 port.
Features:
Converts the DB9-male RS422/485 port to 5-pin Terminal Blocks
with its DB9-female Connector
Supports RS422, RS485 4-wire and RS485 2-wire modes
Supports Signal Ground over Terminal Blocks
No Driver Required for All Operating Systems

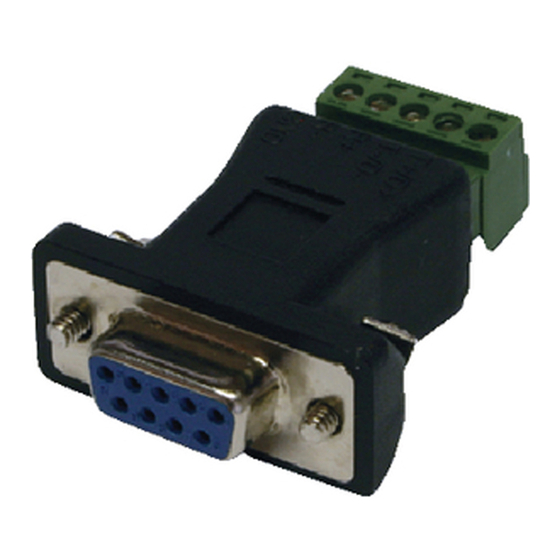

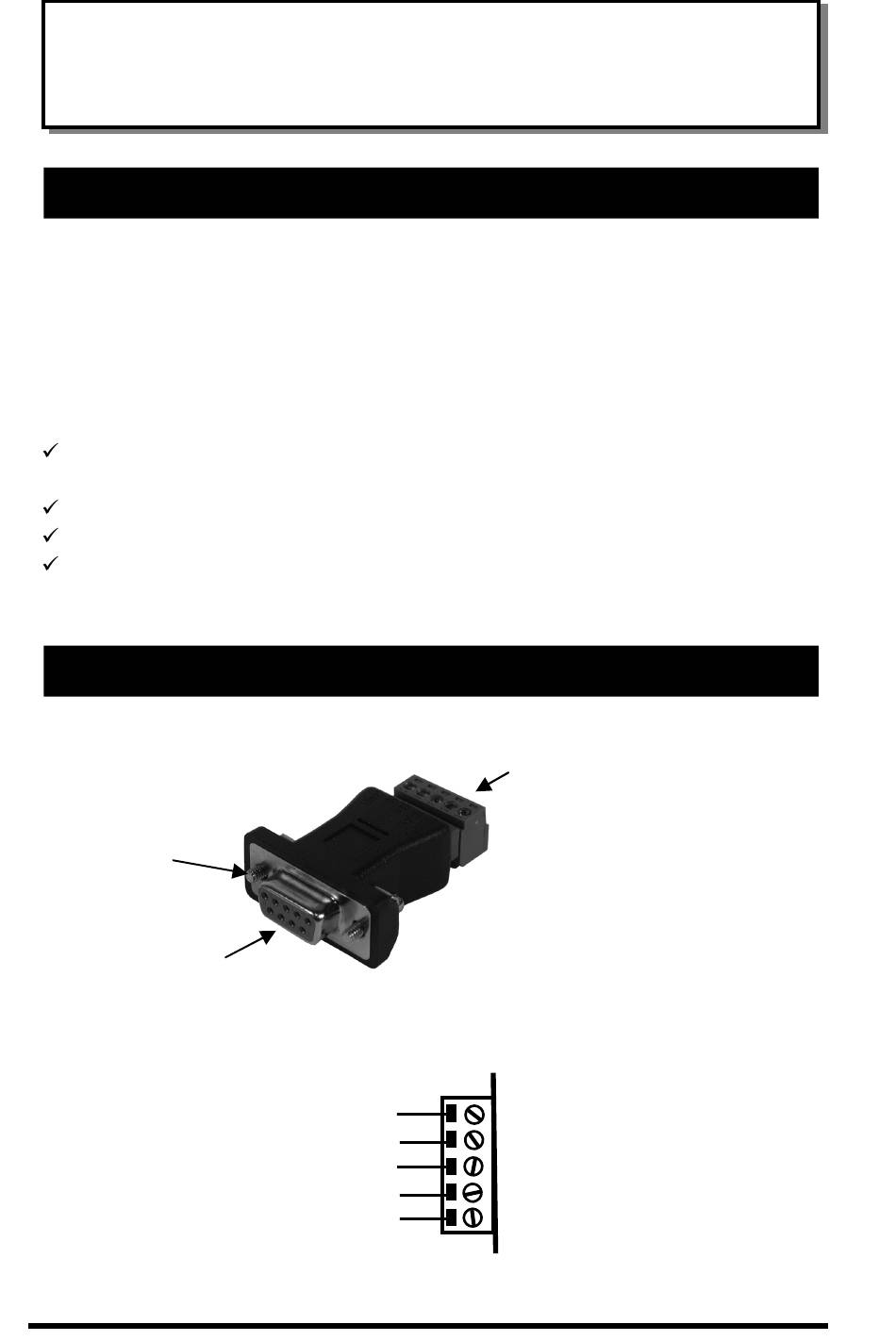

2. DB9 to 5-pin Terminal Blocks Pin Assignment

Secure lock
screws
DB9 female
connector
5-pin Terminal Blocks Pin Assignment:
EX-47999
is designed to convert the RS422/485
TXD+(DATA+)
TXD-(DATA-)
RXD+
RXD-
GND
3.5mm pitch terminal
block connector
-TXD+(DATA+)
-TXD-(DATA-)
-RXD+
-RXD-
-GND
1
