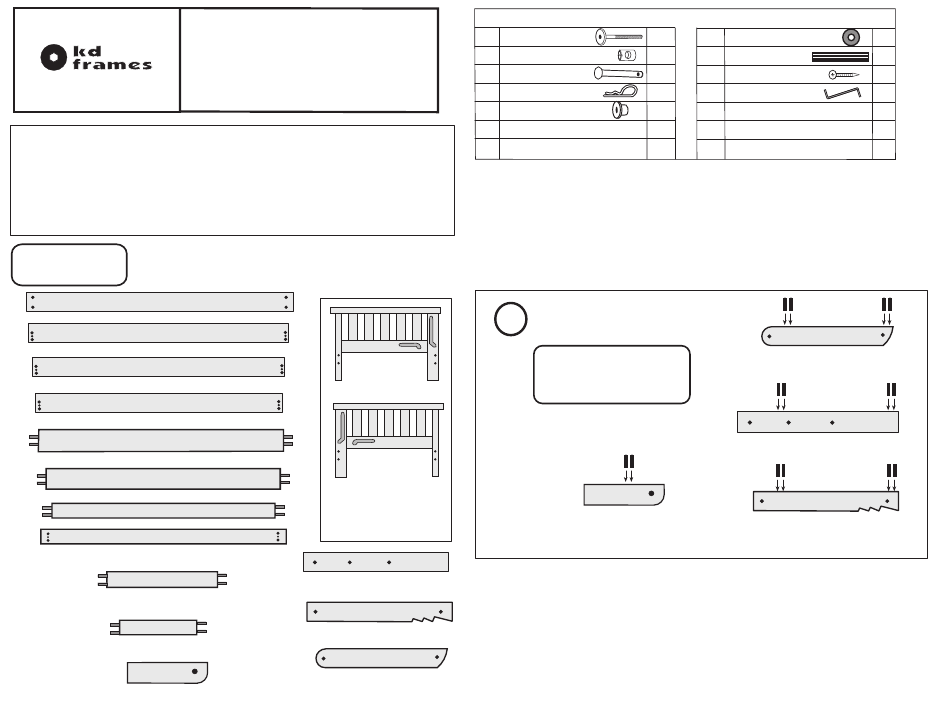

Instructions for
Manufactured by
Savannah Lounger
Twin #7244
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
Tools needed:
#2 Phillips Screw Driver
Small Hammer
PARTS
(2) L-40 STRETCHER (40")
(2) L-39 BACK SLAT (39")
(2) L-37 SEAT SLAT (37")
(2) L-35 LOUNGER SLAT (35")
(2) LM-35 BACK MIDDLE SLAT (35")
(2) LM-33 SEAT MIDDLE SLAT (33")
(1) LM-31 LOUNGER MIDDLE SLAT (31")
(1) L-41 LEG CONNECTOR (35")
(4) L-16 SLAT CAPS (18")
(2) L-17 LOUNGER SLAT CAPS (10")
(2) L-14 LOUNGER LEG (12")
H-1
H-3
H-8
H-5
H-9
L-1 RIGHT ARM
L-2 LEFT ARM
Note:
Arms are packed
in a seperate box.
(2) L-20 BACK RAILS (27")
(2) L-21 SEAT RAILS (27")
(2) L-22 LOUNGER RAILS (24")
H A R D W A R E
8
3" BOLT
CROSS DOWEL
8
10
CLEVIS PIN
6
HAIR PIN
4
PLASTIC ROLLER
1
Use a small hammer to tap
Wood Dowels (H-11) all the
way into holes as shown.
L-14 LOUNGER LEG (2)
L I S T
H-6
WASHER
28
H-11 WOOD DOWEL
H-19 1 1/2" SCREW
14
H-10
HEX WRENCH
L-22 LOUNGER RAILS (2)
L-20 BACK RAILS (2)
L-21 SEAT RAILS (2)
6
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for kd frames Savannah 7244
Summary of Contents for kd frames Savannah 7244
- Page 1 Instructions for H A R D W A R E L I S T Manufactured by 3” BOLT WASHER Savannah Lounger CROSS DOWEL H-11 WOOD DOWEL CLEVIS PIN H-19 1 1/2” SCREW Twin #7244 394 Dairy Pak Rd. • Athens, GA 30607 HAIR PIN H-10 HEX WRENCH...
- Page 2 Find the (2) LM-35 Back Middle Slats and Find the (2) LM-33 Seat Middle Slats Find the LM-31 Lounger Middle Slat and press them into (2) L-16 Slat Caps. press them into (2) L-16 Slat Caps. and press into (2) L-17 Lounger Slat Caps.
- Page 3 • Pull forward on the Seat to convert to the bed position. • Attach the Lounger to the Seat using Clevis Pins (H-8). • Attact the Lounger Legs (L-14) to the Lounger using Clevis Pins (H-8). Attach the Plastic Rollers (H-9) to the •...
- Page 4 Operation: To convert from bed to chair, you must start in the bed position. First, fold Lounger Legs under Lounger section To convert from bed position to lounger, lift up the back section. Next, lift Seat and fold Lounger section uner. Then fold Lounger Legs under Lounger section.
