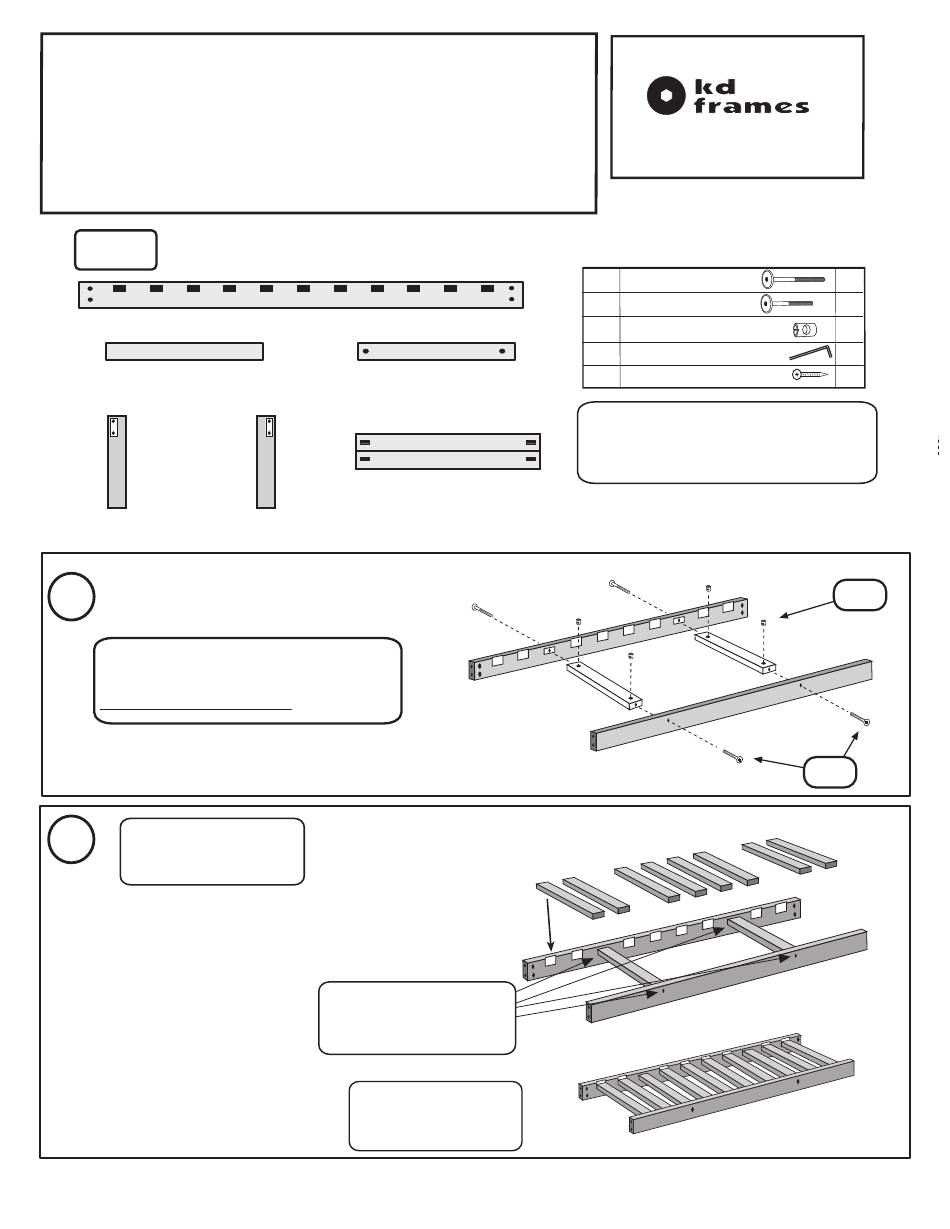

Instructions for
Nomad Bed
Extra-Long Twin
Parts:
N-80 BED RAIL (2)
N-38 REGULAR SLAT (10)
N-15L LEFT LEG (2)
N-15R RIGHT LEG (2)
1
Use 2-1/2" Bolts (H-21) and Cross Dowels (H-3) to
attach Bed Rails (N-80) and Connector Slats (N-39).
Leave the bolts loose until Step 2.
2
Place Regular Slats (N-38)
into the pockets and
then tighten the bolts.
sku# 7964-NO-XT
N-39 CONNECTOR SLAT (2)
N-41 BED ENDS (2)
NOTE:
Bolts should be just loose
enough to insert the Regular
Slats.
NOTE:
When the Slats are all in
their pockets, tighten the
bolts.
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
H A R D W A R E
H-1
3" BOLT
H-21 2 - 1/2" BOLT
H-3
CROSS DOWEL
H-10 HEX WRENCH
H-20 1 - 1/2" WOOD SCREW
Tool needed:
#2 Phillips screw driver
L I S T
8
4
12
1
8
H-3
H-21
