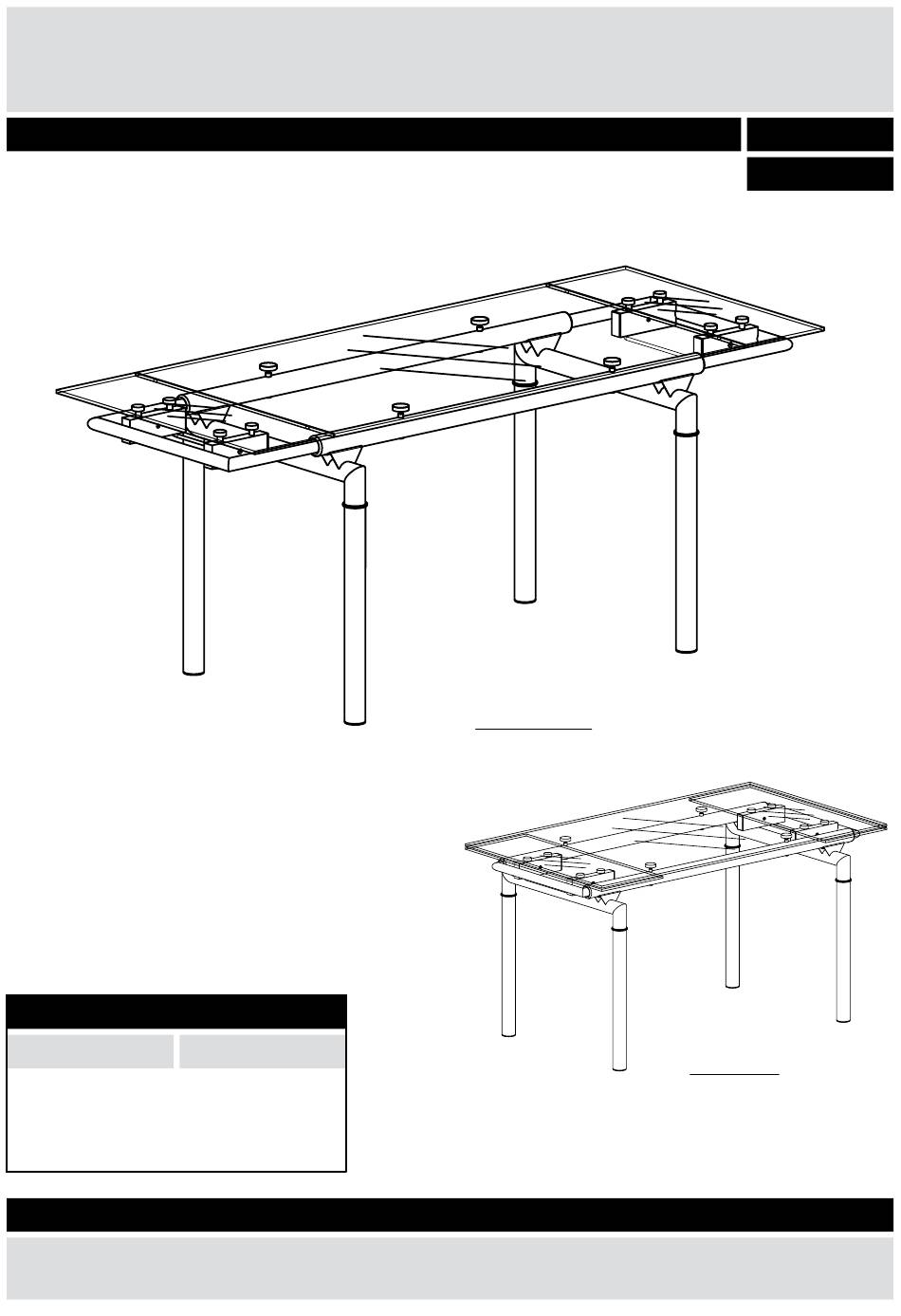

Savannah Dining Table
Assembly Instructions
Dimensions
Extended
Width - 200cm
Depth - 80cm
Height - 75cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01799 513466
– Please keep for future reference
Closed
Width - 140cm
Depth - 80cm
Height - 75cm
EXTENDED
602/3919
603/1217
CLOSED
Issue 1 - 02/11/09
Advertisement
Summary of Contents for kd frames Savannah 602/3919
- Page 1 Savannah Dining Table Assembly Instructions 602/3919 – Please keep for future reference 603/1217 EXTENDED Dimensions Extended Closed CLOSED Width - 200cm Width - 140cm Depth - 80cm Depth - 80cm Height - 75cm Height - 75cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 01799 513466 Issue 1 - 02/11/09...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put excessive • Assemble on a soft level components and tools listed on weight on the product, this surface to avoid damaging the could cause damage.
-
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below Leg frame x 2 Leg x 4 (70 x 12.6cm) (54.8 x Ø5.1cm) Top frame (138 x 60.7cm) Glass top (140 x 80cm) Glass extension leaves x 2 (80 x30cm) - Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 01799 513466 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Assembling leg frames Place leg frame upside down onto the floor. Screw large threaded rods into leg frames as shown. Note: Screw the short end in until it stops. Locate leg spacers over the threaded rods. Screw legs onto threaded rods and...
- Page 6 Assembly Instructions Step 3 Preparing glass top Place glass top upside down onto a clean flat surface. Screw medium threaded rods into the metal discs on the underside of glass top Screw nuts onto threaded rods and use the spanner to tighten onto the metal discs.
- Page 7 Assembly Instructions Step 5 Attaching extension leaves With help, turn frame over into it's standing position. Carefully align glass extension leaves with the brackets on the frame. Secure from underneath using fixings Step 6 Attaching main glass With help, carefully lower main glass top down Turn spacer...
- Page 8 Assembly Instructions Step 7 Extending and closing TO EXTEND Pull extension leaf out from below the main glass top until it stops. Push down on the handlebar to raise the extension leaf. Once raised, push the extension leaf back in until it touches the main glass top.
