kd frames 7516-TB-T Assembly Instructions

Instructions for
TV Table
sku# 7516-TB-T
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com

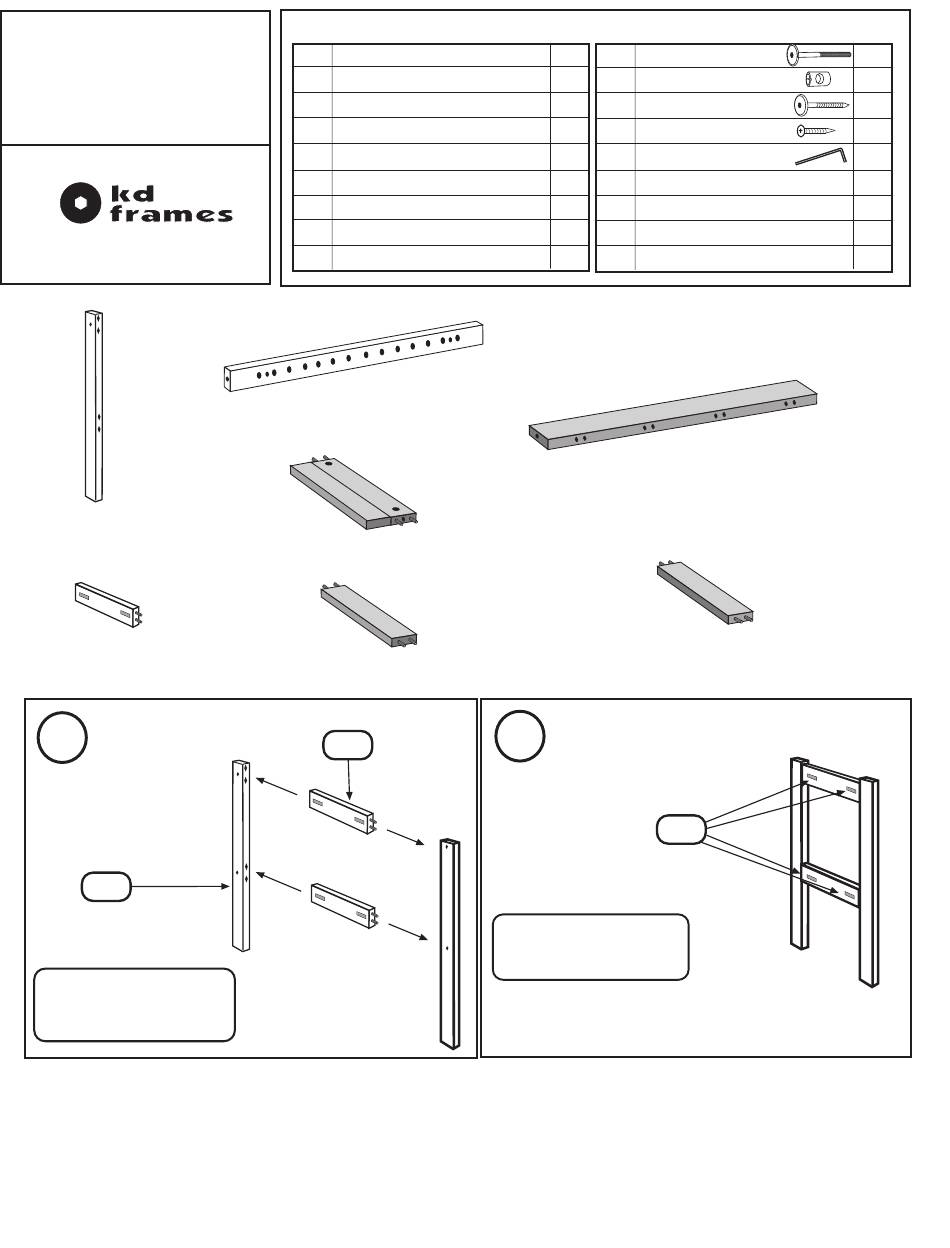

T-13 LEGS (4)
T-5 LEG CONNECTORS (4)
1
T-9
Push (2) T-5 Leg Connectors
into the holes on (2) T-9
Legs.
Repeat for the other side.
Knockdown Frameworks, Inc. warrants all of its products for five years against any defects that are due to faulty materials or workmanship. We will promptly correct such
defects by repair or replacement, at our option, without charge. This warranty covers product defects only and will expire five years after date of purchase by the original
consumer purchaser, with proof of purchase required.
This warranty does not apply to damage caused by and resulting from misuse, neglect, accident, or improper operation, maintenance, storage, transportation, or handling
of the product. This warranty is for the original consumer purchaser for residential use only and does not apply if the product is used in any commercial application (such as
rental property). This warranty does not cover any incidental or consequential damages. If you feel that you have a claim under this warranty, please contact the store from
which it was purchased. If this is not possible, call 800-543-3393 for advice on handling your claim.
P A R T S
T-2
18" TOP RAILS
22" LEGS
T-13
T-5 14" LEG CONNECTORS
T-6 16" TOP SLATS
T-7 16" CONNECTOR SLATS
T-15 18" SHELF RAILS
T-12
13" SHELF SLATS
T-2 TOP RAILS (2)
T-7 CONNECTOR SLATS (2)
T-6 TOP SLATS (9)
T-5
L I S T
2
H-21
2 - 1/2" BOLTS
4
H-3
CROSS DOWELS
4
2" WOOD SCREWS
H-4
5
H-20 1 - 1/2" WOOD SCREWS
2
H-10 "Z" WRENCH
2
4
T-15 SHELF RAILS (2)
T-12 SHELF SLATS (6)
2
H-20
Secure the Leg Connectors
to the Legs using
(4) Wood Screws (H-20).
4
4
8
8
1
