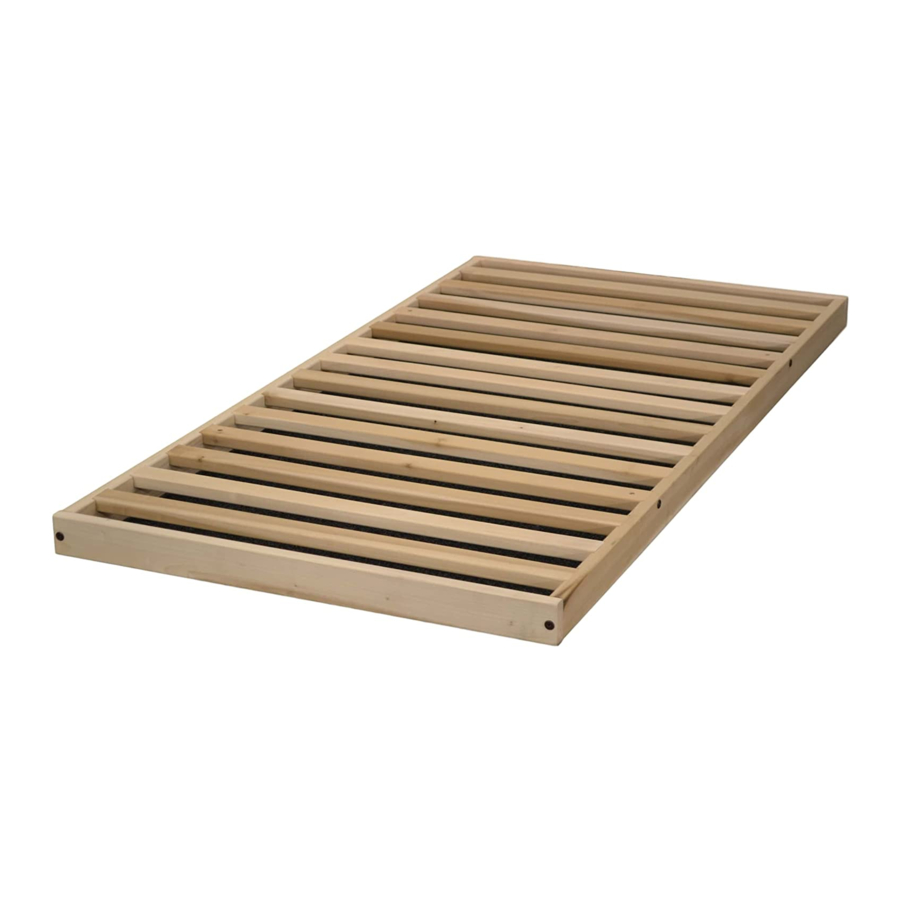

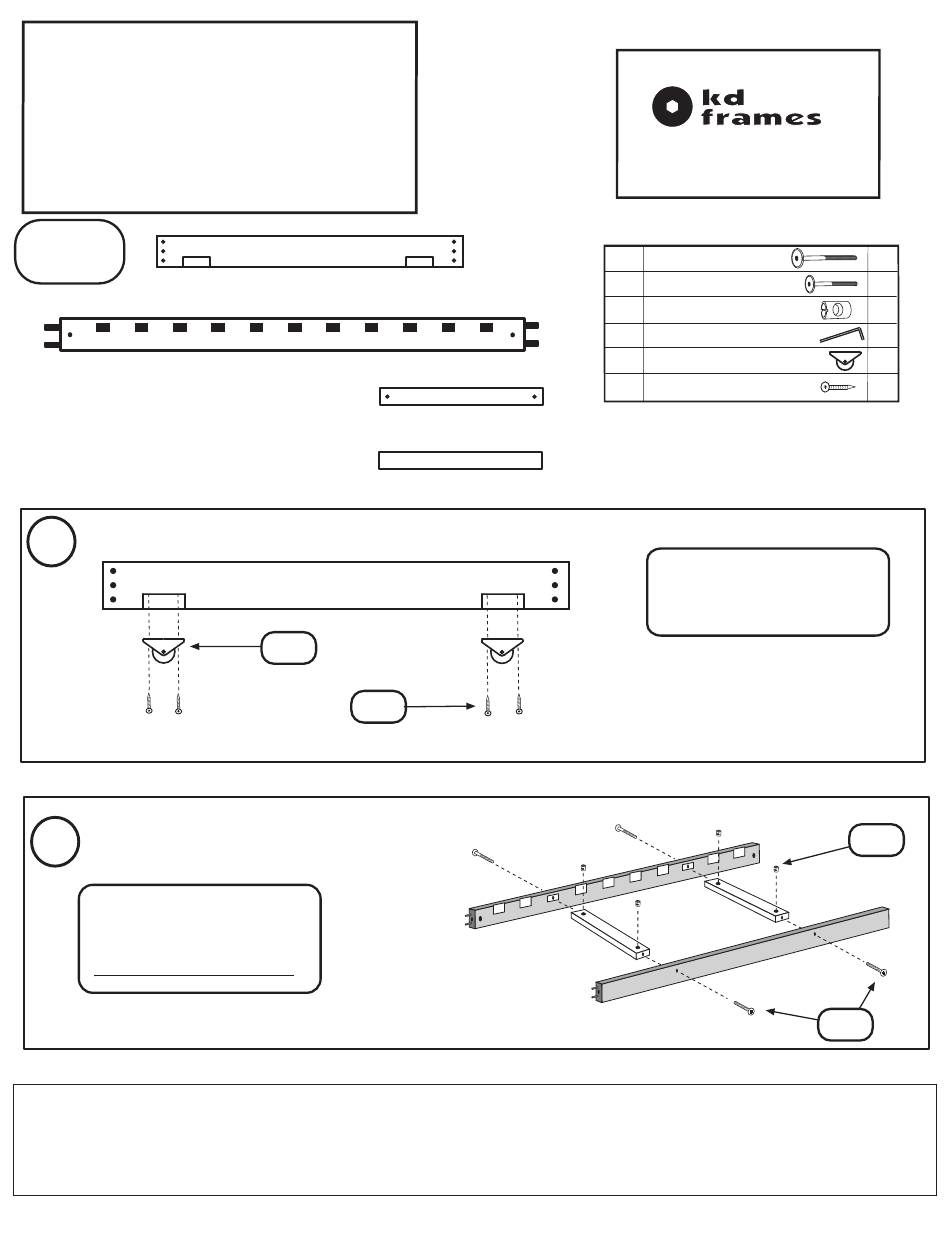

Instructions for
Trundle Bed
Twin
sku# 7903-TR-T
Parts
Tool Required: #2 Phillips-Head Screwdriver.
1
2
Use 2-1/2" Bolts (H-21) and
Cross Dowels (H-3) to attach
Bed Rails (N-70) and
Connector Slats (N-36C).
Leave the bolts loose until Step 2.
Knockdown Frameworks, Inc. warrants all of its products for five years against any defects that are due to faulty materials or workmanship. We will promptly correct such
defects by repair or replacement, at our option, without charge. This warranty covers product defects only and will expire five years after date of purchase by the original
consumer purchaser, with proof of purchase required.
This warranty does not apply to damage caused by and resulting from misuse, neglect, accident, or improper operation, maintenance, storage, transportation, or
handling of the product. This warranty is for the original consumer purchaser for residential use only and does not apply if the product is used in any commercial application
(such as rental property). This warranty does not cover any incidental or consequential damages. If you feel that you have a claim under this warranty, please contact the
store from which it was purchased. If this is not possible,call 706-543-9397 for advice on handling your claim.
(2) N-37 END CONNECTORS (37")
(2) N-70 BED RAILS (70")
(2) N-36C CONNECTOR SLATS (36")
(8) N-36 REGULAR SLATS (36")
H-W
H-34
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
H A R D W A R E
H-1
3" BOLT
H-21 2 - 1/2" BOLT
CROSS DOWEL
H-3
H-10 HEX WRENCH
WHEELS
H-W
H-34 3/4" WOOD SCREWS
Attach two Wheels (H-W) to one of the
the End Connectors (N-37) using four
of the the 3/4" Wood Screws (H-34).
Repeat for the other End Connector.
L I S T
4
4
8
1
4
8
H-3
H-21
