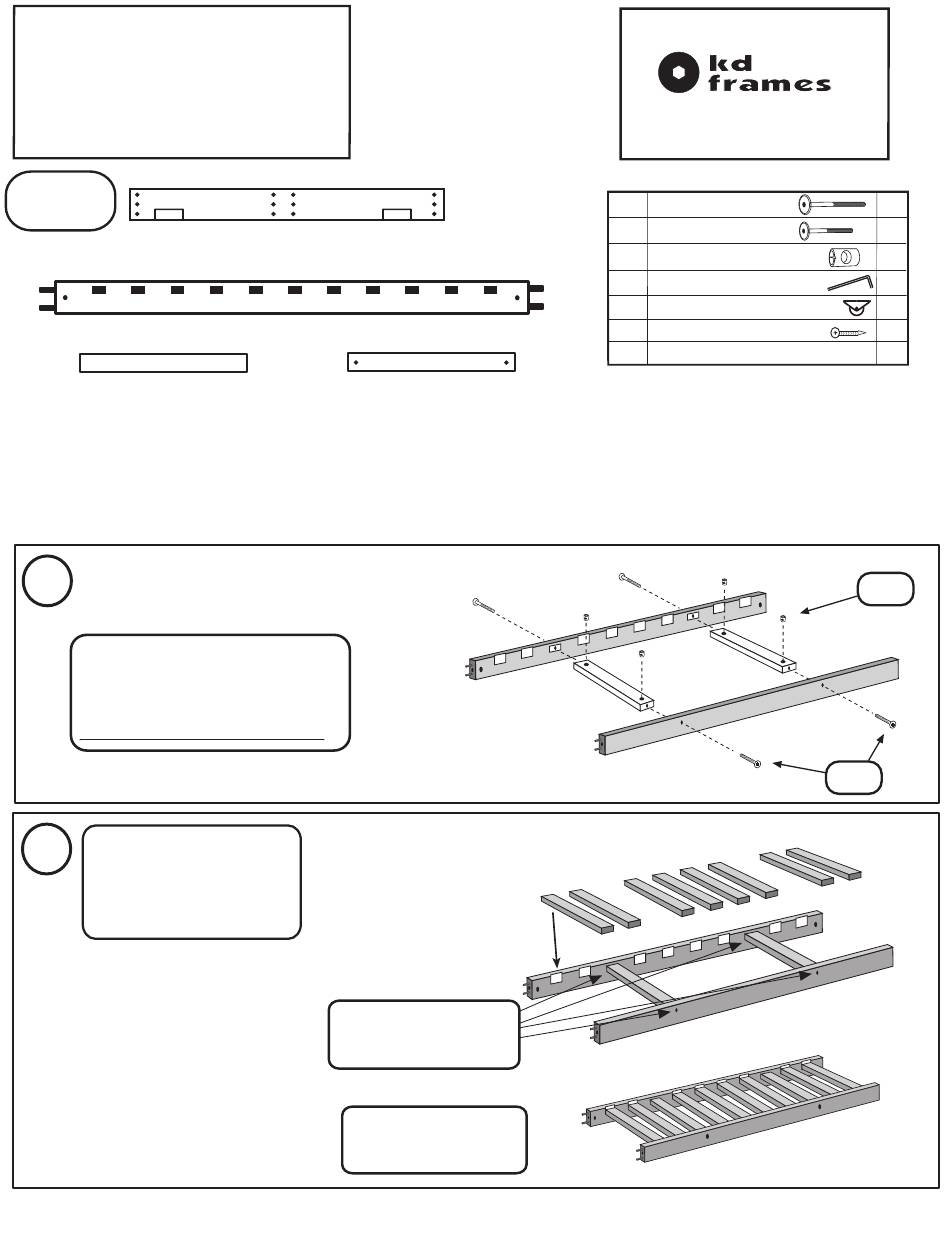

Instructions for

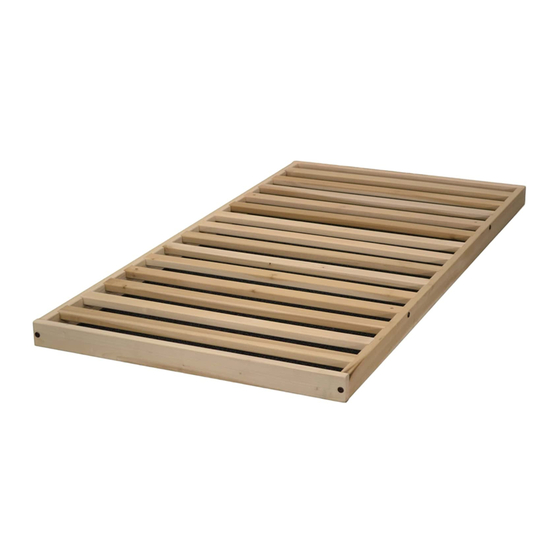

Trundle Bed
Full
sku# 7902-TR-F
Parts
(2) N-52 END CONNECTORS (52")
(16) N-23 REGULAR SLATS (23") (4) N-22 CONNECTOR SLATS (23")
Tool Required: #2 Phillips-Head Screwdriver.
1
Use 2-1/2" Bolts (H-21) and
Cross Dowels (H-3) to attach
Bed Rails (N-70) and
Connector Slats (N-22).
Leave the bolts loose until Step 2.
2
Place Regular Slats (N-23)
into the pockets and
then tighten the bolts.
Repeat Steps 1 and 2 for
the other Bed Deck.
(4) N-70 BED RAILS (70")
NOTE: Bolts should be
just loose enough to
insert the Regular Slats.
NOTE: When the Slats
are all in their pockets,
tighten the bolts.
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
H A R D W A R E
H-1
3" BOLT
H-21 2 - 1/2" BOLT
H-3 CROSS DOWEL
H-10 HEX WRENCH
H-W
WHEELS
H-34 3/4" WOOD SCREWS
L I S T
8
8
16
1
4
8
H-3
H-21
Advertisement
Table of Contents
Related Manuals for kd frames 7902-TR-F
Summary of Contents for kd frames 7902-TR-F
- Page 1 Instructions for Manufactured by Trundle Bed Full 394 Dairy Pak Rd. • Athens, GA 30607 sku# 7902-TR-F kdframes.com • alan@kdframes.com Parts H A R D W A R E L I S T 3” BOLT (2) N-52 END CONNECTORS (52”) H-21 2 - 1/2”...
- Page 2 Attach two Wheels (H-W) to one of the the End Connectors (N-52) using four of the the 3/4” Wood Screws (H-34). Repeat for the other End Connector. H-34 Make sure that the Wheels are on the lower, inside edge of the End Connector and then press it onto the Bed Rails.
