Manufactured by:
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com

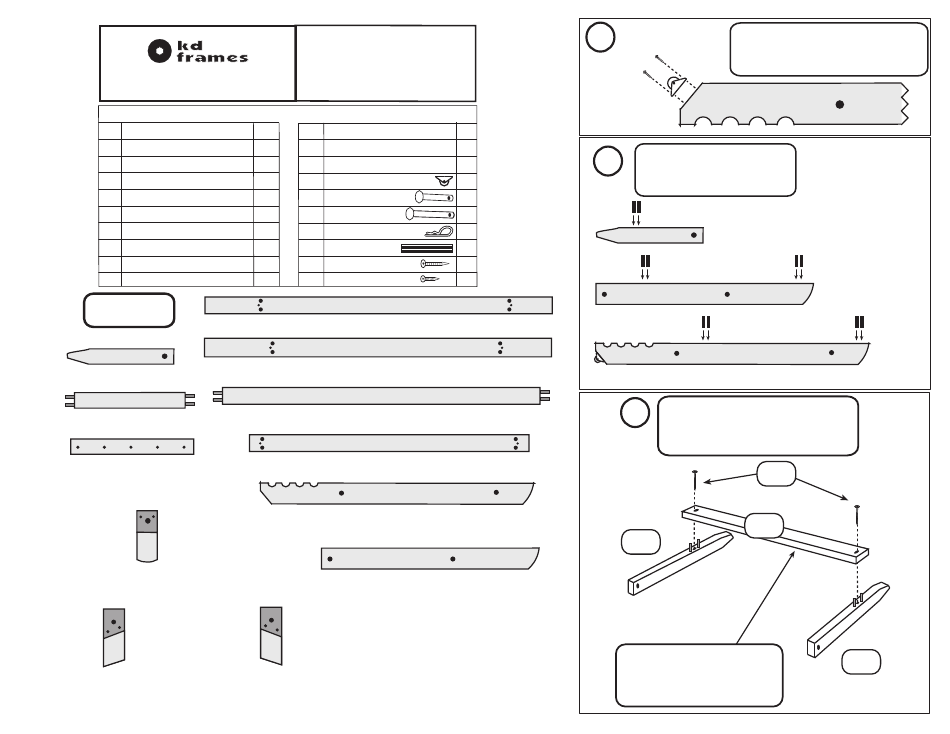

P A R T S
L I S T
BACK RAIL
K-1
K-2
SEAT RAIL
K-15 20" SLAT CAPS
PROP
K-4
PROP CONNECTOR
K-55
K-6
BACK LEG (Left and Right)
SEAT LEG
K-7
K-10 SLAT SUPPORTS
PARTS
(2) K-4 PROP - 15"
(4) K-15 SLAT CAP - 20"
(2) K-10 SLAT SUPPORT - 24"
(2) K-7 SEAT LEG - 9"
(1) K-6L BACK LEG (Left)
(1) K-6R BACK LEG (Right)

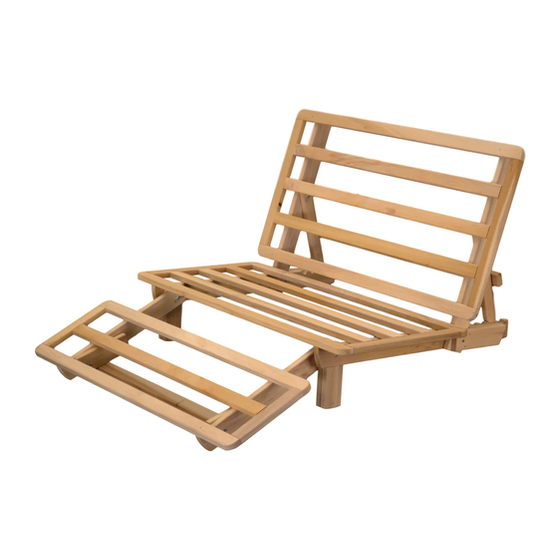

Instructions for
Studio Bifold
Full
sku# 7722-BI-F
2
K-54 MIDDLE SLATS
2
K-51 BACK SLATS
4
SEAT SLATS
K-52
2
H-W
WHEELS
1
H-8
2-1/4" CLEVIS PIN
2
H-12 3-1/4" CLEVIS PIN
2
HAIR PIN
H-5
2
H-11 WOOD DOWEL
H-19 1-3/4" WOOD SCREW
3/4" WOOD SCREWS
H-34
(2) K-51 BACK SLAT - 72"
(2) K-52 SEAT SLAT - 72"
(6) K-54 MIDDLE SLAT - 68"
(1) K-55 PROP CONNECTOR - 56"
(2) K-2 SEAT RAIL - 37"
(2) K-1 BACK RAIL - 29"
1
v. 414
6
2
2
2
2
4
2
6
20
28
4
3
K-4
Attach a Wheel (H-W) to each Seat
Rail (K-2) using 3/4" Wood Screws
(H-34) as shown.
Push Wood Dowels (H-11)
all the way into holes
as shown.
K-4 PROP (2)
Press the Prop Connector (K-55) onto
the Wood Dowels on the Props (K-4)
and attach with 1-3/4" Screws (H-19).
H-19
K-55
NOTE:
The Prop Connector (K-55)
shown above is shortened
to save space.
K-1 BACK RAIL (2)
K-2B SEAT RAIL (2)
K-4
