HARDWARE LIST
Assembly Instructions
Savannah
Size Full
sku# 7212-SB-F
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
PARTS LIST
(2) L-75-ST STRETCHERS (75")
(2) L-72-BR BACK RAIL (72")
(2) L-70-SR SEAT RAIL (70")
(1) L-27-SL LEFT SEAT END CAP (27")
(2) L-27-B BACK END CAPS (27")
L-1 RIGHT ARM (1)
Note: Arms are packed in a seperate box.
16
H-1
3" BOLT
24
H-3
CROSS DOWEL
8
H-21 2 - 1/2" BOLT
6
H-8
2-1/4" CLEVIS PIN
2
H-5
HAIR PIN
4
H-9
PLASTIC ROLLER
1
H-10
HEX WRENCH
(1) L-27-SR RIGHT SEAT END CAP (27")
(16) L-23 REGULAR SLAT (23")
(4) L-23-CS CONNECTOR SLAT (23")
L-2 LEFT ARM (1)

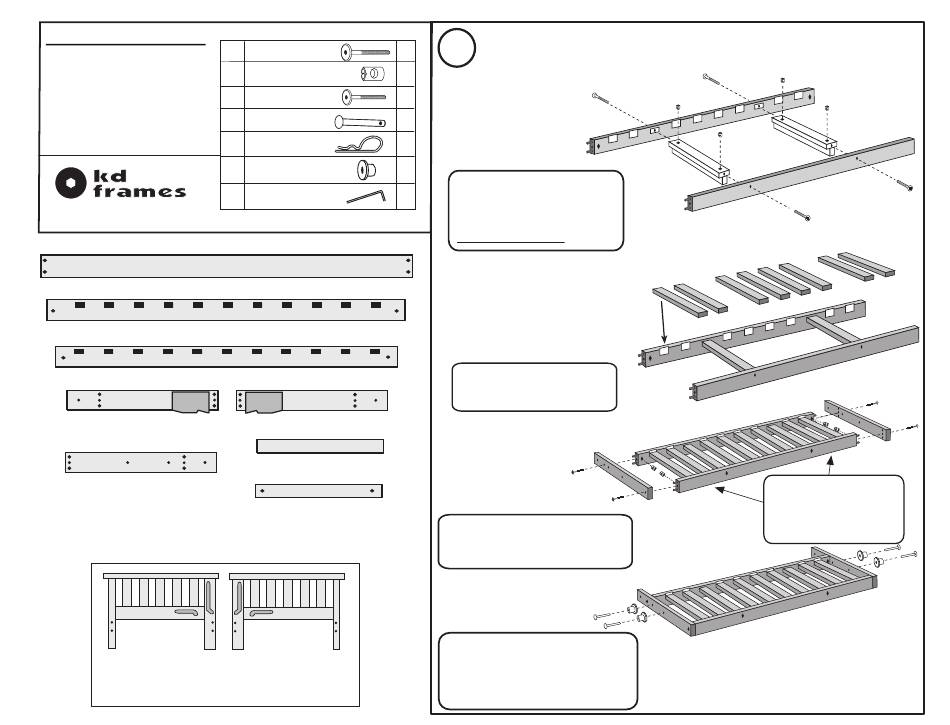

Assemble Back
1
Use 2-1/2" Bolts (H-21) and
Cross Dowels (H-3) to attach
two Connector Slats (L-23-CS)
between the Back Rails (L-72-BR).
Leave the bolts loose.
Place (8) Regular Slats (L-23)
into the pockets and
then tighten the bolts.
Press the Back End Caps (L-27-B) onto
the wood dowels and attach using
3" Bolts (H-1) and Cross Dowels (H-3).
Attach the Plastic Rollers (H-9) by
pushing a Clevis Pin (H-8) through the
small end of the Roller and into the holes
provided in the Back End Caps.
(These Clevis Pins do not need hair pins)
NOTE:
Place the best looking
Back Rail on this side to
make your frame look its
best.
