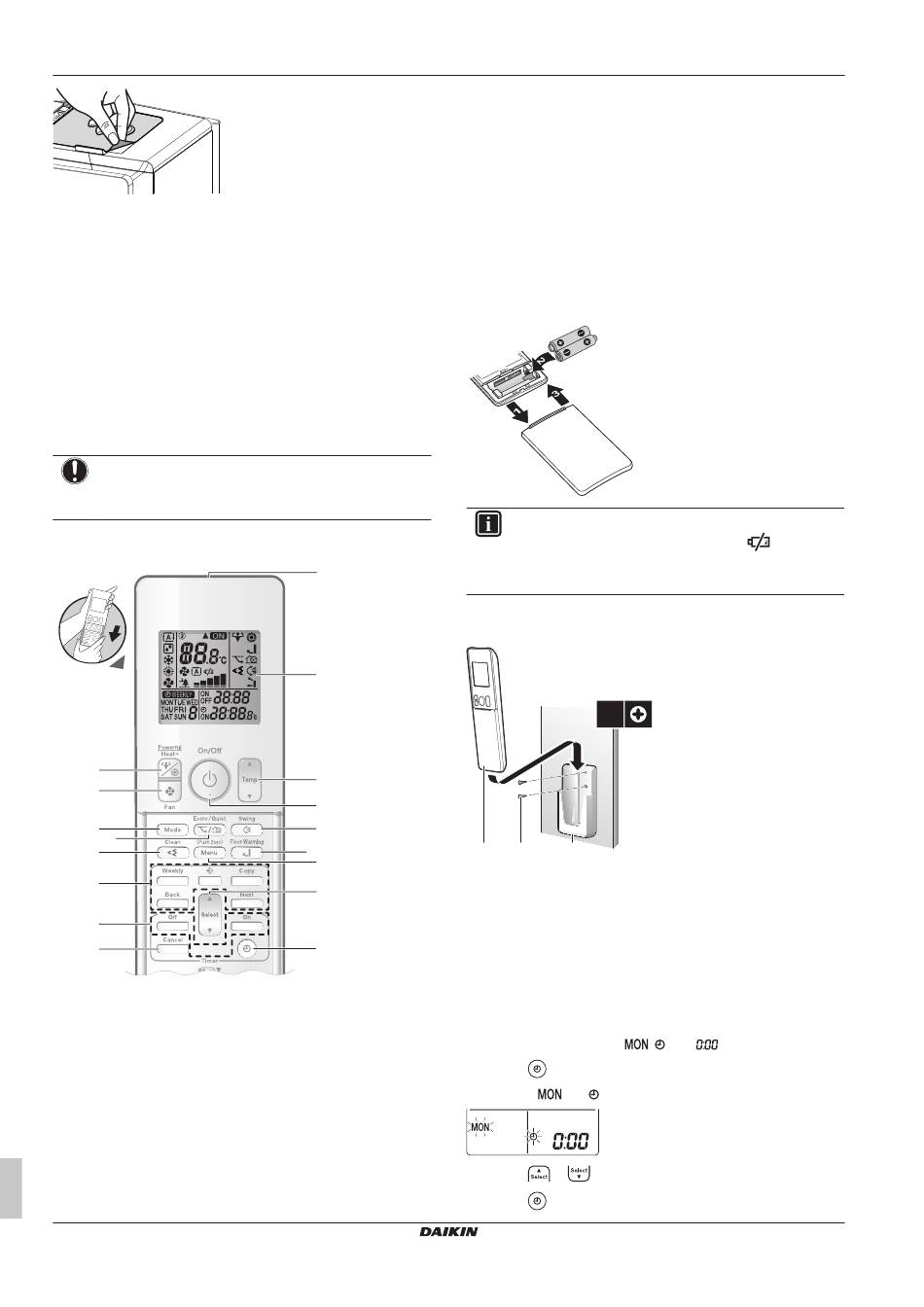

4 Before operation

3.2

About the user interface

▪ Direct sunlight. Do NOT expose the user interface to direct
sunlight.
▪ Dust. Dust on the signal transmitter or receiver will reduce
sensitivity. Wipe off dust with a soft cloth.
▪ Fluorescent lights. Signal communication might be disabled if
fluorescent lamps are in the room. In that case, contact your
installer.
▪ Other appliances. If the user interface signals operate other
appliances, move the other appliances, or contact your installer.
▪ Curtains. Make sure that the signal between the unit and the user
interface is NOT blocked by curtains or other objects.
NOTICE
▪ Do NOT drop the user interface.
▪ Do NOT let the user interface get wet.
3.2.1

Components: User interface

q
p
o
n
m
l
k
j
a Signal transmitter
b LCD display
c Temperature adjustment button
d ON/OFF button
e Vertical swing button
f Floor warming button
g Menu button
h Select button
i Clock setting button
j Cancel button
k OFF/ON timer operation buttons
l Weekly timer operation buttons
m Flash Streamer (air cleaning) operation button
n Econo and Outdoor unit quiet operation button
o Mode button
p Fan button
q Powerful button and Heat plus button
Operation manual
6
4
4.1
1 Turn the circuit breaker on.
4.2
The batteries will last for about 1 year.
1 Remove the front cover.
2 Insert both batteries at once.
3 Put back the front cover.
a
4.3
b
c
d
e
a
f
g
h
1 Choose a place where the signal can reach the unit.
2 Fix the user interface holder (accessory) to the wall or a similar
i
3 Insert the user interface into the user interface holder.
4.4
Note: If the time is NOT set,
1 Press
2 Press
3 Press
Before operation

To turn on the power supply

To insert the batteries

AAA.LR03
INFORMATION
▪ Low energy of battery is indicated by
LCD display.
▪ ALWAYS replace both batteries together.

To mount the user interface holder

2×
b c
a User interface
b Screws (field supply)
c User interface holder
location using 2 M3×20L screws (field supply).

To set the clock

, , and
.
Result: and blink
or to set the current day of the week.
.
icon on the
blink.
