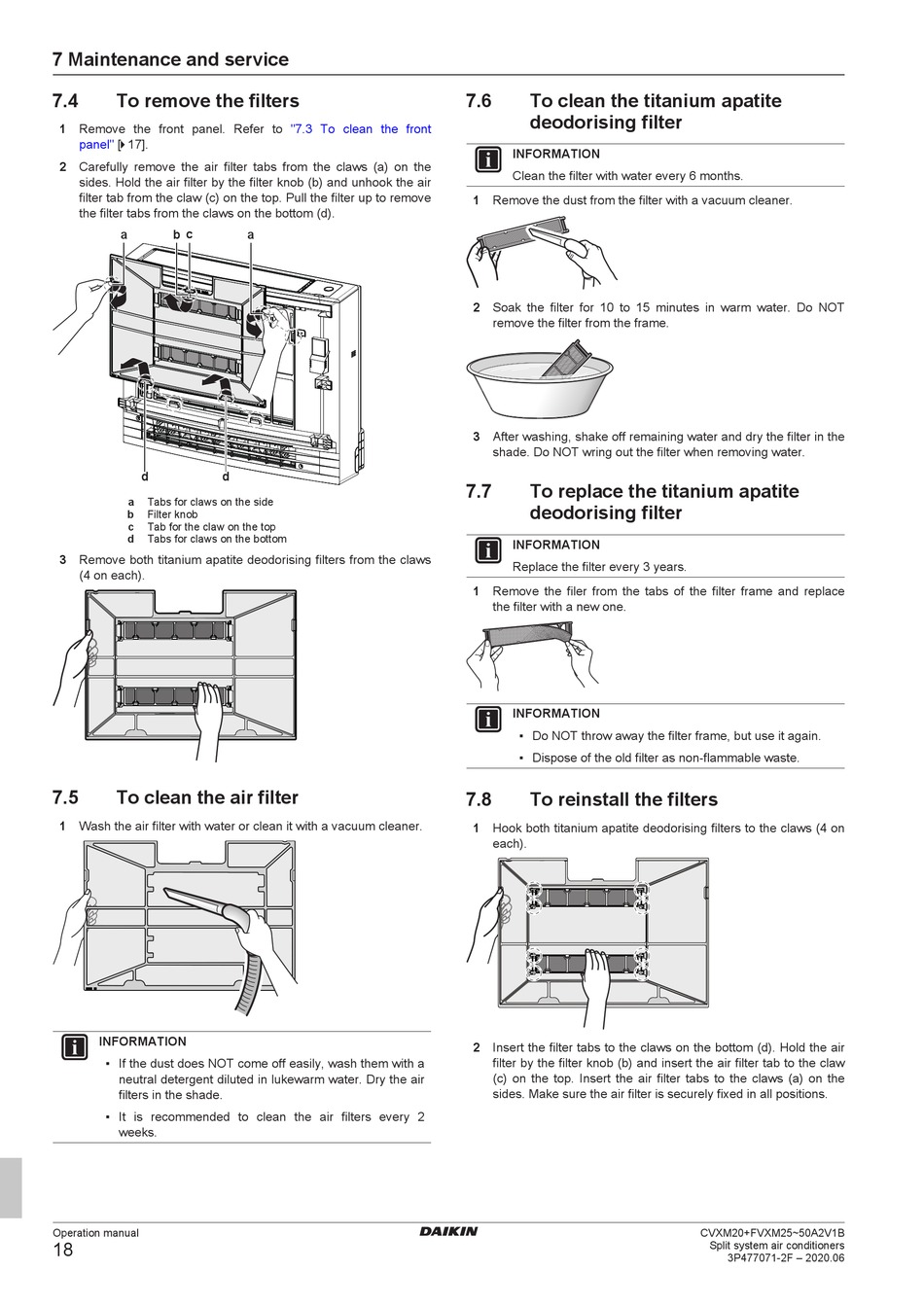

7 Maintenance and service
7.4

To remove the filters

1 Remove the front panel. Refer to
panel" [ 4 17].
2 Carefully remove the air filter tabs from the claws (a) on the
sides. Hold the air filter by the filter knob (b) and unhook the air
filter tab from the claw (c) on the top. Pull the filter up to remove
the filter tabs from the claws on the bottom (d).
c
a b
d d
a Tabs for claws on the side
b Filter knob
c Tab for the claw on the top
d Tabs for claws on the bottom
3 Remove both titanium apatite deodorising filters from the claws
(4 on each).
7.5

To clean the air filter

1 Wash the air filter with water or clean it with a vacuum cleaner.
INFORMATION
▪ If the dust does NOT come off easily, wash them with a
neutral detergent diluted in lukewarm water. Dry the air
filters in the shade.
▪ It is recommended to clean the air filters every 2
weeks.
Operation manual
18
"7.3 To clean the front
a
7.6 To clean the titanium apatite
deodorising filter
INFORMATION
Clean the filter with water every 6 months.
1 Remove the dust from the filter with a vacuum cleaner.
2 Soak the filter for 10 to 15 minutes in warm water. Do NOT
remove the filter from the frame.
3 After washing, shake off remaining water and dry the filter in the
shade. Do NOT wring out the filter when removing water.
7.7 To replace the titanium apatite
deodorising filter
INFORMATION
Replace the filter every 3 years.
1 Remove the filer from the tabs of the filter frame and replace
the filter with a new one.
INFORMATION
▪ Do NOT throw away the filter frame, but use it again.
▪ Dispose of the old filter as non-flammable waste.
7.8

To reinstall the filters

1 Hook both titanium apatite deodorising filters to the claws (4 on
each).
2 Insert the filter tabs to the claws on the bottom (d). Hold the air
filter by the filter knob (b) and insert the air filter tab to the claw
(c) on the top. Insert the air filter tabs to the claws (a) on the
sides. Make sure the air filter is securely fixed in all positions.
CVXM20+FVXM25~50A2V1B
Split system air conditioners
3P477071-2F – 2020.06
