Summary of Contents for Thrane&Thrane SAILOR 250

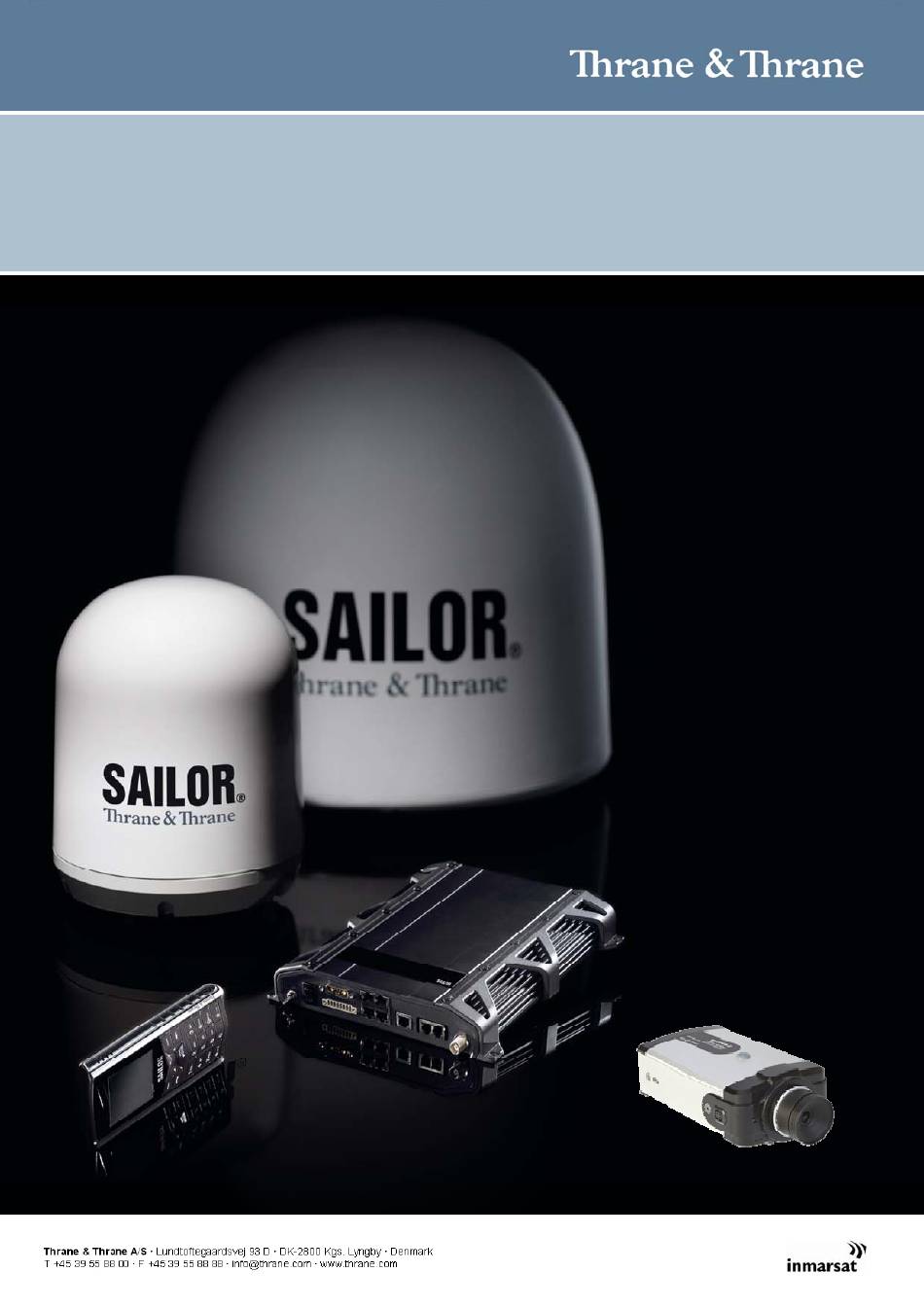

  • Page 1 ACCREDITED SOLUTION SAILOR 250/500 – Linksys PVC2300 IP Camera...
  • Page 2 Document Name: SAILOR 250/500 – Linksys PVC2300 IP Camera Revision: Introduction: This document describes the Linksys PVC2300 IP Camera for use as surveillance camera onboard vessels with remote access to it through Thrane & Thrane SAILOR FleetBroadband terminal. One of the key features is that the camera is PoE enabled (Power over Ethernet) Typical Users &...
  • Page 3 needed. Each PVC2300 IP Camera just needs to be configured with different port numbers. The next sections will describe what needs to be configured in the SAILOR FleetBroadband terminal as well as in the PVC2300 IP Camera. Following data will be used in this test scenario: 1) Use the default Network User Group of the SAILOR FleetBroadband terminal 2) Use the default Classification entry of the SAILOR FleetBroadband terminal 3) Configure static local IP address 192.168.0.100 for the PVC2300 IP Camera.
  • Page 4 Picture 2: Network Devices List The Network Devices list in picture 2 shows that the PVC2300 IP Camera got the IP address 192.168.0.2 from the SAILOR terminal’s DHCP server. The MAC address (00:1A:70:9F:A7:40) can also be matched to the MAC address written on the label on the bottom of the PVC2300 IP Camera. Now go to the built-in web server of the PVC2300 IP Camera at http://192.168.0.2 in order to...
  • Page 5 PVC2300 IP Camera to a port number not used by any other application on the SAILOR 250/500 LAN. In this test the port number was set to port 10000. Changing the port number of the camera makes it possible to have several cameras behind the same SAILOR 250/500 terminal.
  • Page 6 Configuration of The SAILOR FleetBroadband terminal only needs to have port forwarding configured. Open a web SAILOR 250/500: browser and browse to http://192.168.0.1 to get into the SAILOR FleetBroadband terminal’s built-in web server. Go to the menu SETTINGS – LAN – PORT FORWARD to configure the port forward settings to forward the port number 10000 to the IP address 192.168.0.100 which is the IP address of...
  • Page 7 Picture 6: DASHBOARD Accredited Solution SAILOR – Linksys PVC2300 IP Camera Page 7/8...
  • Page 8 The test was only conducted with the SAILOR 500 terminal but is anticipated also to work with the SAILOR 250 terminal as the two systems are the same just only the antenna unit is different. Information in this document is subject to change without notice and does not represent a commitment on the part of Thrane &...
