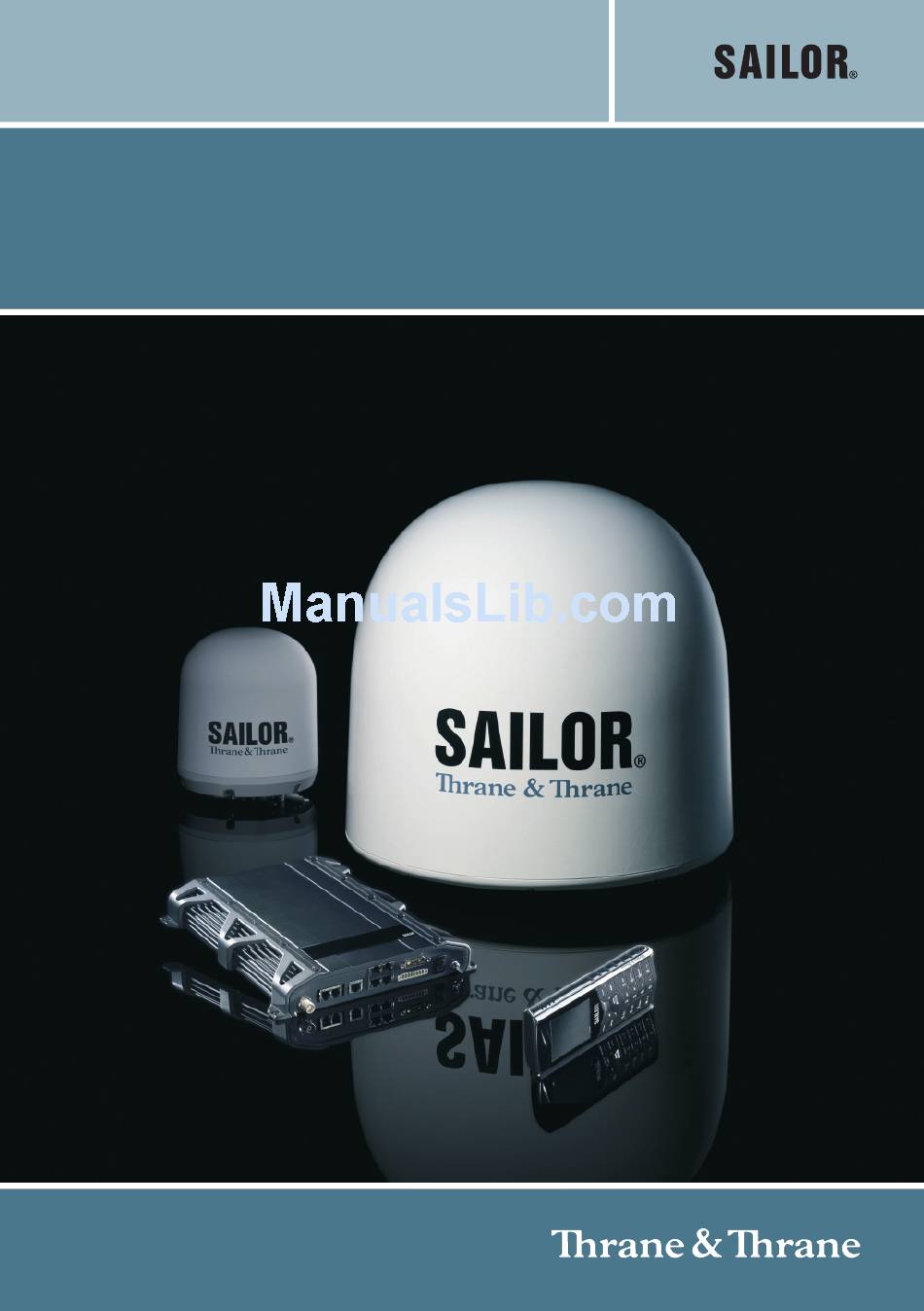

Page 1 USER MANUAL SAILOR 500/250 FleetBroadband...
Page 2: In This Chapter
This chapter describes how to start up the system and make the first call or data session. For information on how to install the system, insert SIM card and connect cables, refer to the installation manual for the SAILOR 500 FleetBroadband and SAILOR 250 FleetBroadband systems. Before you start...
Page 3 Antenna Phone/Fax 1 Phone/Fax 2 ISDN 4 x LAN w. PoE Grounding stud For information on how to connect to each interface, refer to the installation manual for the SAILOR 500 FleetBroadband and SAILOR 250 FleetBroadband systems. Before you start...
Page 4: Starting Up The Terminal
Chapter 2: Getting started Starting up the terminal SIM card Note that the SAILOR FleetBroadband terminal requires a SIM card dedicated to FleetBroadband. The terminal can only access the BGAN network when the right type of SIM card is installed. For information on how to insert the SIM card, refer to the installation manual.
Page 5 The standby current is max. 15 mA when the ignition is off. For information on how to connect to the I/O connector, refer to the installation manual for the SAILOR 500 FleetBroadband system. You must set up the ignition function in the web interface. For further information, see Configuring the I/O interface on page 110.
Page 6 Chapter 2: Getting started you can always switch the terminal back on with the remote switch. The standby current when the remote switch is off is max. 2 mA. For further information on the remote on/off function, refer to the installation manual for the SAILOR FleetBroadband systems.
Page 7: Connecting The Ip Handset
Chapter 2: Getting started Connecting the IP handset Power supply The Thrane & Thrane IP handset is powered from the LAN interface, using Power over Ethernet. Starting up the IP handset The following procedure is for the Thrane & Thrane IP handset. The procedure may be different for another type of IP handset.
Page 8: Connecting A Computer
Chapter 2: Getting started Connecting a computer Before connecting to the LAN interface For the LAN interface to work without any further setup, the connected computer must be set up to obtain an IP address and a DNS server address automatically.
Page 9: Entering The Sim Pin For The Terminal
Chapter 2: Getting started Entering the SIM PIN for the terminal Overview Depending on your SIM card, you may have to enter a SIM PIN to use the system. You can enter the PIN using a standard phone or ISDN phone, the IP handset or the web interface.
Page 10 Chapter 2: Getting started Wrong PIN Analog phone or ISDN phone: If, instead of the busy tone or dialing tone, you continue to hear 2 beeps - pause - 2 beeps - etc., it means the PIN was not accepted. Check that you have the correct PIN and try again. If a wrong PIN has been entered three times, you will hear 3 beeps - pause - 3 beeps - etc.
Page 11 Chapter 2: Getting started Entering the PIN using the web interface To enter the PIN Do as follows: 1. On a computer connected to the terminal, open your browser and enter the IP address of the terminal. Refer to Using the web interface on page 57. The default IP address is 192.168.0.1.
Page 12 Chapter 2: Getting started Wrong PIN You have 3 attempts to enter the PIN in the web interface, before you are asked to enter the PUK (Pin Unblocking Key). The PUK is supplied with your SIM card. Enter the PUK followed by a new PIN of your own choice. The PIN must be from 4 to 8 digits long.
Page 13: Registering On The Bgan Network
Chapter 2: Getting started Registering on the BGAN network Registration procedure When the SIM PIN is accepted by the terminal, the SAILOR FleetBroadband system starts the registration procedure on the BGAN network. Note We recommend keeping the vessel on a steady course while the antenna is performing a sky scan.
Page 14 Chapter 2: Getting started LED indications during the registration procedure This table shows how the startup procedure is signaled with the light indicators. If an error occurs, the indicators will light yellow or red, depending on the severity of the error. Status Antenna indicator Terminal indicator...
Page 15: Making The First Call
Chapter 2: Getting started Making the first call Introduction When the Antenna and Terminal indicators in the LED panel on the terminal both light steady green, you are ready to make or receive the first call. The following sections provide a short guide to making calls. For more detailed information, see Making or receiving a phone call on page 42.
Page 16: What's Next
Chapter 2: Getting started • Mobile number: The mobile number of the terminal you are calling. The first part of the number is always 870, which is the “country code” for the BGAN system. Note There are two Voice numbers, one for 3.1 kHz Audio and one for Standard Voice.
