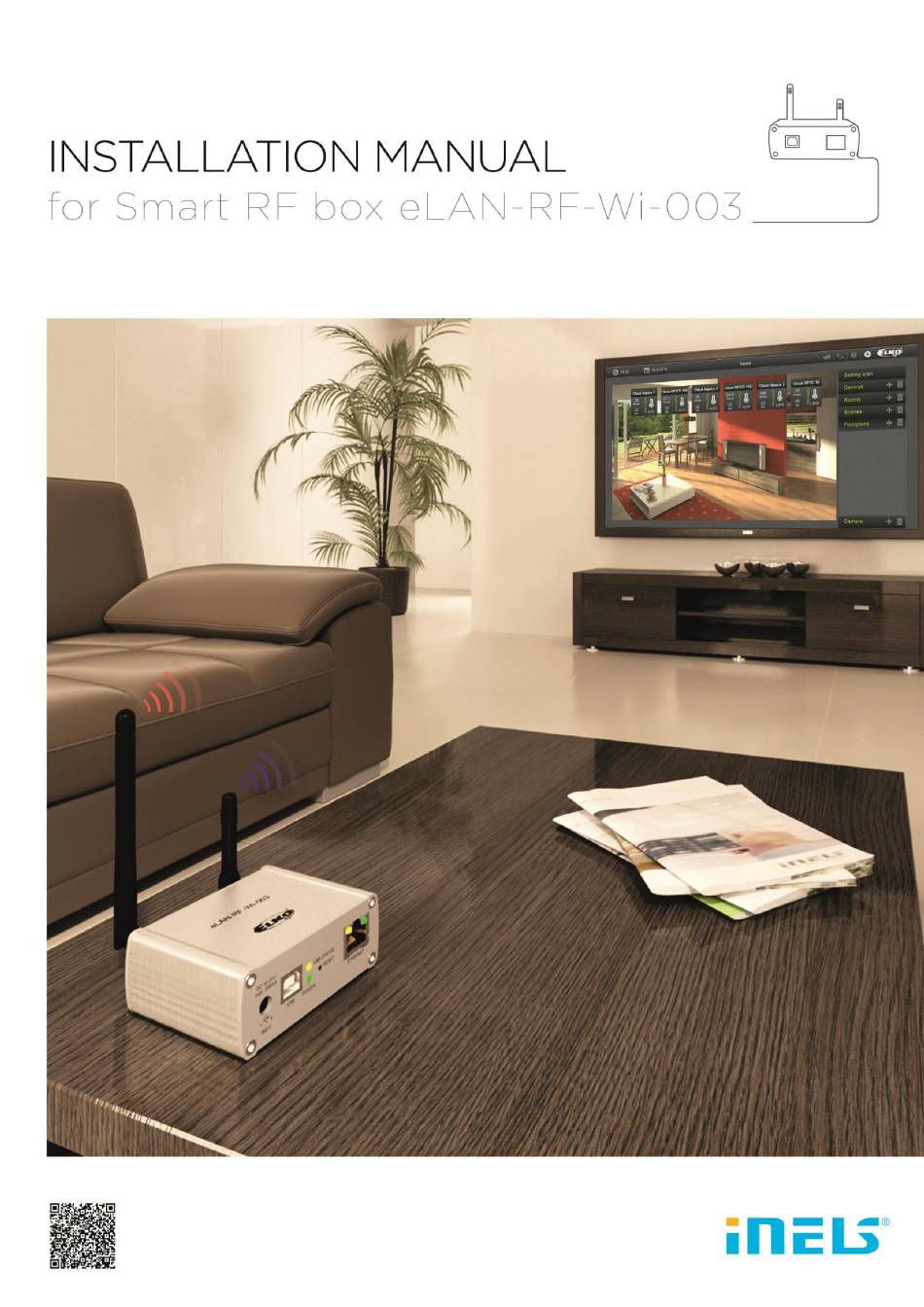

- Page 1 eLAN-RF-Wi-003 1 of 18 Page 02-32/2017 / rev.6...
-
Page 2: Table Of Contents
eLAN-RF-Wi-003 Introduction ............................. 4 Installing the application ......................... 5 Logging in to the web interface eLAN-RF-Wi-003 ................6 Settings ............................8 Description of functions ........................9 Adding RF actuators to the floorplan ....................17 RF control actuators .......................... 18 Starting up scenes ..........................18 2 of 18 Page 02-32/2017 / rev.6... - Page 3 eLAN-RF-Wi-003 Before you begin The instruction manual provides information on installing and operating the device. The instruction manual is always a part of the supply. Only perform installation after becoming thoroughly familiar with this User Guide and device functions. Problem-free function of the device also depends on the way it was shipped, stored and handled.
-
Page 4: Introduction
eLAN-RF-Wi-003 1. Introduction Congratulations on purchasing the Smart RF box eLAN-RF-Wi-003 control unit, an element of the RF Control wireless system. • The smart RF box Enables you to control your electrical installation by smartphone, tablet, Samsung smart-watch Gear S2 or SMART TV. •... -
Page 5: Installing The Application
eLAN-RF-Wi-003 2. Installing the application Install the application in your smartphone: for mobile telephone with OS Android: download the current version at Google Play (under the name iHC-MAIRF). https://play.google.com/store/apps/details?id=cz.elkoep.ihc_marf_us&hl=en for mobile telephones with IOS: download the current version under the name iHC-MIIRF in the app store. -
Page 6: Logging In To The Web Interface Elan-Rf-Wi-003
eLAN-RF-Wi-003 3. Logging in to the web interface eLAN-RF-Wi-003 After connecting the eLAN-RF-Wi-003 to the power source, after around 1 minute you will see displayed in the list of available WiFi networks the name: ELAN-RF-WI Connect to the network by entering the password: 00000000 ... - Page 7 eLAN-RF-Wi-003 7 of 18 Page 02-32/2017 / rev.6...
-
Page 8: Settings
eLAN-RF-Wi-003 4. Settings After logging in your browser opens a window where you can see the devices associated to the room. If you set multiple rooms, you can switch between them by arrows, located in the upper right corner. Clicking on the Settings icon displays the menu 8 of 18 Page 02-32/2017 / rev.6... -
Page 9: Description Of Functions
eLAN-RF-Wi-003 Description of functions By clicking on the Setting elan the basic menu settings are displayed. By pressing Log out, you will log out of the web interface eLAN-RF-Wi-003. By pressing the button Accounts, you will display a window for changing login data. - Page 10 eLAN-RF-Wi-003 By pressing the button Save settings, you can save the current settings of your eLAN-RF-Wi-003 including network settings. The button Settings is to configure network settings that you can change any time based on your network. If you leave DHCP enabled selected by default, the eLAN-RF-Wi-003 always assigns you an IP address in the range set by default (192.168.1.x).
- Page 11 eLAN-RF-Wi-003 11 of 18 Page 02-32/2017 / rev.6...
- Page 12 eLAN-RF-Wi-003 Repeater The Repeater function is an independent function of eLAN-RF-Wi-003 and is used to increase range between RF controllers (system elements) and RF elements. Use: an eLAN-RF-Wi-003 device configured for a repeater can only be connected to the supply voltage, and it will then function just the same as the RFRP-20.
- Page 13 eLAN-RF-Wi-003 Button Reboot – to restart the device eLAN-RF-Wi-003. Button Date & Time Here the IP address of the NTP server is set by default, which determines for the eLAN the precise time via the Internet. You can also set the time zone in which the eLAN is located. By selecting Daylight Saving Time, you can manually set the daylight saving time.
- Page 14 eLAN-RF-Wi-003 Button Devices is used for adding RF actuators to the eLAN-RF-Wi-003. Button (+) - add a new RF element: 1. Product Type – select RF element 2. Address – enter the address of the RF element that is listed right on the box of the added EF element (six-character code).
- Page 15 eLAN-RF-Wi-003 Button Rooms displays created rooms. By pressing the button (+). If you click on the button (+), a table is displayed in which you fill in: Name of room 1. Label gives an arbitrary name to the room (you can use diacritical marks, gaps and others...) 2.
- Page 16 eLAN-RF-Wi-003 Buttonl Scenes – Here any scenes are created based on user requirements. It is possible to create scenes only after you add rooms and actuators. Button (+) - add a new scene: 1. Label - enter any name of the scene (you can use diacritical marks and spaces in between…).
-
Page 17: Adding Rf Actuators To The Floorplan
eLAN-RF-Wi-003 Button Floorplans here you can add floorplans (images, layouts….). Button (+) - add a new floorplan: 1. Select the required image for the floorplan (stored in your PC). 2. ID – enter the name of the floorplan. Confirm by pressing OK. The number of floorplans is limited by the memory size of the eLAN-RF-Wi-003. -
Page 18: Rf Control Actuators
eLAN-RF-Wi-003 RF control actuators Mobile phone help application Clicking on the component icon (1) to start the function settings (switch-off delay ...). Click on the name of the component (2) to display all its functions, where you can select which function is performed (delayed closing - including setup time, brightness adjustment ...).
