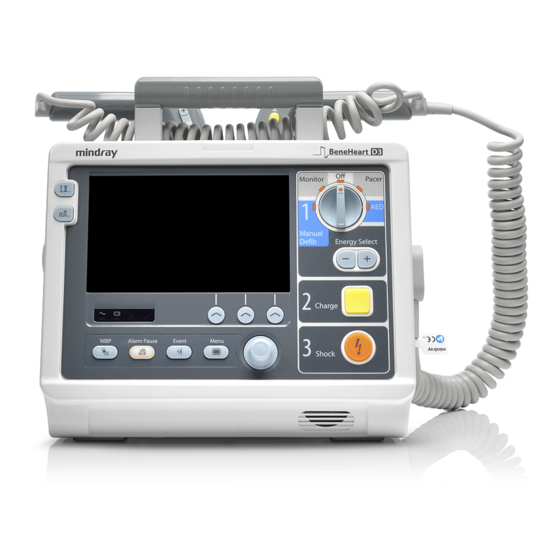

BeneHeart D3/BeneHeart D2
Lead Select
button
Indicators
Main Menu button
AED Mode
1. Plug the pads cable in the equipment's therapy port.
2. Apply multifunction electrode pads to the patient.
3. Turn the Mode Select knob to AED.
4. Follow the screen and voice prompts.
5. Press the Shock button, if prompted.
External paddles
Alarm lamp
Mode Select
button
Navigation knob

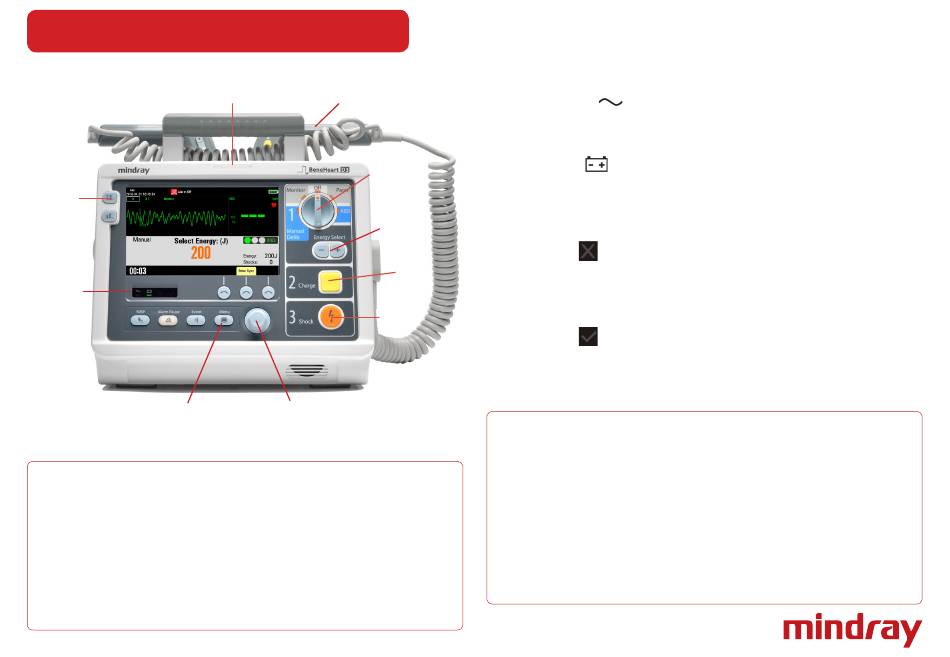

Defibrillator/Monitor Quick Reference Guide
Indicators are described from left to right:
AC power indicator
Illuminated: when AC mains is connected.
Off: when AC mains is not connected.
Battery indicator
knob
Yellow: when the battery is being charged.
Green: when the battery is fully charged or the equipment is run on battery.
Energy
Select
Off: when no battery is installed or battery fails.
knob
Status indicator
Charge
Flashing: when a failure is detected, or when battery is not installed if No
button
Battery is configured as Status Indicator ON.
Shock
Off: when the equipment operates properly.
Status indicator
Illuminated: when AC mains is connected, and the equipment operates
properly.
1. Plug the therapy cable in the equipment's therapy port.
2. Apply multifunction electrode pads or external paddles to the patient.
3. Turn the Mode Select knob to Manual Defib.
4. Select energy if necessary.
5. Press the Charge button on the front panel or external paddles.
6. Press the Shock button on the front panel or external paddles.
Manual Defibrillation
