Mindray BeneHeart Series Quick Reference Manual

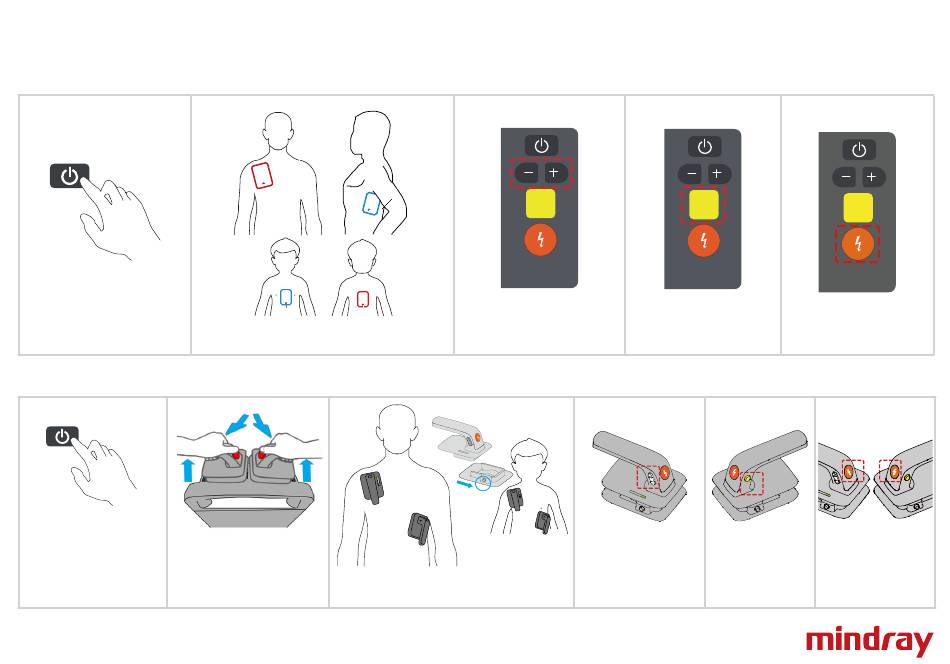

Use electrode pads for manual defibrillation
① ②
Press the power switch,
and then select Defib/
Pacer quick key for manual
defibillation procedures.
Use external paddles for manual defibrillation
① ②
Press the power switch,
and then select Defib/
Push forward on both
Pacer quick key for
handles with force and
manual defibillation
lift external paddles out.
procedures.
BeneHeart Series Defibrillator/Monitor Quick Reference Guide
(for BeneHeart D60/D50A/D50/D50C/D30/D20A/D20/D20C)
Attach the electrode pads to the patient
as illustrated in the picture.
③
Attach the external paddles to the
patient as illustrated in the picture.
③ ④
If necessary, press the
Energy Selection button Press the Charge button
on the front panel.
④
If necessary, press
the Energy Selection
button on the
external paddles.
⑤
Press the Shock button
on the front panel. on the front panel.
⑤ ⑥
Press the Charge
button on the simultaneously the
external paddles. external paddles.
Press the
Shock buttons
