  • Page 2 Short guide edition The Evita 4 is identical to the Evita 4. Both devices have identical components, options and functionalities. This refers to all electrical, electronic and pneumatic March 2020, Lübeck components as well as to the trolley, the installed software and the available options.
  • Page 3 Evita 4/4 edition – System overview © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 4 Evita 4/4 edition – Short guide This Evita 4/4edition short guide is intended for informational purposes only. It is not a replacement or substitute for the Instructions for Use. The completion of this guide does not relieve you from reading and understanding the current versions of the instructions for use associated with the relevant device.

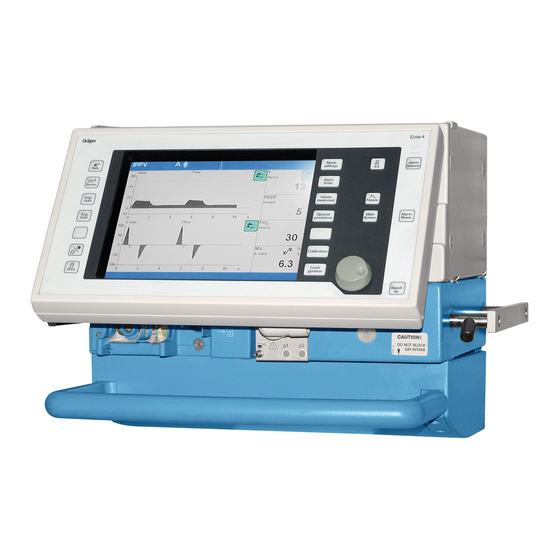

  • Page 5 Evita 4/4 edition – System overview Control panel Screen Fixed function keys: − Mode settings − Alarm limits Routine functions: − Measured values − Nebuliser − Special procedure − O2 suction − − Insp. Hold/manual Inspiration − Calibration − Exp. Hold −...
  • Page 6 Evita 4/4 edition – System overview Back panel COM 2, COM 3 ports for Power switch ON/OFF RS 232, 2 CAN interfaces with protective flap and analog interface (optional) Connection for nurse call (optional) DC socet Cooling-air filter Connector for power cable...
  • Page 7 Evita 4/4edition – Operating concept © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 8 Evita 4/4 edition – Operating concept On-screen controls The lower half of the screen contains touch-sensitive coloured screen keys. Touching these controls with the fingertip is equivalent to pressing key. The colour displays the status of the "control" and "LEDs":...
  • Page 9 Evita 4/4 edition – Operating concept Screen keys for selecting functions without confirmation e. g. for: − paging through the system on-screen − for changing the menu − for switching over displays Example: Press the Table key = select display.
  • Page 10 Evita 4/4 edition – Operating concept Screen keys for function selection, adjustment and confirmation Touch the relevant screen key for the alarm limits, e. g.: MV The colour changes from green to yellow = setting function is set 2. Turn the rotary knob = adjust the alarm limit The value is displayed in the screen key 3.
  • Page 11 Evita 4/4 edition – Operating concept Screen knobs for setting parameters e. g. »PEEP« screen knob Touch the »PEEP« screen key: It changes the colour from green to yellow = setting function selected 2. Turn the rotary knob to adjust the setting The value is displayed in the key 3.
  • Page 12 6. Help functions appear in the bottom line of the screen. On the right, Evita 4/4 edition provides setting instructions. On the left, Evita 4/4 edition provides information on the current status – this information can be accessed by pressing key »i«.
  • Page 13 Evita 4/4 edition – Operating concept To select other curves, touch the key and touch the screen key corresponding to the desired curve To select other measured value combinations touch the screen key repeatedly To select another ventilation mode press Mode settings...
  • Page 14 Evita 4/4 edition – Preparation © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 15 To switch on the machine press power switch on the back panel until it clicks into position. Evita 4/4 edition runs through its self-test procedure, wait until the 10-second test phase is complete. After the self-test: Switch Evita 4/4 edition to Standby: press the key for about 3 seconds 2.
  • Page 16 The device check must be carried out before each use on a patient Evita 4/4 edition supports this device check by means of a built-in in order to confirm that the checklist that guides the user through the test in a dialogue ventilator is operating correctly.
  • Page 17 Evita 4/4 edition starts running through the dialogue-oriented check. The check procedure is semi-automatic. During the device check, the user is instructed by Evita 4/4 edition to perform specific actions on the device. After successful completion of the device check, and checking the optional DC power supply unit, Evita 4/4 edition is ready for operation.
  • Page 18 Evita 4/4 edition – Preparation Check hose system Checking the hose system for leaks The hose system is tested for leaks during the device check but must also be monitored independently of the device check, e. g. after changing the hose system.
  • Page 19 Evita 4/4 edition – Starting up © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 20 To start ventilation press the rotary knob again. Evita 4/4 edition starts ventilation with the ventilation mode configured by the user. The machine is factory-set to IPPV (Intermittent Positive Pressure Ventilation). Evita 4/4 edition displays the Mode settings screen page.
  • Page 21 Evita 4/4 edition – Starting up Ideal Body Weight (IBW) Ideal Body Weight — automatic adjustment Ideal The following parameters are automatically set: body weight .530 − FiO , PEEP, I:E, etc. (pre-configured, independent of IBW) 6.4 L/min − MV, VT, RR, Ti (based on IBW) B.W.
  • Page 22 Evita 4/4 edition – Starting up Change ventilation mode Change ventilation mode 1. To select another ventilation mode press Mode settings 2. Touch the relevant screen key 3. Adjust value by turning the rotary knob 4. Confirm the setting by pressing rotary knob.
  • Page 23 Evita 4/4 edition – Alarms © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 24 Evita 4/4 edition – Alarms Setting alarm limits 1. Press key Alarm limits The display screen displays all the adjustable alarm limits 2. Touch the relevant screen key; the key changes the colour from green to yellow. 3. Set the alarm limit by turning the rotary knob; confirm by pressing the rotary knob.
  • Page 25 3. Press Alarm Reset key. 4. The message is erased from the screen. However, it is stored in Evita 4/4 edition and can be displayed with the logbook function in the Alarm limits screen page © Drägerwerk AG & Co. KGaA, 2019...
  • Page 26 Evita 4/4 edition – Cleaning, disinfection, and sterilization © Drägerwerk AG & Co. KGaA, 2019 © Drägerwerk AG & Co. KGaA, 2019...
  • Page 27 Evita 4/4 edition – Cleaning, disinfection, and sterilization Safety information on reprocessing WARNING Risk of infection or damage to device Clean, disinfect, and sterilize the device and accessories using validated processes. CAUTION Risk of infection If reusable medical devices are not reprocessed, there is an increased risk of infection to both hospital staff and patients.
  • Page 28 Evita 4/4 edition – Cleaning, disinfection, and sterilization Dismantling Before dismantling − Switch off the ventilator and humidifier, and remove their power plugs. − Drain the water traps and ventilation hoses. − Drain the water container of the humidifier. © Drägerwerk AG & Co. KGaA, 2019...
  • Page 29 (2) Remove the the port on the device; (2) Dismantle the from the Y-piece.; (3) Remove the catheter cone connector from the back of the Evita 4/4 medication nebuliser from the adult medication nebuliser from the paediatric hose from the cuvette;...
  • Page 30 Reusable expiration valve: If using Reusable expiration valve: Only strip (7) Push the flow sensor to the left connector at the back of Evita 4/4 to the right while at the same time down the expiration valve if badly the reusable expiratory valve, as far as it will go and (8) pull out;...
  • Page 31 Evita 4/4 edition – Cleaning, disinfection, and sterilization Reprocessing procedures Classification of medical devices For reprocessing, medical devices and their components are divided by type of application and the resulting risk: − Uncricital medical devices: surfaces accessible to users and patients, e.g., device surfaces, cables −...
  • Page 32 Evita 4/4 edition – Cleaning, disinfection, and sterilization Reprocessing procedures Manual disinfection Perform manual disinfection preferably with disinfectants based on aldehydes or quaternary ammonium compounds. For choosing the appropriate disinfectant, observe country-specific lists of disinfectant. Strictly observe the manufacturer’s instructions for using disinfectants. The composition of disinfectants may change.
  • Page 33 Evita 4/4 edition – Reprocessing list Applicable to non-infectious patients. The reprocessing list contains approximate values only. The instructions of the hospital’s infection control officer responsible have priority. Components which can be reprocessed Recommended Pre-cleaning Machine cleaning Manual cleaning Manual disinfection...
