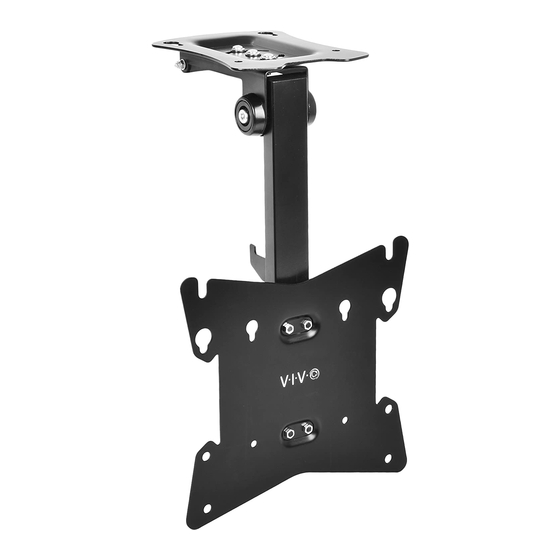

Flip Down Ceiling TV and Monitor Mount
Instruction Manual
SKU: MOUNT-M-FD37B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-m-fd37b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-M-FD37B
Summary of Contents for Vivo MOUNT-M-FD37B
- Page 1 Flip Down Ceiling TV and Monitor Mount Instruction Manual SKU: MOUNT-M-FD37B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-m-fd37b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for concrete ceilings as well. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303...
- Page 3 ASSEMBLY STEPS STEP 1 Push arm against ceiling plate of Mount (A) to release lock and rotate the arm. Pressed Push STEP 2 Using 4mm Allen Wrench (B), loosen the bolts to the VESA plate height adjustment so the VESA plate can freely move.
- Page 4 STEP 3 OPTION A: Wood Beam Ceiling Hold mount (A) to mounting surface and mark drill holes with pencil. Drill 2.5” (64mm) deep holes using a 1/8” (3mm) drill bit. Insert screws (W-A) into front two holes, leaving 3mm of thread exposed. Slide mount onto front two screws.
- Page 5 STEP 3 (Continued) OPTION B: Concrete Ceiling Hold mount (A) to mounting surface and mark drill holes with pencil. Drill 2.5” (64mm) deep holes using a 5/16” (8mm) drill bit. Insert anchors (W-B). Insert screws (W-A) into front two holes, leaving 3mm of thread exposed.
- Page 6 STEP 4 Loosely install screws (M-A through M-D) depending on your TV’s needs. Leave about 0.25” (6mm) sticking out of the TV. STEP 5 Install the TV onto the Mount (A) using the keyholes. Install the remaining two screws (M-A through M-D).
- Page 7 STEP 6 Option Tighten VESA plate height adjustment bolts using the 4mm Allen Wrench (B) once positioned at desired height. Adjust swivel hinge with 6mm Allen Wrench (C). Push the TV all the way up to the ceiling to engage the lock, securing the TV in the raised position. Push up again to disengage the lock and lower the TV.
