Do you have a question about the Super Fuzz and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog Super Fuzz

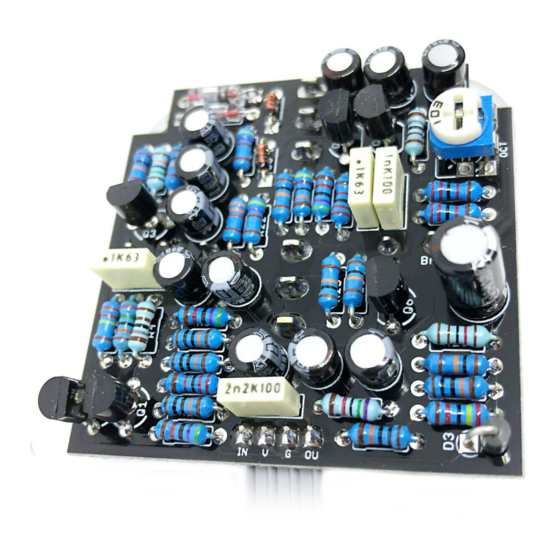

  • Page 1 Super Fuzz Shin-Ei’s utterly uncompromising monster Contents of this document are ©2018 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
  • Page 3 Schematic + BOm 470R 100k 100k Q1-6 2N5088** 470k 470R D1,2 1N34A 100n 1N4001 D4,5 1N4148*** 150k 100k (750k) (75k) 10k TRIm 220k (24k) 100n 50kB (1k2) 50kB 100k 100k 2n2* TONE SPDT ON-ON 100k 100u DIODE SPDT ON-ON Alternative values shown in blue are from the Wattson EFY-6 version of the Superfuzz, giving higher output. *sometimes shown as 1n **any low-ish gain NPN silicon transistors can be experimented with, i.e.
  • Page 4 The power and signal pads on the PCB conform If you aren’t adding the diode selection switch to the FuzzDog Direct Connection format, so can you’ll have to jumper the correct pads as shown be paired with the appropriate daughterboard for above depending on whether you’re using D1-2...
  • Page 5 Test the board! Check the relevant daughterboard document for more info before you undertake this stage. UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
  • Page 6 Wire it up (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD BOARD BOARD BATTERY Wiring shown above will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. The Board GND connections don’t all have to directly attach to the board.
  • Page 7 Wiggle room = good! 32mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
