Summary of Contents for FuzzDog Super Fuzz

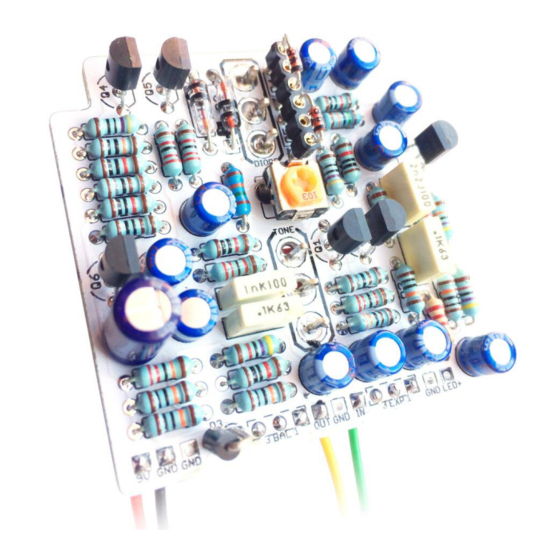

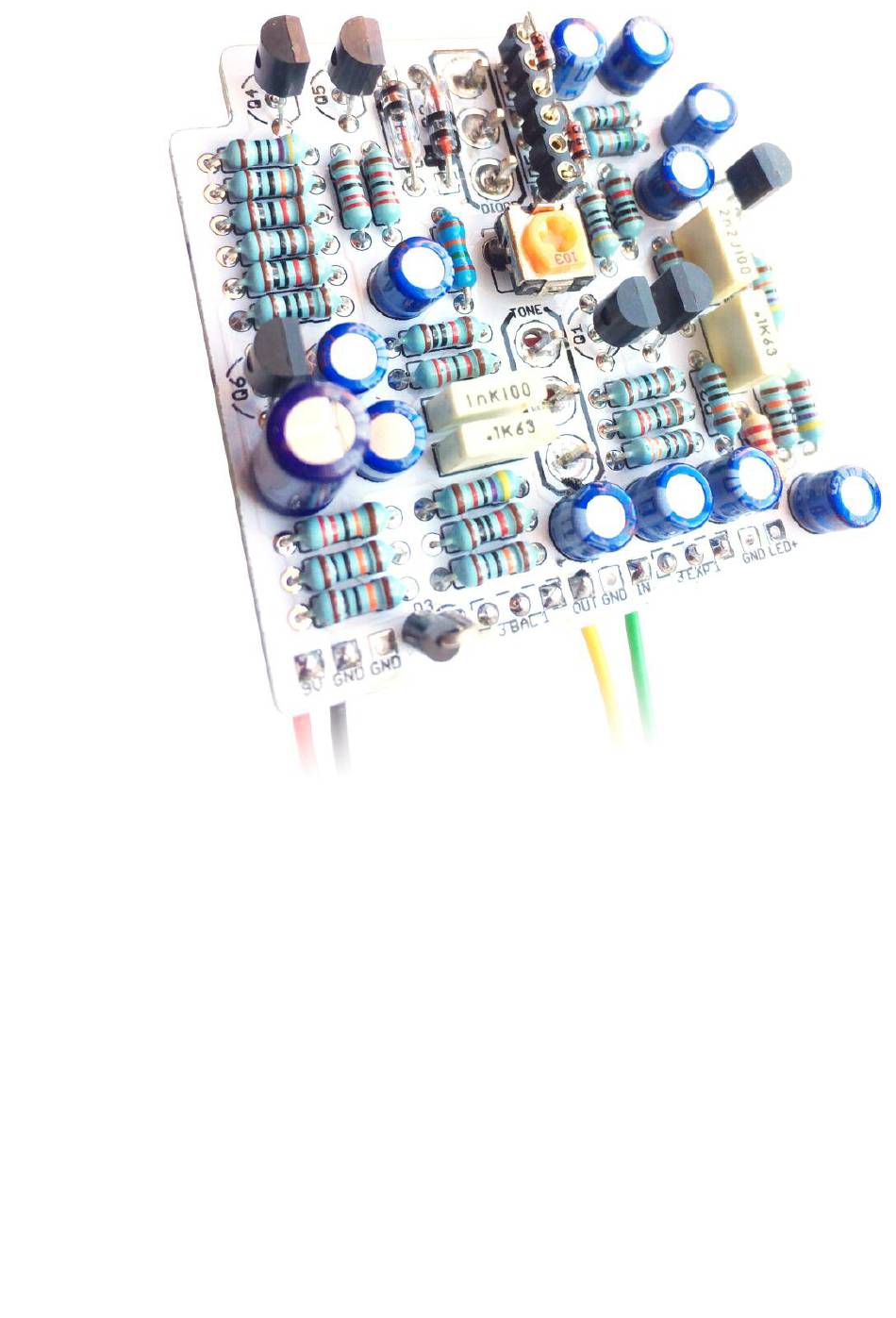

- Page 1 Super Fuzz Uncompromising Octave Fuzz PedalParts.co.uk...
- Page 2 Schematic 470R 100K 100K Q1-6 2N5088** 470K 470R D1,2 1N34A 100n 1N4001 D4,5 1N4148*** 150K 100K (750K) (75K) 10K TRIM 220K (24K) 100n 50KB (1K2) 50KB 100K 100K CLR (2K2) 2n2* TONE SPDT ON ON 100K 100u DIODE SPDT ON ON Alternative values shown in blue are from the Wattson EFY-6 version of the Superfuzz, giving higher output.
- Page 3 Wiring shown overleaf will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. Snap the little metal tag off the pots to mount them flush in the box. You should use some kind of heat sink on the legs of the transistors and diodes when soldering.
- Page 4 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 5 Wire it up BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD BATTERY The Board GND connections don’t all have to directly attach to the board. You can run a couple of wires from the DC connector, one to the board, another to the IN jack, then daisy chain that over to the OUT jack.
