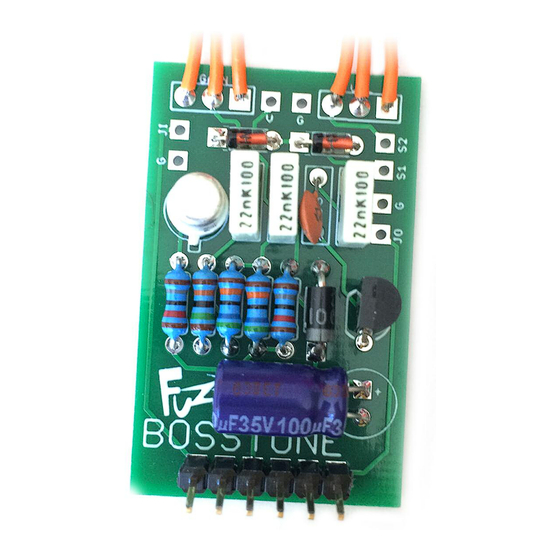

FuzzDog FuzzPup BossTone Manual

FuzzDog FuzzPup BossTone Manual

An all-time classic fuzz by jordan

Advertisement

Quick Links

BossTone
An all-time classic
fuzz by Jordan
Contents of this document are ©2016 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FuzzPup BossTone and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog FuzzPup BossTone

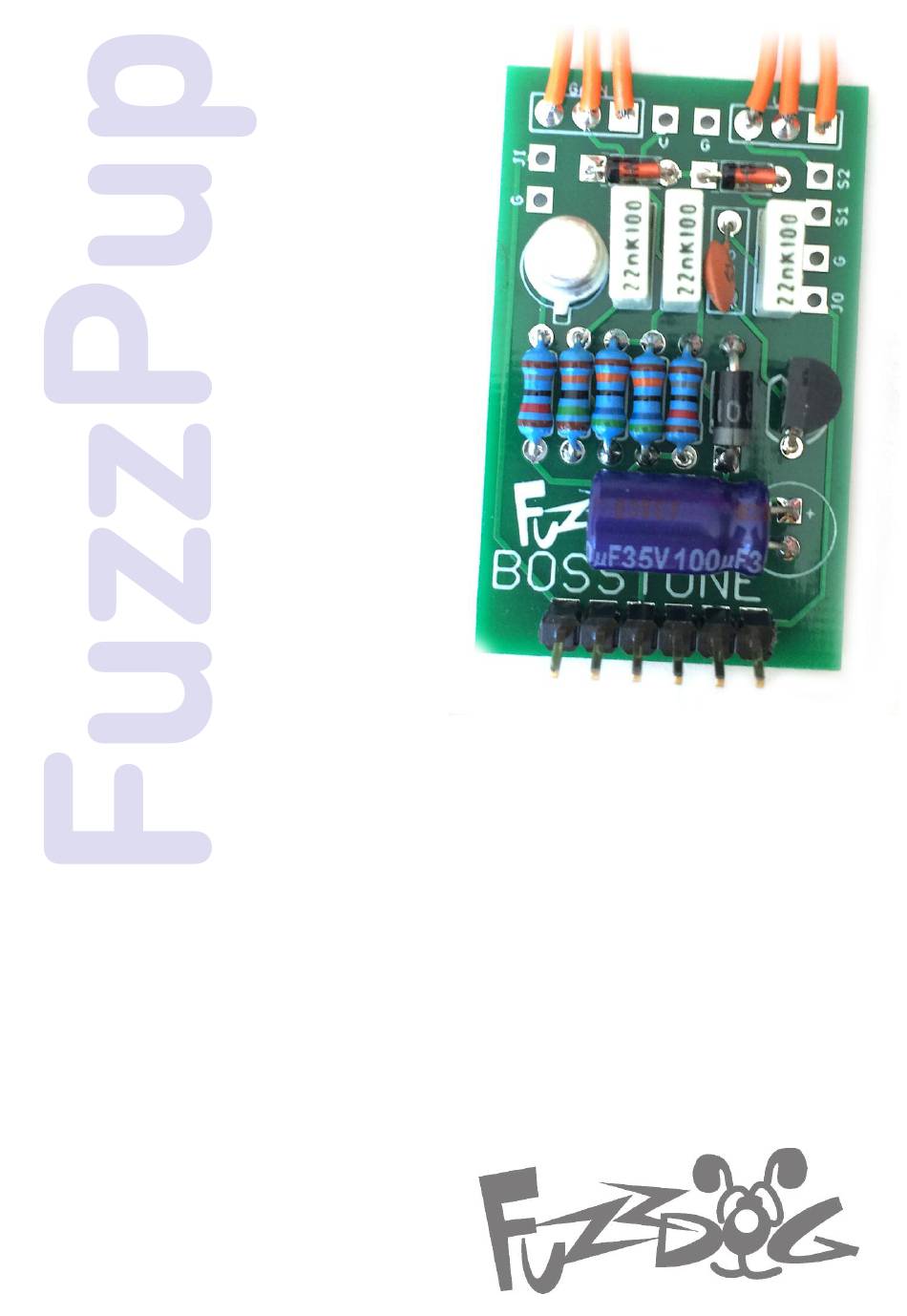

  • Page 1 BossTone An all-time classic fuzz by Jordan Contents of this document are ©2016 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 IMPORTANT Before you start... Grab the general build doc that covers all FuzzPup builds. Most of the information you need for this build is in there. Read it? OK, carry on. uzzPups Lovely little boxes of joy with a totally standardised build pattern Contents of this document are ©2016 Pedal Parts Ltd.
  • Page 3 Schematic + BOM 150K 2N2222 560K 2N3906 560K D1,2 1N4148 47u elec 1N4001 GAIN 100KB 100KA We’ve included pads S1 and S2 so you can easily add a switch to take the clipping diodes out of the circuit. For a stock build you should place a jumper between these pads - see next page.
  • Page 4 For a stock build you should place a jumper as shown.
  • Page 5 Optional clipping switch If you take the clipping diodes out of the circuit you get a completely different crunchy beast. It’s certainly worth trying the circuit without them - test it before you add the S1-S2 jumper. If you want to add a switch to take them in and out, simply wire up a SPST or SPDT toggle as shown.
  • Page 6 FuzzDog co uk...
