Contents Preliminary note Legal and copyright information ................... 4 Symbols used ........................4 Warnings used ........................5 Modification history ......................5 Safety instructions General ..........................6 IT security ..........................6 Required background knowledge ..................6 Functions and features Function IO-Link ..........................
Page 3
Connecting switching outputs ....................16 Connecting the device .......................16 Set-up Initial installation .........................17 Mounting and connecting the AIK001 ................17 Connecting the IO-Link devices ..................18 Starting the ifm cloud ......................18 Fault detection Maintenance, repair and disposal 10.1 Cleaning process .......................20 10.2 Firmware update ........................20...
> Warnings used 58278 WARNING Warning of serious personal injury. Death or serious irreversible injuries may result. CAUTION Warning of personaly injury. Slight reversible injuries may result. NOTICE! Warning of damage to property > Modification history 34492 Version Topic...
Safety instructions Content General ..............................6 IT security ..............................6 Required background knowledge ......................6 28333 > General 58525 • The device described is a subcomponent for integration into a system. The manufacturer is responsible for the safety of the system. The system manufacturer undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system.

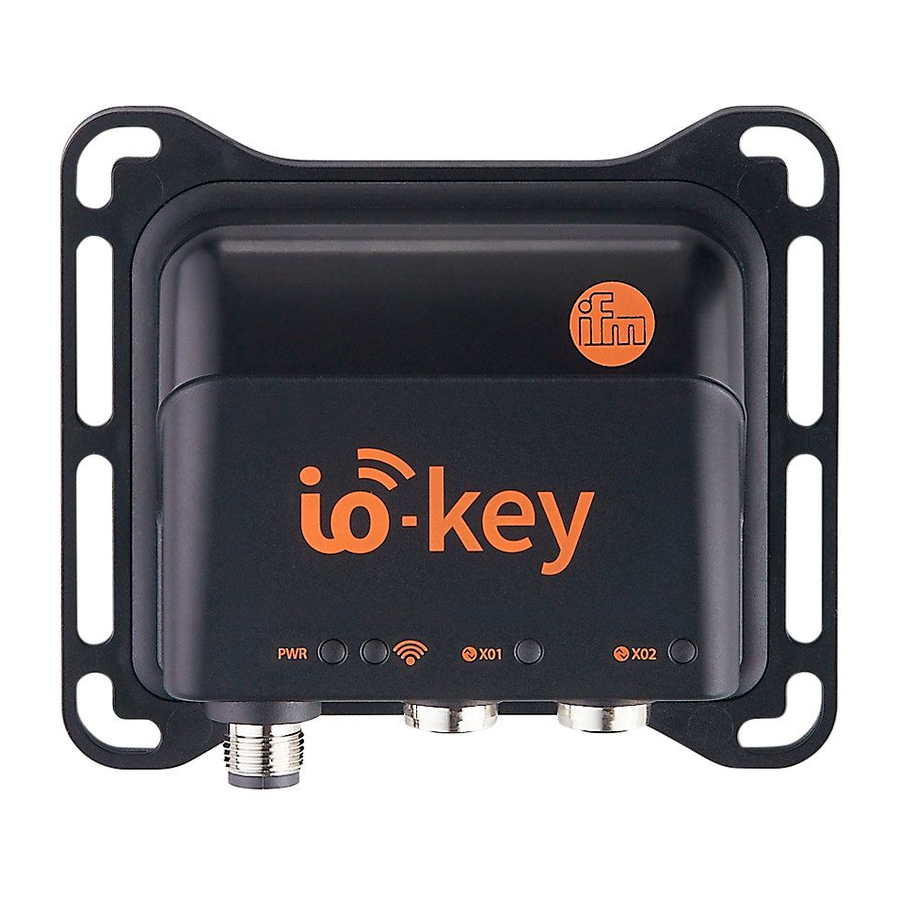

IO-Link master to operate IO-Link devices • as mobile radio gateway between IO-Link devices and the ifm cloud The device is designed for use outside of a control cabinet. ► Only use the device within the limits of the technical data (→...
Page 8
> 4.1.1 IO-Link supply 59395 The device has 2 supplies for IO-Link devices. Every supply provides short circuit monitoring. > Gateway 59396 The device provides the process data of the connected IO-Link devices via mobile radio in the ifm cloud.
SIM card 59401 Transfer of data from the AIK001 to the ifm.cloud takes place via an integrated SIM card (eSIM). The customer is neither entitled to remove the integrated SIM card from the device, to sell the chip card itself, to act as a provider of telecommunication services nor to offer mobile radio services, switching or interconnection services to third parties.
The function can be configured via the ifm cloud and loaded to the AIK001 via mobile radio. The configured alarms are processed directly on the AIK001, irrespective of the connection to the ifm cloud.
Page 11
4.6.1 Edge threshold function 59406 The user can define a switching point (SP) and a reset point (rP) for a hysteresis. Hysteresis Switch-on delay Switch-off delay Further setting options: • Output function as normally closed - FNC or normally open - FNO) •...
Page 12
4.6.2 Edge window function 59407 The user can define 2 switching points (SP1, SP2) as window area. Further setting options: • Output function as normally closed (FNC) or normally open (FNO) • separate switch-on and switch-off delay...
Operating and display elements Content LED indicators ............................13 34063 > LED indicators 34047 The device only has the following LED indicators: > 5.1.1 Voltage supply 59408 The "Power" LED indicates the status of the voltage supply: Status LED Description...
Mounting Content Installing the device ..........................14 34058 > Installing the device 59411 ► Disconnect power before installation. ► Use a plane mounting surface for installation. ► When mounting the device, observe the minimum distance between the device and the user: 20 cm ►...
Electrical connection Content Connecting IO-Link devices........................15 Connecting switching outputs .........................16 Connecting the device ..........................16 59412 The unit must be connected by a qualified electrician. ► The national and international regulations for the installation of electrical equipment must be adhered to.
> Connecting switching outputs 59414 Optional: Connect the switching outputs DQ1 (Pin 2 ) and DQ2 (Pin 4) of the "power" port with actuators. A digital switching output can switch max. 200 mA. > Connecting the device 59415 The device has a current rating of 2000 mA.
Enter the IMEI number and your customer number (please refer to the device and the delivery note). > ifm will set up your cloud access based on this data. > ifm sends a confirmation message about successful activation to the customer.
Page 18
IO-Link port, the AIK001 sends for five minutes in the transmission interval variant L (1x / 10 seconds) to facilitate the set-up of the IO-Link devices. If this function is abused, ifm electronic reserves the right to deactivate the device account in the ifm cloud and to discontinue the provision of services.
Fault detection 59422 Fault description Cause of the fault Fault handling Status LED "Power” is not on ► no supply voltage is applied or the Check the voltage supply. applied supply voltage is too low ► error in the mobile network connection Change the location of the AIK001.
There is no data transmission between the device and the ifm cloud. ► Take corresponding measures. New firmware files are available in the download area of the ifm website. ► Download new firmware. The firmware of the device is updated via the ifm cloud.
Approvals and standards 59424 The EC Declaration of Conformity, approvals and country-specific certificates are available at: → www.ifm.com > Product page of the AIK001 > [Downloads] > Certificates...
Page 23
Accessories 33870 List of accessories of AIK001: → www.ifm.com > Product page > Accessories...
Page 24
Appendix Content Security ..............................25 Invoicing..............................26 Contract terminations or amendments ....................28 Operation of the servers and system components .................29 Service availability ..........................30 33879...
Page 25
The mobile access point (APN) defines the way how the AIK001 connects to the mobile radio network. The AIK001 connects itself via the APN with the M2M/IoT application in the ifm cloud. Each AIK001 receives a dedicated private IP address from the mobile operator network.
Page 26
A user is a person or external system authorised to access protected resources within Cumulocity. Access is controlled by means of authorisations. Authorisations define what a user may do in ifm cloud applications. To make it easier to administer the authorisations, they are grouped in "roles".
Page 27
14.2.1 Hardware 59434 The physical device AIK001 is invoiced in analogy to the standard sales process of ifm products. The invoice will be issued directly after the product is purchased. You will find detailed information in the Terms and Conditions.
Page 28
> 14.3 Contract terminations or amendments 59436 To change or cancel the services, please contact customer service in writing at: support@io-key.ifm You will find further information on contract termination in the Terms and Conditions.
Page 29
(e.g. defence against hacker attacks or viruses or worms) can be carried out at any time, even without prior notice, to ensure fastest possible protection. The times attributable to maintenance windows used by ifm and its service providers are not included in the calculation of availability (→...
• if they result from the use of hardware, software or services that are not provided by ifm, including issues attributable to insufficient bandwidth •...
Page 31
> 14.5.3 Changes 59443 This Service Level Agreement is subject to change. ifm will inform the customer and the user of any changes to this agreement within a reasonable period.
Page 32
Set-up ....................17 edge alarm function ................10 SIM card....................9 Edge switching function ................. 10 Starting the ifm cloud ................18 Edge threshold function ................. 11 Supported mobile radio standards ............9 Edge window function ................12 Symbols used ..................4 Electrical connection ................
