Operating instructions
Flow monitors
UK

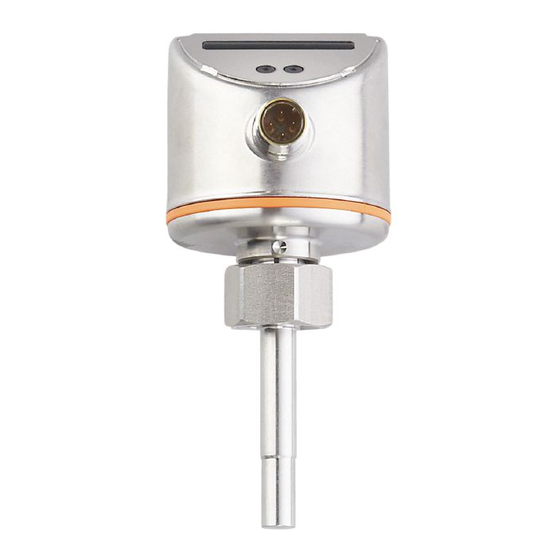

SI500A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI500A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM SI500A

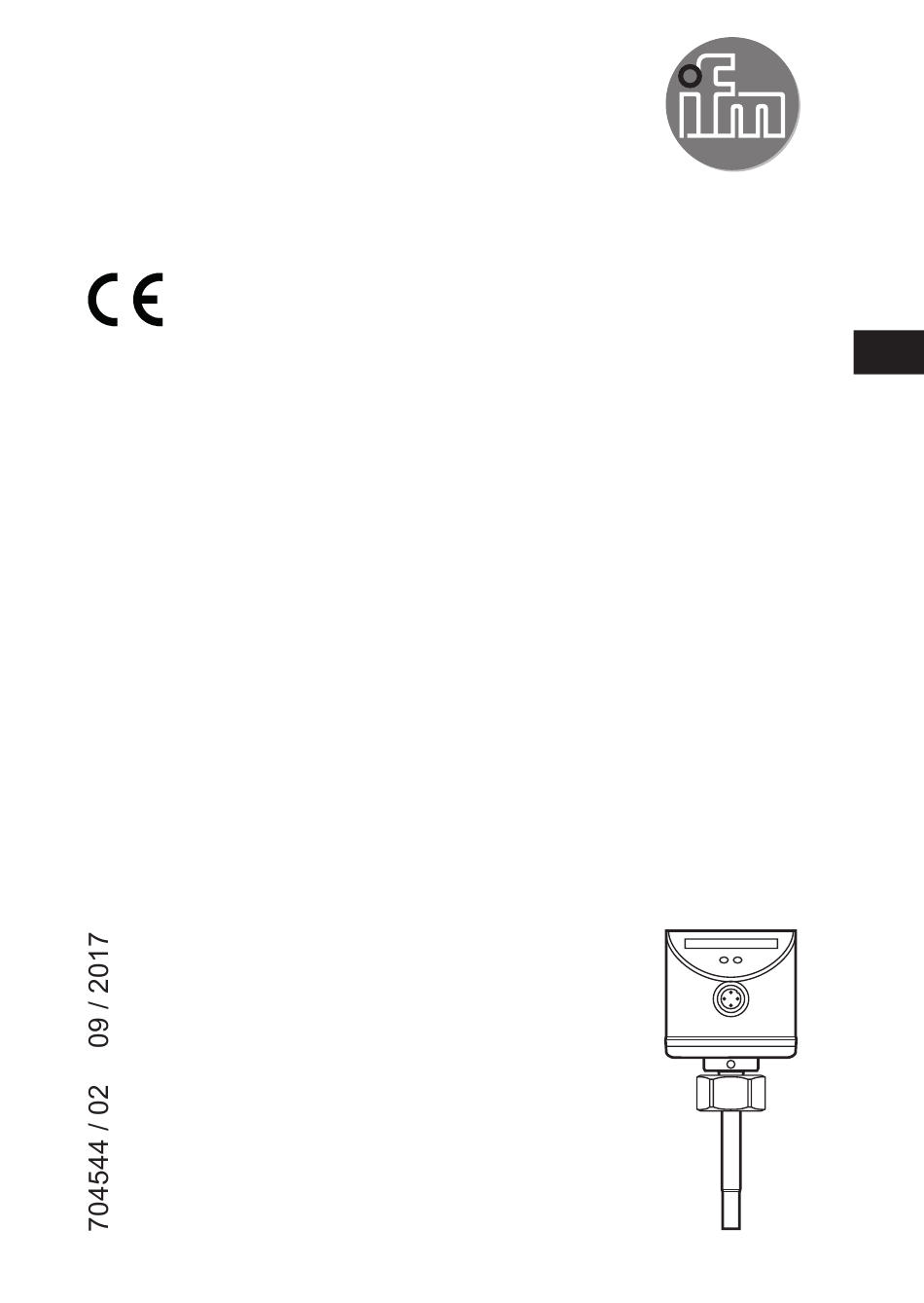

  • Page 1 Operating instructions Flow monitors SI500A...
  • Page 2: Table Of Contents

    Contents 1 Safety instructions ������������������������������������������������������������������������ 3 2 Functions and features ����������������������������������������������������������������� 4 2�1 Application area ������������������������������������������������������������������������ 4 2�2 Operating principle flow monitoring ������������������������������������������� 4 3 Installation ������������������������������������������������������������������������������������ 5 3�1 Installation location �������������������������������������������������������������������� 5 3�2 Sources of interference in the pipe system ������������������������������� 6 3�3�...
  • Page 3: Safety Instructions

    Preliminary note • An instruction is indicated by “►”: Example: ► Check whether the unit operates correctly. • A reaction to the action is indicated by ">": Example: > LED 9 lights. 1 Safety instructions • Please read the product description prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 4: Functions And Features

    2 Functions and features 2.1 Application area The unit monitors the flow of liquid and gaseous media� 2.2 Operating principle flow monitoring • The unit detects the flow speed to the calorimetric measuring principle and switches the output: - output closed if medium is flowing / output open if no medium is flowing� This applies to the unit on delivery: output = normally open.
  • Page 5: Installation

    • Adapters have to be ordered separately as accessories� A correct fit of the unit and ingress resistance of the connection are only ensured using ifm adapters� • For small flow rates ifm adapter blocks are available� 3.1 Installation location General •...
  • Page 6: 3�2 Sources Of Interference In The Pipe System

    3.2 Sources of interference in the pipe system Components integrated in the pipes, bends, valves, reductions, etc� lead to turbu- lence of the medium� This affects the function of the unit� Recommendation: Adhere to the distances between sensor and sources of interference: 5...10 x D 3...5 x D...
  • Page 7: Electrical Connection

    Voltage supply to EN 50178, SELV, PELV� ► Disconnect power. ► Connect the unit as follows: 3 BU Core colours of ifm sockets: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) 5 Operating and display elements Flow...
  • Page 8: Set-Up And Settings For Water

    6 Set-up and settings for water (For media other than water → 7.1: Low flow adjustment). ► Switch on the supply voltage� > All LEDs light and go out again step by step. During this time the output is closed (if configured as normally open)� The unit is in the operating mode� ►...
  • Page 9: 6�2 High Flow Adjustment (Optional)

    6.2 High flow adjustment (optional) The unit determines the existing flow as normal flow and adapts the display repre- sentation (all LEDs except the switch point LED light green). ► Let the normal flow circulate in the installation� ► Press the pushbutton and keep it pressed�...
  • Page 10: 7�3 Restore The Factory Setting (Reset)

    7.3 Restore the factory setting (reset) ► Press the pushbutton for at least 15 s� > LED 9 lights, after approx. 5 s it flashes. > After approx. 15 s LEDs 0...9 flash orange. ► Release the pushbutton. All settings are reset to the factory setting: - operating area: 5 ...100 cm/s for water - switch point: LED 7 - output function: NO...
  • Page 11: Operation

    9 Operation After every power on all LEDs light and go out again step by step (during this time the output is closed if configured as normally open)� The unit is then ready for operation� In case of power failure or interruption all settings remain� Operating indicators Green LED bar: Current flow within the representa- tion range�...
  • Page 12: Scale Drawing

    11 Scale drawing 1: LED bar display 2: set button 3: tightening torque 25 Nm 12 Technical data Application area ����������������������������������������������������������������������������������������Liquids and gases Operating voltage [V] ����������������������������������������������������������������������������������������19 ... 36 DC Current rating [mA] ����������������������������������������������������������������������������������������������������������250 Short-circuit protection, pulsed; reverse polarity / overload protection Voltage drop [V] �������������������������������������������������������������������������������������������������������������<...
  • Page 13 EN 61000-4-4 Burst: ����������������������������������������������������������������������������������������������������� 2 kV EN 61000-4-6 HF conducted: ��������������������������������������������������������������������������������������� 10 V to EN50178, SELV, PELV; for water; 5...100 cm/s; 25°C (factory setting) for water; 5...100 cm/s; 10...70°C The sensor conforms to the standard EN 61000-6-2 More information at www�ifm�com...
