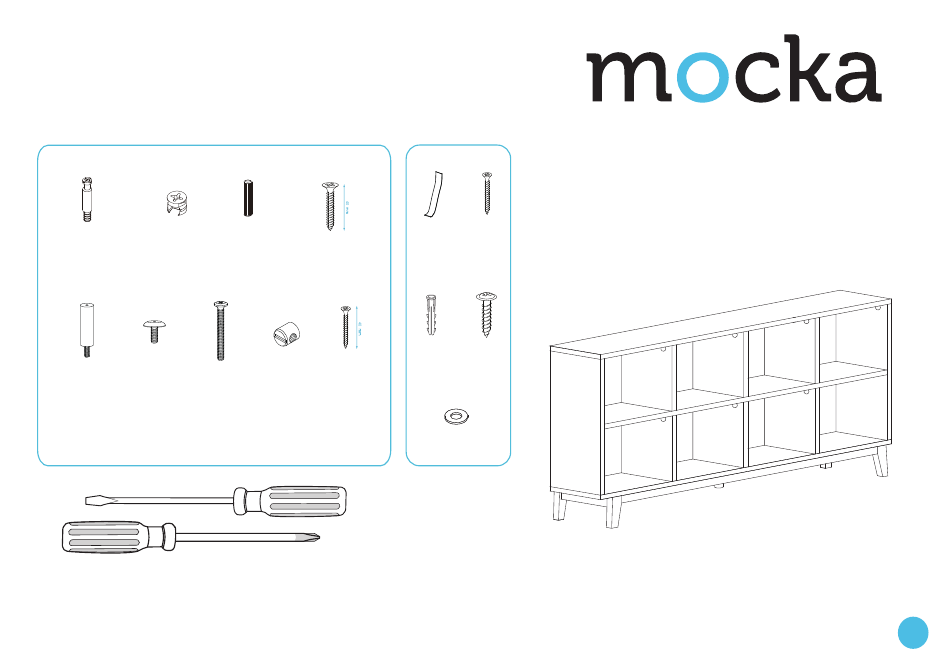

Watson 8 Cube Storage Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
locking
x20
nut x20
E
F
shelf
long
screw x4
plug x1
screw x1
Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
D
dowel
long screw
x36
x24
I
G
H
long
nut
long screw
x4
x4
WARNING:
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x2
x 2
X
Y
wall
screw
anchor
x2
x2
Z
washer
x2
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential to tip
1
